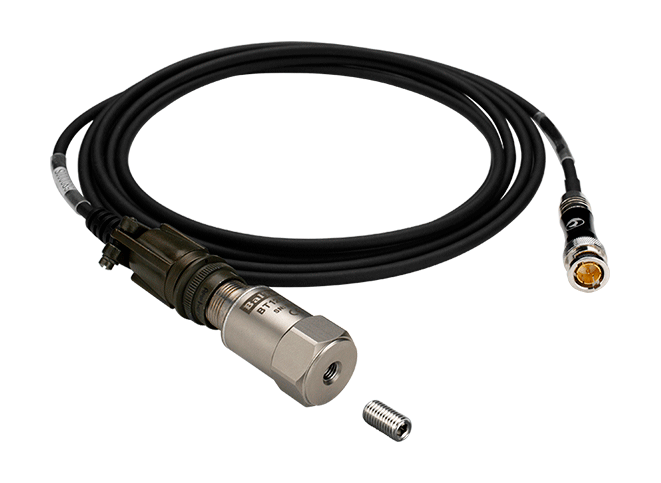

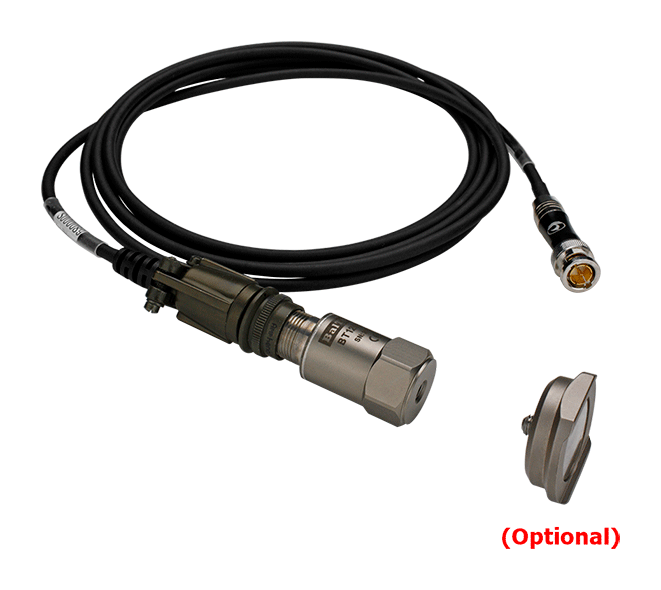

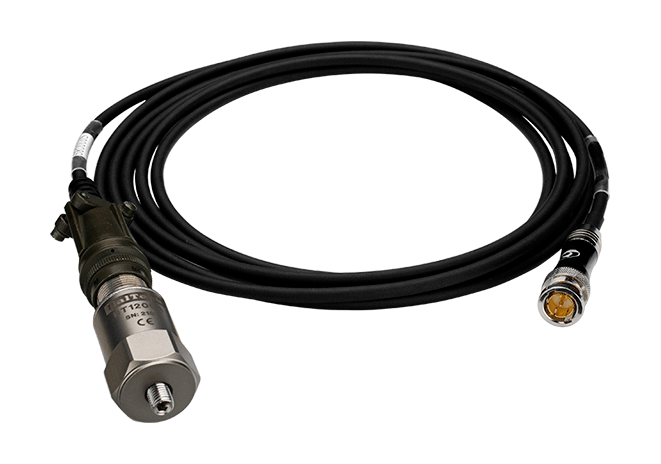

iSN-701-F15-L030 is a high sensitivity accelerometer, and it is also a homotaxial IEPE accelerometer. This sensor is designed primarily for vibration analysis applications.
| Vibration Measurement | |
|---|---|
| Axes | 1 |
| Sensor Type | IEPE |
| Amplitude Range | ±80g |
| Frequency Range | 0.5Hz~15kHz |
| Sensitivity | 100mV/g |
| Bais Voltage | 10~14VDC |
| Power | |
|---|---|
| Input Range | 18~30VDC, 2~10mA |
| Mechanical | |
|---|---|
| Dimensions (mm) | 22.9 x 53.3 |
| Cable | |
|---|---|
| Length | 3m |
