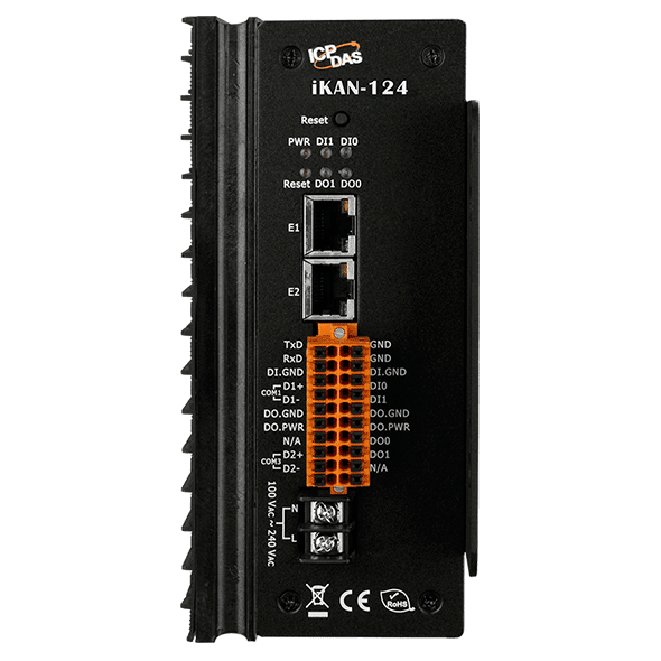

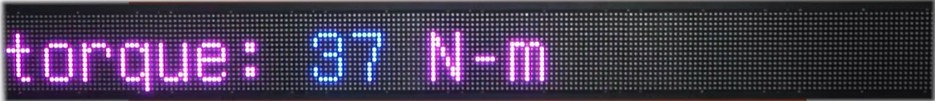

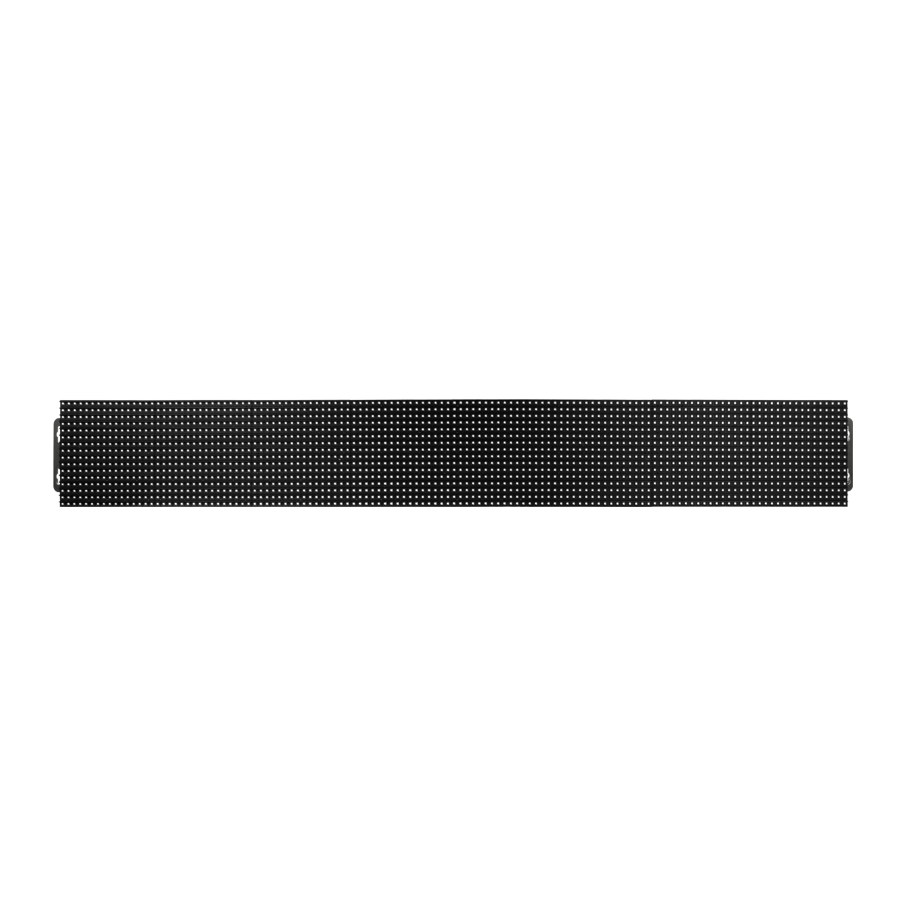

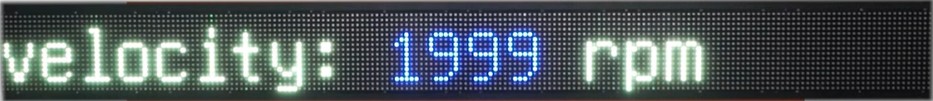

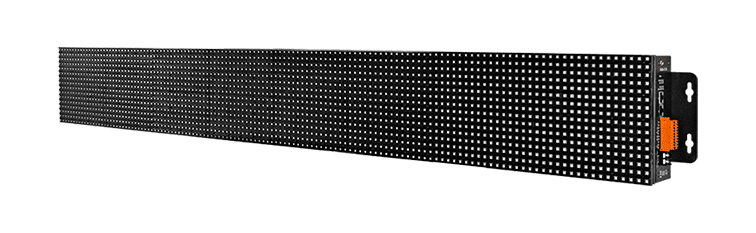

The iKAN-124 is an industrial-grade, LED display device, designed to format messages up to 12 Unicode characters or 24 ASCII in a single line. It can be changed easily changed into multiple languages or up to seven different colors. Equipped to support RTU and TCP protocols that can easily be integrated into any existing PLC and SCADA environments. Data written from a PC or a PLC displays in a formatted message in real-time. Messages can be edited and enabled/disabled using a standard web browser or a mobile device.
Display
Color
Red, Blue, Yellow, Green, Light Blue, Purple or White
Character Sets
16-bit Unicode or 7-bit ASCII
Display Size
ASCII
24 Characters
Unicode
12 Characters
Message Pool
64 common messages and 10 instant messages
Up to 40 Unicode characters or 100 ASCII characters each
Data Pool
40 Coils, 64 Float values, and 64 Integer values
RTC (Real-time Clock)
RTC (Real-time Clock)
Ethernet
Port
1 x RJ-45, 10/100 Base-TX
Protocol
Modbus TCP Slave, Max. 8 connections
Configuration
Web-based User Interface
COM Port
Port
1, RS-232 or RS-485
Baudrate (bps)
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format
N81, E81, O81
Protocol
Modbus RTU Slave
Power
Input Range
110 ~ 220 VAC
Consumption
0.3 A @ 110 VAC, 0.15 A @ 220 VAC
Mechanical
Dimensions (W x H x D)
1986 mm x 160 mm x 49 mm
Weight
11lbs
Installation
Wall mounting
Housing Material
Aluminum
Environment
Operating Temperature
0 ~ +60°C
Storage Temperature
-10 ~ +75°C
Humidity
10 ~ 90% RH, Non-condensing
