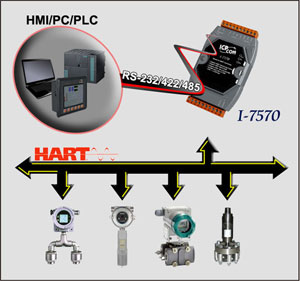

The I-7570 is a Serial to HART converter specially designed for the master device of HART protocol. It allows users to access the HART slave by using RS-232/RS-422/RS-485. These HART slave devices may be a transmitter, an actuator, a current output device and so forth. In addition, we also provide the utility tool for users to configure the I-7570.
| LED Indicators | |
|---|---|
| Status | PWR / TxD / RxD |
| COM Ports | |
|---|---|
| Ports | RS-232(Tx / Rx / GND) / RS-422 / RS-485 9-pin screwed terminal block |
| Baud Rate | 1200 bps (For FW_v1.1) 1200 ~ 115200bps (For FW_v1.1 / HW_v1.2) |
| Data Format | O(odd parity), 8(data bit), 1(stop bit) (For FW_v1.1) N/O/E(parity), 8(data bit), 1/2(stop bit) (For FW_v1.1 / HW_v1.2) |
| HART | |
|---|---|
| Ports | 1 |
| Protocol | 2-pin screwed terminal block |
| Power | |
|---|---|
| Reverse Polarity Protection | Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | 1 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 121 x 72 x 35 (H x W x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C (-13 to 167 ) |
| Storage Temperature | -30 ~ +85 °C (-22 to 185 ) |
| Humidity | 5% ~ 95%, Non-condensing |
