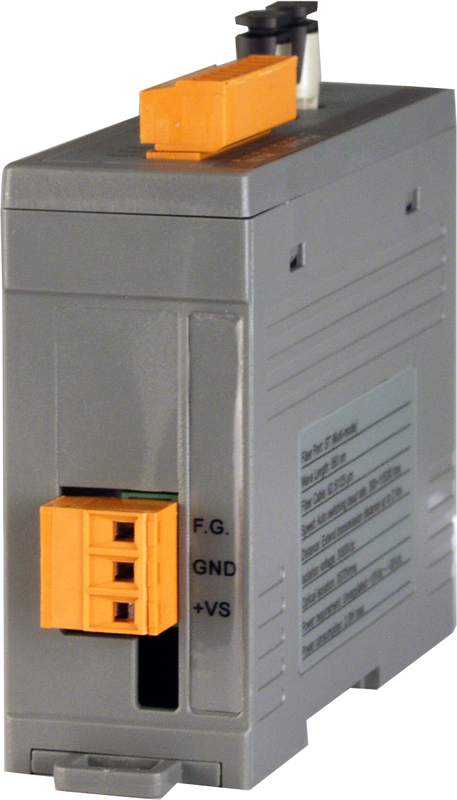

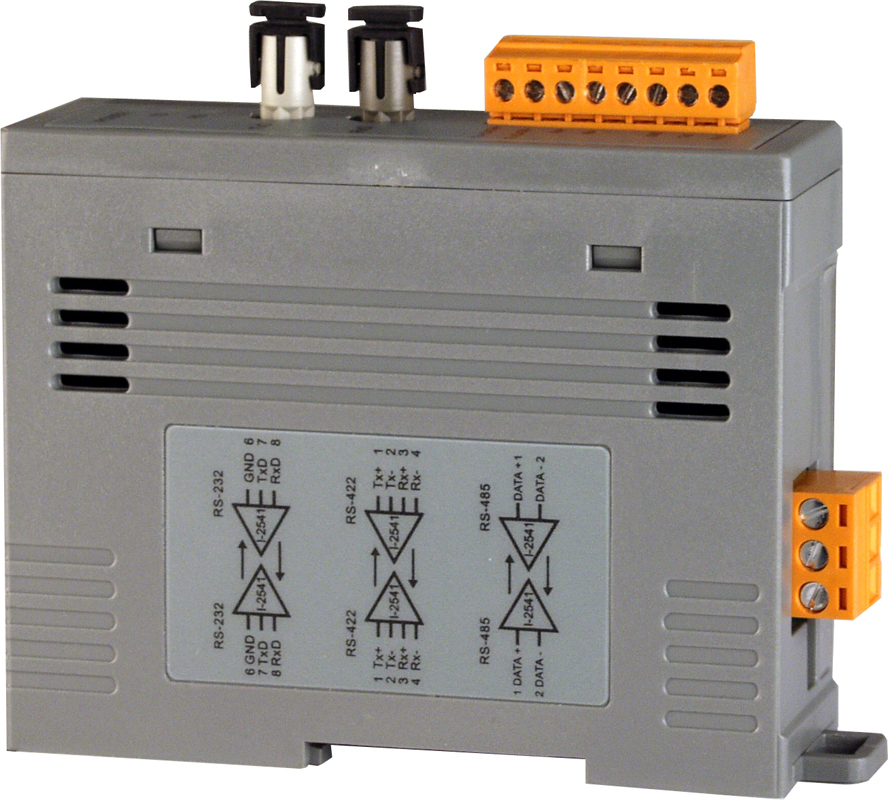

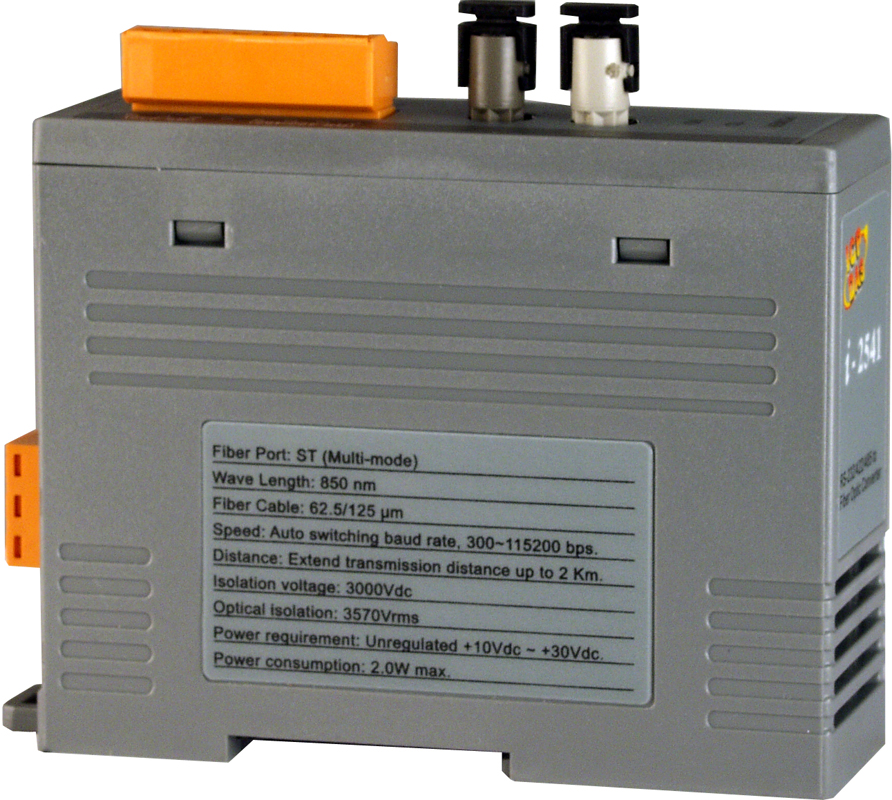

The I-2541 is an RS-232/422/485 to fiber optic converter that secures data transmission by using fiber optic transmission to provide immunity from EMI/RFI interference. The I-2541 is used for RS-232/422 point-to-point connections and RS-485 multi-drop applications for transmitting a signal up to 2 km (6,600 ft) and is the perfect solution for applications where transmission must be protected from electrical exposure, surges or chemical corrosion.
| Interface | |||
| Fiber Interface | Fiber Port | Multi Mode; ST Connector | |
| Wavelength | 850 nm | ||
| Fiber Cable | 50/125, 62.5/125, 100/140 μm | ||
| Distance | 2 km, (62.5/125 μm recommended) | ||
| Serial Interface | RS-232 | TxD, RxD, GND | The RS-232, RS-422 and RS-485 cannot be used simultaneously |
| RS-422 | TxD+, TxD-, RxD+, RxD | ||
| RS-485 | Data+, Data- | ||
| 2-wire Cabling/4-wire Cabling | Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used, the transmission distance may change | ||
| RS-422/485 Transfer Distance | Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps | ||
| Maximum Supported RS-485 Devices | 256 (Without repeater) | ||
| Self-Tuner Asic Inside | Yes | ||
| Speed | 300 ~ 115200 bps | ||
| ESD Protection | Yes | ||
| RS-232/422/485 Connection | Removable 8-Pin Terminal Block | ||
| LED Indicators | |||
| Power/Communication | Yes | ||
| Power | |||
| Input Voltage Range | +10 VDC~ +30 VDC (Non-isolated) | ||
| Power Consumption | 1.5 W | ||
| Mechanical | |||
| Casing | Plastic | ||
| Flammability | Fire Retardant Materials (UL94-V0 Level) | ||
| Dimensions (W x L x H) | 33 mm x 89 mm x 107 mm | ||
| Installation | DIN-Rail | ||
| Environment | |||
| Operating Temperature | -25 °C ~ +75 °C | ||
| Storage Temperature | -30 °C ~ +75 °C | ||
| Humidity | 10 ~ 90% RH, non-condensing | ||
