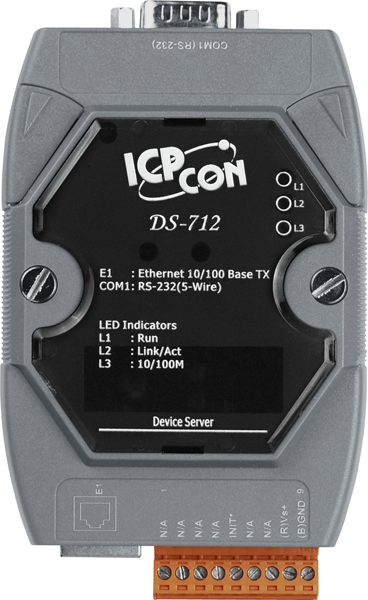

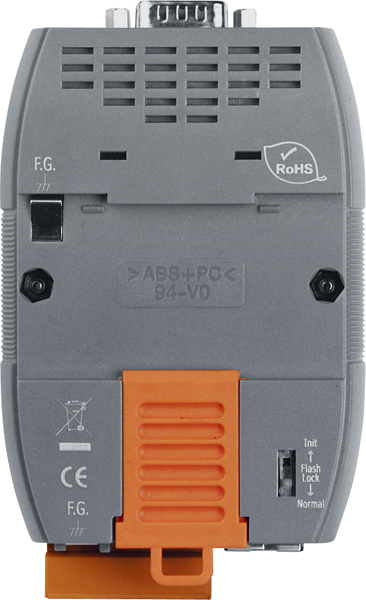

DS-712

The DS-700 is a series of Serial-to-Ethernet Device Servers designed for linking RS-232 / RS-422 / RS-485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. Thanks to its protocol independence, compact size and flexibility, the DS-700 series Serial-to-Ethernet device servers meets the demands of virtually any network-enabled applications.

The DS-712 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000 Vrms isolation.

Click here to learn more about our PDS Serial to Ethernet Gateways

• Incorporate Serial Devices in an Ethernet network
• "Virtual COM" Extend COM Ports
• Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
• High Performance Device Server
• Watchdog Timer suitable for use in harsh environments
• Power Reverse Polarity Protection
• Serial Port +/-4 kV ESD Protection Circuit
• RoHS Compliant with no Halogen
• Built-in High Performance MiniOS7 from ICP DAS
• 10/100 Base-TX Ethernet, RJ-45 Port
  (Auto-negotiating, auto MDI/MDI-X, LED indicator)
• ODM Service Is Available
• Low power consumption
• Palm-sized with multiple Serial Ports
• Made from fire retardant materials (UL94-V0 Level)
• Male DB-9 Connector

Applications

• Factory Automation
• Building Automation
• Home Automation
