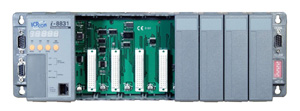

I-8831-G

$1,399.00
Rack mount embedded Ethernet controller: 256/512K flash, 256/512k SRAM, 10BaseT connection. Available in 4 & 8 slot capacity (8 x slot: 512k / 512k)
Availability: IN STOCK | FASTEST DELIVERY : Friday, Sep 25 | Enter ZIP below for shipping options
Get Shipping Options
-
+
Buy with one Click
Share On:
Categories: I-8000 C Language Embedded Controllers | I-8000 Rack Mount Controllers | I-9000 Remote I/O modules
Review: Write your review
Resources:

The I-8x3x family of embedded Ethernet controllers offers an ideal compromise between our I-7188 family of micro controllers, and our W-8000 series PAC controllers. The I-8000 is a flexible and robust solutions for users looking to implement a localized, ethernet based, rack mounted control / data acquisition solution. I-8x3x features include:

  • Localized, high speed paralell backplane
  • Equipped with MiniOS7 (ROM-DOS like OS)
  • Supports IPv4.
  • Provides full C library functions for:
    • I-8000 I-87K I/O
    • 7-segment LED display
    • RTC (real time clock)
    • EEPROM
    • and more!
  • Firmware can be updated via the RS-232 port
  • XServer architecture greatly simplifies programming of TCP/IP protocol
  • Supports "VxComm" capabilities for all COM ports (RS-232 and Ethernet)
  • Provides a hardware serial number or an ASICKey to protect designated systems.
  • Compact I/O Expansion slots allow quick installation of I/O modules
  • Built-in watchdog circuit
  • Dual Bus designed to support I-8000 & I-87K series I/O modules
  • ModBus TCP & RTU (via internal pass through)

Specifications

  • Processor: AMD 80188 @ 40MHz (AMD 80188 @ 80MHz CPU for -80 models)
  • SRAM: 256~512Kb (model dependant)
  • Flash ROM: 256~512Kb (model dependant)
  • EEPROM: 2Kb
  • Built-in Watchdog Timer
  • COM0: Internal use
  • COM1: RS-232/Program download port
  • COM2: Ethernet 10 Base T NE2000 compatible
  • COM3: RS-232/485
  • S-MMI: Small Man Machine Interface (LED Display)
  • I/O Expansion Slots: 0, 4, 8
  • Power Supply: 20W / Unregulated +10Vdc to +30Vdc
  • Environment
    • Operating Temp.: -25°C to 75°C
    • Storage Temp.: -25°C to 75°C
    • Humidity: 5 ~ 95% (non-condensing)
  • Dimensions:
    • 418 x 110 x 75.5 mm
  • Din Rail Mount
