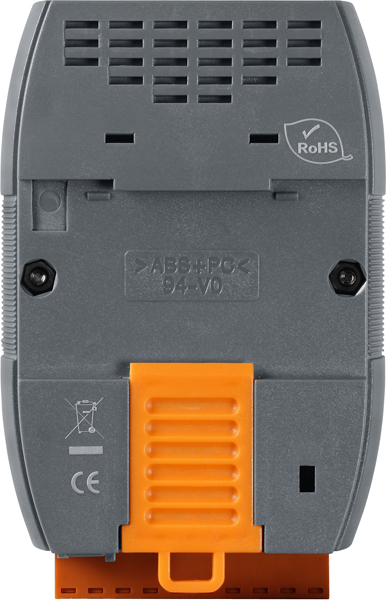

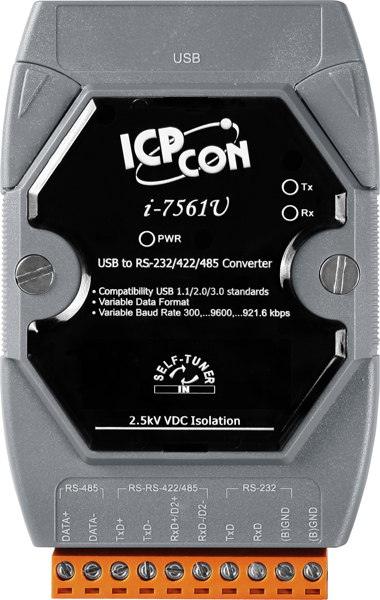

The I-7561U is an easy-to-use and cost-effective converter for transferring serial data via USB. It can be used to connect serial devices to systems with a USB interface. The I-7561U converter comes with one RS-232/RS-422/RS-485 port that allows compatibility with any serial device protocol. Besides the features of I-7561 USB to serial converter, the I-7561U also supports Windows 8 and Windows 10 operating systems. It also features high-speed 921.6kbps transmission rate, and supports various operating systems ranging from Windows to Linux. A Self-Tuner chip inside auto-tunes the baud rate and data format to the RS-485 networks. It is USB powered, so it doesn't require additional external power adapters. It comes with independent RS232 / RS-422 / RS-485 ports for flexible connections.
Comes with CA-USB18 Cord
| Interface | |||
| USB | Compatibility: USB 1.1/2.0/3.0 | ||
| Drivers | Windows 10 / 8.1 (32/64-bit) / 8 (32/64-bit) / 7 (32/64-bit) / Vista (32/64-bit) / XP / 2012 / 2000 / 98 / ME / Linux | ||
| Serial Interface | RS-232 | TxD, RxD, GND | The RS-232, RS-422 and RS-485 cannot be used simultaneously |
| RS-422 | TxD+, TxD-, RxD+, RxD | ||
| RS-485 | Data+, Data- | ||
| 2-wire cabling/4-wire cabling | Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used, the transmission distance may change |
||
| RS-422/485 Transfer Distance | Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps (Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change) |
||
| Maximum Supported RS-485 Devices | 256 (Without repeater) | ||
| Self-Tuner Asic Inside (RS-485) | Yes | ||
| Speed | 300 ~ 921.6 kbps | ||
| Connection | RS-232/422/485 | Removable 10-Pin Terminal Block | |
| USB | Type B | ||
| Cable Included | CA-USB18 (1.8 m Cable) x 1 | ||
| LED Indicators | |||
| Power | Yes | ||
| Power | |||
| Input Voltage Range | +5 VDC From USB | ||
| Power consumption | 0.5 W | ||
| Casing | |||
| Mechanical | Plastic | ||
| Flammability | Fire-Retardant Materials (UL94-V0 Level) | ||
| Dimensions | 72 mm x 115 mm x 35 mm | ||
| Installation | DIN-Rail | ||
| Environment | |||
| Operating Temperature | -25°C ~ 75 °C (-13°F ~ 167° F) | ||
| Storage Temperature | -30°C ~ 75 °C (-22°F ~ 167° F) | ||
| Ambient Relative Humidity | 10% ~ 90% RH, non-condensing | ||
