tM-7561

$159.00

Isolated RS-485 to USB Converter. Supports Operating Temperatures from -25°C ~ +75°C (13F ~ 167F). Comes with Drivers for Windows 7 (32/64-bit), 8 (32/64-bit), 10 (64-bit), 11 (64-bit) and Linux Operating Systems

Availability: IN STOCK | FASTEST DELIVERY : Friday, Sep 25 | Enter ZIP below for shipping options

Share On:
Categories:	USB Converters \| USB Converters \| RS-232/422/485 Converters \| RS-232/422/485 Converters
Review:	Write your review
Resources:	CE Certification Data Sheet Driver FCC Certification User's Manual 2D DWG Drawing

Introduction

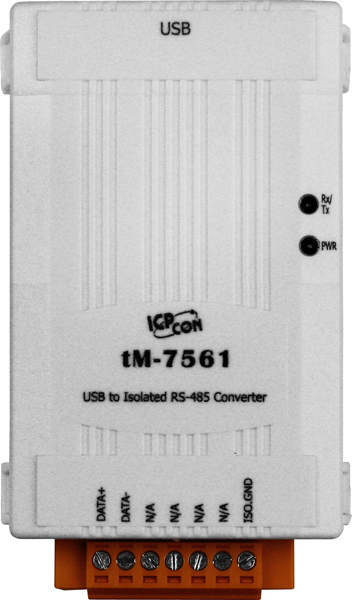

tM-7561

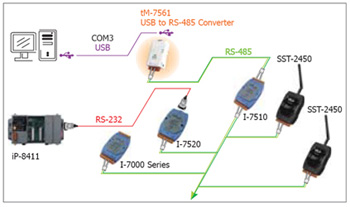

The tM-7561 is a cost-effective RS-485 to USB converter. A RS-485 to USB converter allows users to access RS-485 devices through a USB interface. Like our I-7520 RS-232 to RS-485 converter, the tM-7561 also contains a "Self-Tuner" chip that auto-tunes the baud rate and data format to the RS-485 network. The tM-7561 RS-485 to USB converter is powered by the USB port and no external power adapter is needed.

Features

Fully Compliant with the USB 1.1/2.0 (High Speed)
Power and data flow indicator for troubleshooting
2500 VDC Isolation Protection on the RS-485 side
Driver Supports Windows 7 (32/64-bit)/8 (32/64-bit)/10 (64-bit)/11 (64-bit)/Linux
No External Power Supply required
Automatic RS-485 Direction Control
Low power consumption
Tiny packaging fits on your DIN-Rail Mounting

FCC RoHS WEEE

Specifications

LED Indicators
Status	1 x Power and Communication

COM Ports
Ports	1 x RS-485
Baud Rate	300 ~ 115200 bps

USB
Specification	USB 1.1 and 2.0 standards

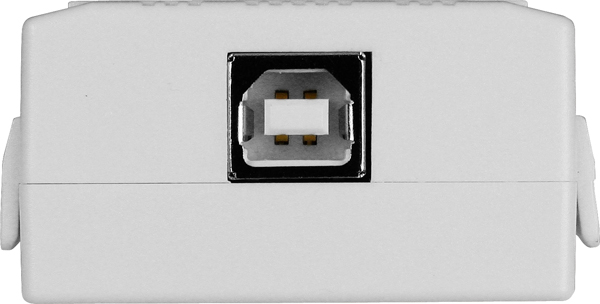

Connector	Type B

Power
Input Range	+5 VDC from USB
Consumption	0.4 W

Mechanical
Casing	Plastic
Dimensions (mm)	55 x 87 x 27 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +75 °C
Humidity	10 ~ 90% RH, non-condensing
