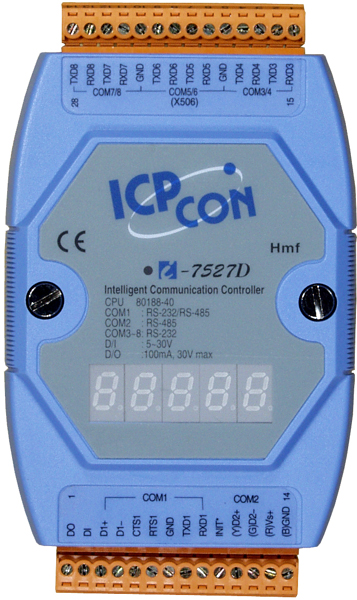

Intelligent Communication Controller with one RS-485 port, three RS-232, seven RS-232 ports and one RS-232/RS-485 port
| CPU Module | |
|---|---|
| CPU | 80188 or compatible, 40 MHz |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| Digital Input | |
|---|---|
| Channels | 1 |
| Type | Dry Contact, Non-isolated |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
|---|---|
| Channels | 1 |
| Type | Open Collector |
| Load Voltage | +30 VDC |
| Load Current | 100 mA |
| COM Ports | |
|---|---|
| Ports | 6 x RS-232 1 x RS-485 1 x RS-232/RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH |
