I-7232D

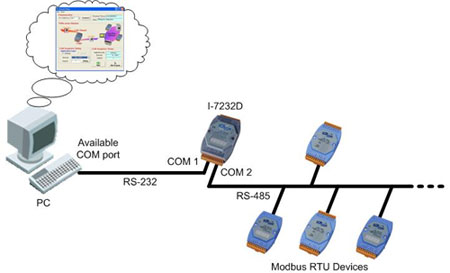

The I-7232D CANOpen to Modbus RTU Gateway is an ICP DAS CAN bus product. The device allows a CANOpen master to access the Modbus slave devices on some Modbus RTU network. Modbus RTU protocol is a kind of application protocol based on RS485 network. This gateway provides an easy way to connect Modbus RTU devices with CANOpen network These Modbus RTU devices may be a PLC, a Modbus RTU sensor, or ICPDAS M-7000 series modules. We also provide the utility software for users to configure the I-7232D，s parameters and build the EDS file for the CANopen master interface. Users can easily apply Modbus RTU devices in CANopen applications wit the I-7232D.

• NMT: Slave
• Error Control: Node Guarding protocol
• Node ID: Setting by CAN_MRU Utility Software
• PDO Modes: Event-triggered, remotely requested, cyclic and acyclic SYNC
• PDO Mapping: variable
• No of SDOs: 1 server, 0 client
• Emergency Message: Yes
• CANopen Version: DS-301 v4.01
• Device Profile: DSP-401 v2.0
• CAN Baud Rate setting by utility:
• 10K, 20K, 50K, 125K, 250K, 500K, 800K, 1M bpse
• Modbus Baud Rate setting by utility:
  • 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200 bps
• RUN, ERR, and OVERRUN LED indicators
• Support max 10 Modbus RTU I/O series modules
• Provide friendly Utility for parameters configuration.
• 7-segmemt LED to show Node ID, CAN baud rate and RS-485 baud rate

Applications:

• Control Systems
• Building Automation
• Factory Automation
• Distributed Data Acquisition

Utility

The I-7232D Utility helps users to configure the devices, and has following features:

• Support CANopen node ID, baud rate setting
• Provide Modbus RTU parameters setting
• Display Modbus RTU devices configuration
• Show CANopen application objects configuration
• Produce EDS file Dynamically

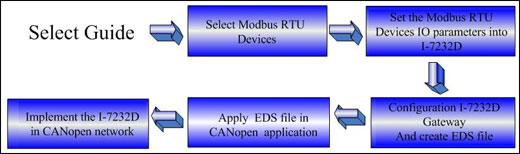

Usage

The simple steps about how to use CPS_DCON gateway are described as follows:

1. Select Modbus RTU devices for users' CANopen application
2. Set the Modbus RTU devices 10 parameters into I-7232D by CAN_MRU Utility
3. Configure the I-7232D and create EDS file
4. Apply EDS file to CANopen application
5. Implement the I-7232D in CANopen network

Modules Support

Only the following Modbus RTU commands are supported by the gateway.
