| Model Number | 7188XA | 7188XB | 7188XBD-512 | 7188XC |
| CPU (80188) | 40MHz | 40/80MHz | 40/80MHz | 40MHz |
| SRAM | 512K | 256K | 512K | 128K |
| Flash | 512K | 512K | 512K | 256K |
| COM 1 Port | RS-232/485 | RS-232/485 | RS-232/485 | RS-232/485 |
| COM 2 Port | RS-485 | RS-485 | RS-485 | RS-485 |
| COM 3 Port | RS-232 | - | - | - |
| COM 4 Port | RS-232 | - | - | - |
| EEPROM | 2kb | 2kb | 2kb | 2kb |
| DI | 2 | 1 | 1 | 2 |
| DO | 2 | 1 | 1 | 3 |
| Embedded O.S. | MiniOS7 | MiniOS7 | MiniOS7 | MiniOS7 |
| Developing tool kit | yes | yes | yes | yes |
| Battery Backup | yes | no | no | no |

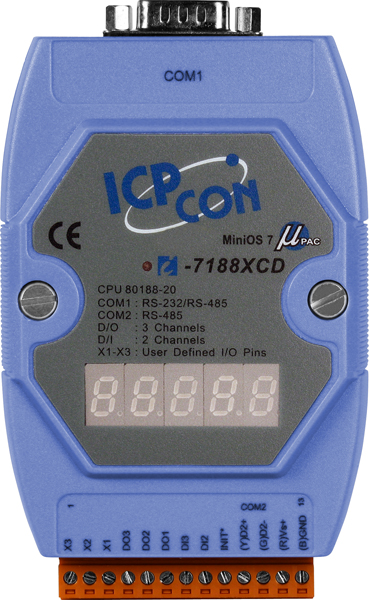

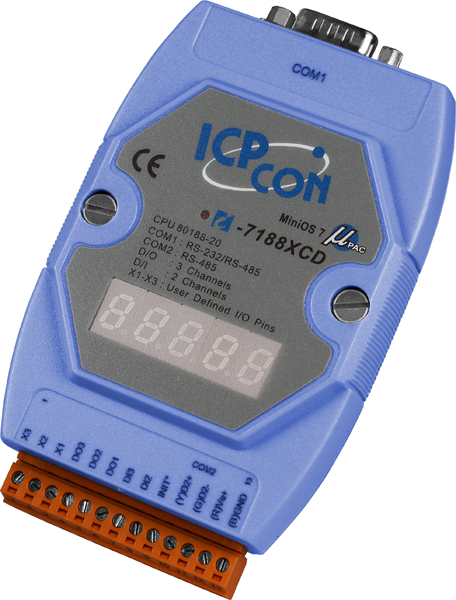

The ICP DAS I-7188 expandable embedded controller offers the ultimate in modern cost effective control! The I-7188X series offers boundless expansion capabilities with their internal expansion bus; allowing for fully customizable applications, in a compact and robust embedded control format. I-7188X controllers are programmable in C language, and offer a cost effective solution for any size industrial control application!
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
|---|---|
| CPU | 80188, 20 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 128 KB |
| Watchdog Timer | Yes |
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
|---|---|
| Status | 1 x System |
| Digital Input | |
|---|---|
| Channels | 2 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
|---|---|
| Channels | 3 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| I/O Expansion | |
|---|---|
| I/O Type | X-board |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485, 1 x RS-232/RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
