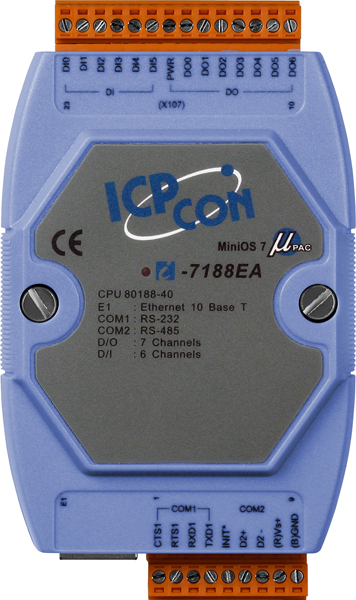

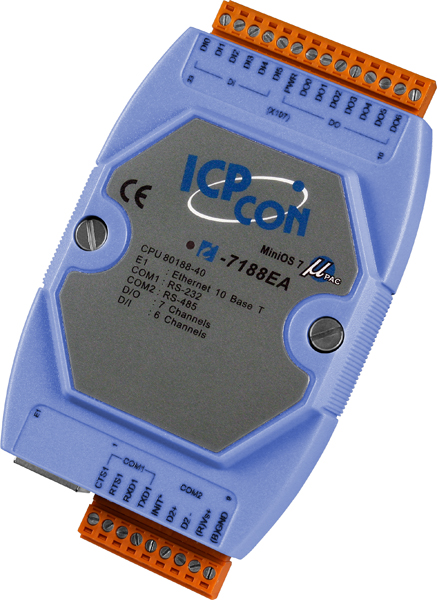

Compared to I-7188EX, the I-7188EA adds seven open-collector output channels and six digital input channels. I/O Expansion bus has been occupied by DI/O expansion board. Therefore I-7188EA is used as an Embedded Internet / Ethernet Controller with several built-in D I/O channels. If the user wants to know more details of I-7188EX, refer to I-7188EX for further information.
|
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
|---|---|
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x System |
| Digital Input | |
|---|---|
| Channels | 6 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Wet: Sink Dry: Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC Dry: Close to GND |
| OFF Voltage Level | Wet: +1 VDC Max. Dry: Open |
| Digital Output | |
|---|---|
| Channels | 7 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10 Base-T |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
