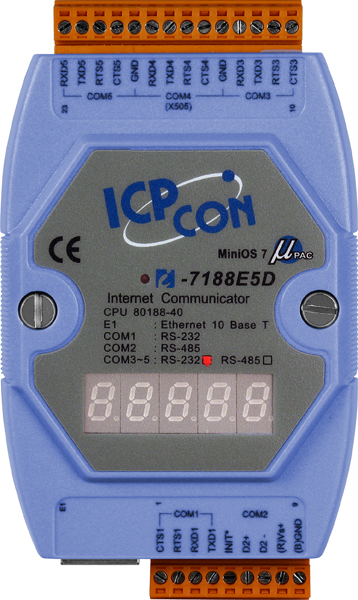

I-7188E5D (with 7 segment display)

$599.00
5 Serial Ports to Ethernet Converter / Intelligent Controller with 7 segment display, 40 Mhz CPU. MiniOS7 Operating System. Supports operating temperatures between -25 to 75°C.
Availability: IN STOCK | FASTEST DELIVERY : Monday, Oct 12 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: Serial to Ethernet Converters | I-7188 C Language Embedded controllers
Review: Write your review
Resources:
Model
CPU
SRAM
Flash
DI
DO
Ethernet Port
COM1
COM2
COM3
COM4
COM5
COM6
COM7
COM8
(Note2)

I-7188E1
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
-
-
-
-
-
-
-

I-7188E1D

I-7188E2
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
-
-
-
-
-
-

I-7188E2D
I-7188E3
40M Hz
384K
512K
4
4
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-422
(Note5)
-
-
-
-
-
I-7188E3D
I-7188E3-232
40M Hz
384K
512K
4
4
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-232 (Note1)
-
-
-
-
-
I-7188E3D-232
I-7188E4
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-232 (Note1)
RS-232 (Note4)
-
-
-
-
I-7188E4D
I-7188E5
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-232 (Note1)
RS-232 (Note1)
RS-232 (Note1)
-
-
-
I-7188E5D
I-7188E5-485
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-485
(Note3)
RS-485
(Note3)
RS-485
(Note3)
-
-
-
I-7188E5D-485
I-7188E8
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-232
(Note2)
RS-232 (Note2)
RS-232 (Note2)
RS-232 (Note2)
RS-232 (Note2)
RS-232 (Note2)
I-7188E8D



Note1: RS-232, RXD, TXD, CTS, RTS, GND

Note2: RS-232, RXD, TXD, GND

Note3: RS-485: Data+, Data-;Self-tuner inside

Note4: RS-232, RXD, TXD, CTS, RTS, DSR, DTR, DCD, RI, GND

Note5: RS-422, TXD+, TXD-, RXD+, RXD-

Specifications

  • CPU: Am188ES CPU @ 40MHz
  • SRAM: 384Kb
  • Flash Memory: 512Kb. Erase unit is one sector (64K bytes)
  • 100,000 erase/write cycles
  • NVSRAM: 31 bytes, battery backup, data valid up to 10 years
  • EEPROM: 2048 bytes (8 blocks, each block has 256 bytes)
  • Data retention: 100 years - 1,000,000 erase/write cycles.
  • Real Time Clock
  • Ethernet port: 10Base-T
  • COM1: RS-232: TXD, RXD, RTS, CTS, GND
  • COM2: RS-485: D1+, D1-, self-tuner ASIC inside
  • Communication speed: 115,200 bps max.
  • User defined I/O pins: 14
  • Power requirements: 10 to 30VDC(non-regulated)
  • Power consumption:
    • 2.0W for I-7188E1, I-7188E2, I-7188E3, I-7188E4, I-7188E5, I-7188E8
    • 3.0W for I-7188E1D, I-7188E2D, I-7188E3D, I-7188E4D, I-7188E5D, I-7188E8D
  • Operating temperature: -25ºC ~ 75ºC
  • Humidity rating: 10~90% non-condensing
  • Dimensions: 123 x mm x 72 mm x 33 mm
  • I-7188EX/DW: 123 mm x 64.5 mm x 19.6 mm
  • Din Rail Mount
