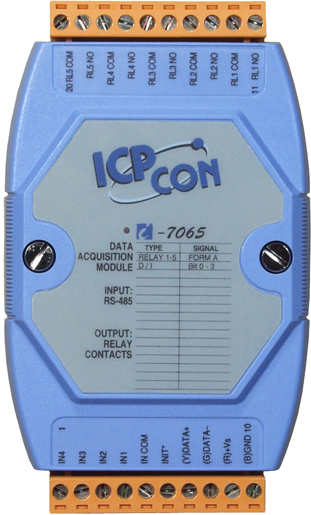

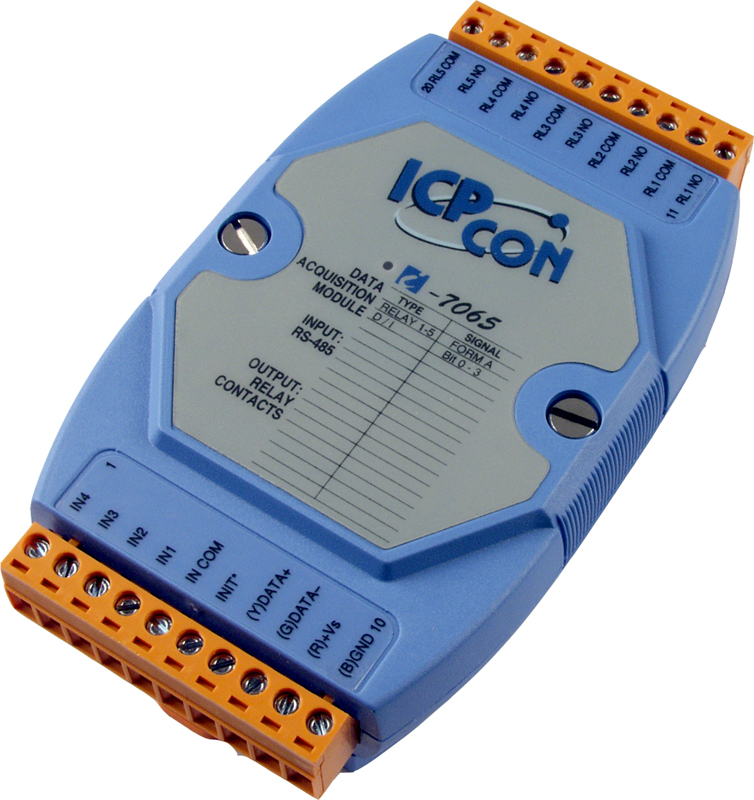

I-7065 is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7065 is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7065 power relay output module. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. The communication interface is modbus protocol via RS-485. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals.
| Digital Input | |
| Channels | 4 |
| Input Type | Sink, Source, isolated channels with common ground or power |
| Off Voltage Level | +1V max. |
| On Voltage Level | +4 to +30V |
| Input Impedance | 3K Ohms, 0.5W |
| Counters | channels : 4 |
| Max. Counts: 16-bit (65535) | |
| Max. Input Frequency : 100Hz | |
| Min. Pulse Width : 5ms | |
| Photo-Isolation | 3750Vrms |
| Relay Output | |
| Channels | 5 |
| Relay Type | Form "A” relay SPST (N.O.) |
| Contact Rating | AC: 250V @5A |
| DC: 30V @5A | |
| Operating Time(Max.) | 6ms |
| Release Time(Min.) | 3ms |
| Surge Strength | 4,000VAC |
| Insulation Resistance | 1000MOhms min. at 500VDC |
| Life Time | Mechanical : 20 X 10^6 OPS |
| Electrical : 100 X 10^3 Full Load | |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200bps |
| LED Display | |
| 1 LED as Power/ Communication indicator | |
| 4 LEDs as Digital Input indicators and 5 LEDs as Relay Output indicators (for I-7065D) | |
| Power | |
| Input Voltage Range | 10~30VDC |
| Power Consumption | 1.3W (max.)(I-7065) / 1.3W (max.)(I-7065D) |
| Environment | |
| Operating Temperature | -25 to 75°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5 to 95%, non-condensing |
