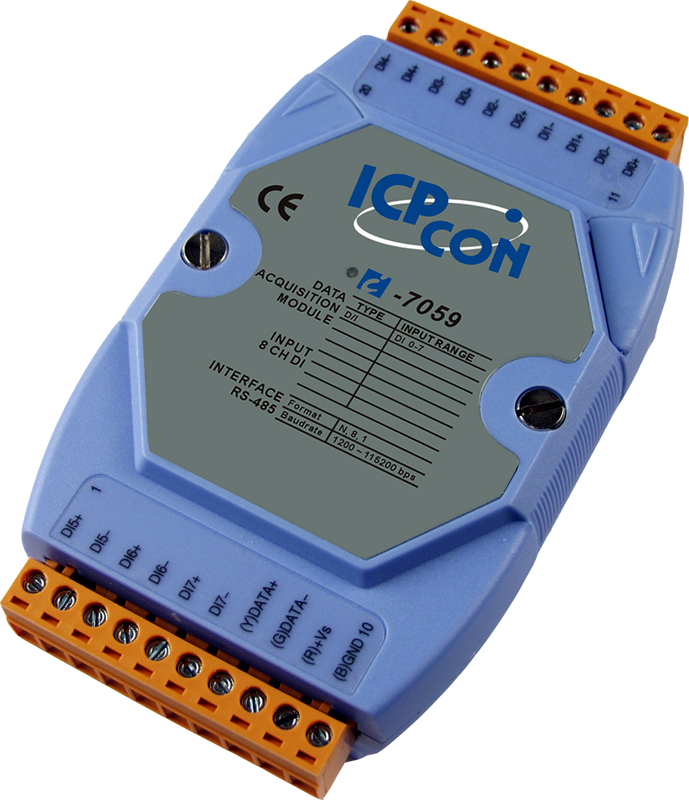

8-channel Isolated AC Voltage Digital Input Module I-7059D : I-7059 with LED Display
| Digital Input | |
| Channels | 8 |
| Input Type | AC, Differential, isolated |
| Off Voltage Level | 3 VAC max. |
| On Voltage Level | 10~80 VAC |
| AC Frequency | 47~400Hz (> 45Hz min) |
| Input Impedance | 10K Ohm, 1W |
| Counters | channels : 8 |
| Max. Counts: 16-bit (65535) | |
| Max. Input Frequency : 100Hz | |
| Min. Pulse Width : 5ms | |
| Photo-Isolation | 5000Vrms |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200bps |
| LED Display | |
| 1 LED as Power/ Communication indicator | |
| 8 LEDs as Digital Input indicators (for I-7059D) | |
| Power | |
| Input Voltage Range | 10~30VDC |
| Power Consumption | 0.3 W (max.)(I-7059) / 1.0W (max.)(I-7059D) |
| Environment | |
| Operating Temperature | -25 to 75°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5 to 95%, non-condensing |
