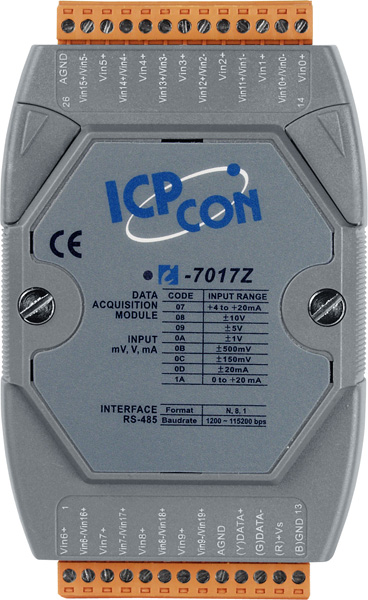

I-7017Z has software configurable channels from 10 differential channels into 20 single ended channels. Both voltage and current are accepted: ±150mV, ±500mV, ±1V,
±5V, ±10V, ±20mA , 0~20mA, and 4~20mA. No external resistor needed for measuring the current, all you have to do is to open the shell first and finish the setting by jumper.
Measuring the current is as simple as you think! The I-7017Z also passes 240Vrms over voltage protection for differential inputs and 150Vrms over voltage protection for singleended inputs, 3000VDC intra-module isolation, +/-4KV contact ESD protection, +/-4KV EFT protection for power, and +/-1KV EFT protection for RS-485. The sampling rate of I-7017Z is changeable. There are fast mode and normal mode for your consideration. Fast Mode is 60Hz with 12 bit resolution. Normal Mode is 10Hz with 16 bit Resolution. .
| Analog Input | |
| Input Channels | 10 differential or 20 single-ended (Voltage Inputs Only, Note1), software selectable |
| Input Type | +/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V, +/-20mA ,0~20mA, 4~20mA (jumper selectable) |
| Resolution | 16-bit (Normal Mode) / 12-bit (Fast Mode) |
| Sampling Rate | 10 samples/ second (Normal Mode) / 60 samples/ second (Fast Mode) total |
| Accuracy | +/-0.1% (Normal Mode) / +/-0.5% (Fast Mode) or better |
| Band Width | 15.7Hz (Normal Mode) / 78.7Hz (Fast Mode) |
| Zero Drift | +/-20uV/°C |
| Span Drift | +/-25ppm/°C |
| Input Impedance | Voltage: 2M Ohms(Differential), 1M Ohms(Single-ended) /Current: 125 Ohms |
| Common Mode Rejection | 86dB min. |
| Normal Mode Rejection | 100dB |
| Over Voltage Protection | Differential: 240 Vrms, Single-ended: 150Vrms |
| ESD Protection | 4KV Contact for each terminal, and 8KV Air for random point |
| EFT Protection | 4KV to Power, and 1KV to RS-485 |
| Individual Channel Configuration | Yes |
| Intra-module Isolation, Field to Logic | 3000 VDC |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200bps |
| LED Display | |
| 1 LED as Power/Communication indicator | |
| Power | |
| Input | +10 to +30 VDC |
| Power Consumption | 2.0W |
| Environment | |
| Operating temperature | -25 to 75°C |
| Storage temperature | -40 to 85°C |
| Humidity | 5 to 95% RH, non-condensing |
Note1: Differential mode can be used for voltage input and current input. Single-Ended mode can be used for voltage input only.
