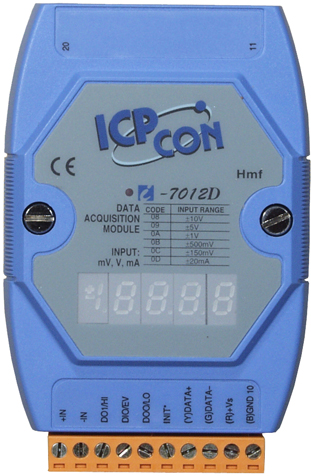

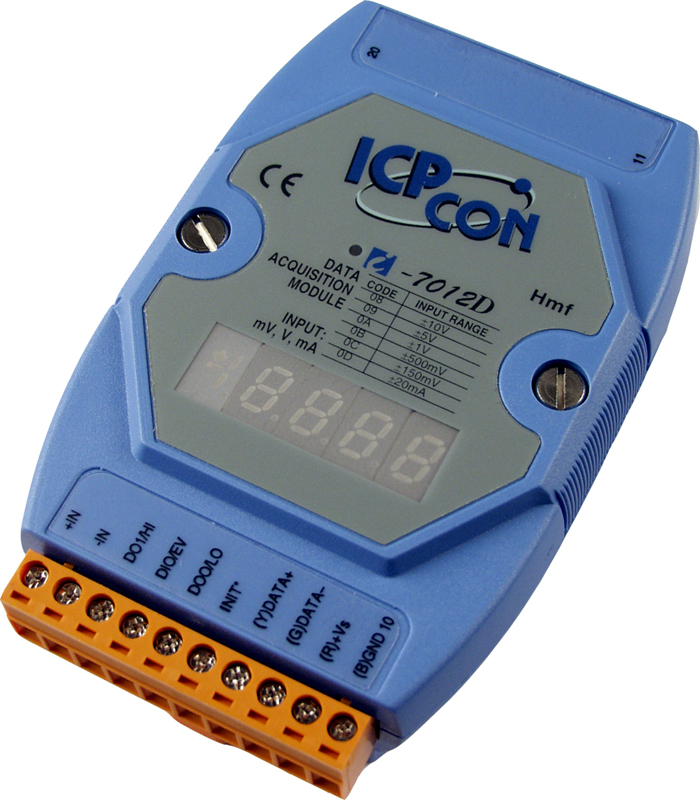

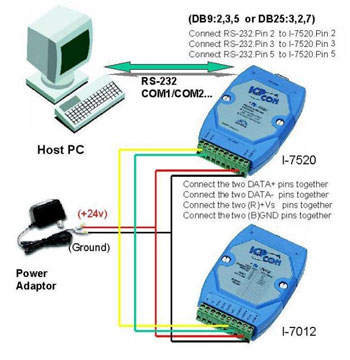

I-7012 is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7012 modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7012D comes with FREE EZ Data Logger Software.
| Analog Input | |
| Input Channels | 1 |
| Input Type | ±150mV, ±500mV, ±1V, ±5V, ±10V ±20mA (requires optional external 125 ohm resistor) |
| Resolution | 16-bit |
| Sampling Rate | 10 Samples/ Second |
| Accuracy | ±0.05% or better |
| Zero Drift | ±20uV/°C |
| Span Drift | 25ppm/°C |
| Band Width | 5.24Hz |
| Common Mode Rejection | 86dB |
| Normal Mode Rejection | 100dB |
| Photo-Isolation | 3750 Vrms |
| Intra-module Isolation, Field to Logic | 3000 VDC |
| Digital Input | |
| Channels | 1 |
| Logic Level 0 | + 1V max |
| Logic Level 1 | + 3.5V to 30V |
| Max Input Frequency | 50Hz |
| Min.Pulse Width | 1 mS |
| Digital Output | |
| Channels | 2 |
| Output Type | Sink, Open Collector to 30V |
| Output Load | 30mA max per channel |
| Power dissipation | 300 mW |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200bps |
| LED Display | |
| 1 LED | Power/ Communication indicator |
| I-7012D Versions | 4 1/2 digits |
| Power | |
| Input | +10 to +30 Vdc |
| Power Consumption | 1.3W (i-7012) / 1.9 W (i-7012D) |
| Environment | |
| Operating temperature | -25°C to 75°C |
| Storage temperature | -40°C to 85°C |
| Humidity | 5% to 95%, non-condensing |
