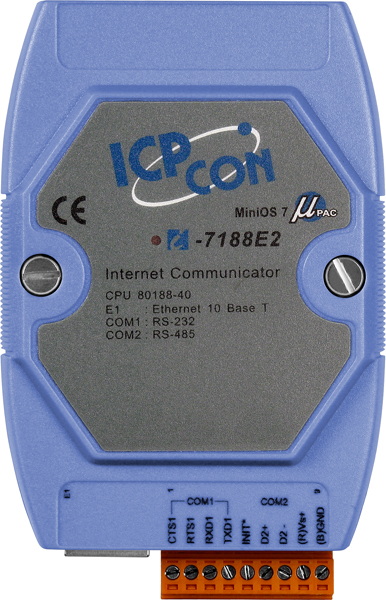

I-7188E2 (without display)

The I-7188EX, Embedded Internet/Ethernet Controller, focuses in Embedded Control applications. According to different embedded firmware and application program, the Internet Communication Controller can be used as Device Server, Addressable Ethernet to RS-232/485/422 Converter, or Embedded Internet/Ethernet Controller. The user should refer to comparison table to choose the best product. Now we offer wide range Internet Communication Controllers, such as I-7188E1 / E2 /E3 /E4 / E5 / E8. Except the RTC circuitry, the basic hardware of I-7188EN is similar to I-7188EX. Since there are so many configurations for I-7188EN series product, an OEM or ODM version is recommended. Also, it can be used as an Addressable Ethernet to RS-232/485/422 Converter.

Most RS-232/485/422 devices don't support device address. The I-7188EN series can assign a unique address to any RS-232 device installed in the Ethernet network. Host-PC can send command with device address to Ethernet network, the destination I-7188EN will remove the address field & pass the other fields of command to its local RS-232 device. The response of this local RS-232 device will be passed to host-PC via this destination I-7188EN.

The I-7188EN series can be used as Ethernet to RS-232/485/422 Device Server. The Device Server is an appliance that network enables any device with a serial communication port. By virtue of its independent operating system, protocol independence, small size and flexibility, Device servers are able to meet the demand of virtually any network-enable application. Most devices don't have network ports. Our Internet Communication Controllers allow those devices to become connected to the network.

The hardware and software of i-7188EN is similar to i-7188EX, the i-7188EN also can be used as Embedded Internet/Ethernet Controller except the RTC (Real Time Clock). The user can use well-developed libraries and demo programs to implement an Embedded Internet/Ethernet Controller.

• AMD 80188-40 Embedded CPU, or compatible
• Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
• 10BASE-T NE2000 compatible Ethernet Controller
• Reloadable Operating Software
• Remote Configuration
• Diagnostics
• COM driver support interrupt & 1K QUEUE Input & Output buffer
• Support serial port
• Built-in EEPROM
• Built-in self-tuner ASIC controller on RS-485 port
• support one RS-232 port and one RS-485 port
• 7-segment LED display for I-7188E2D
• Built-in MiniOS7
• Program download port: COM1 or Ethernet Port

Applications

• Factory Automation
• Building Automation
• Home Automation
