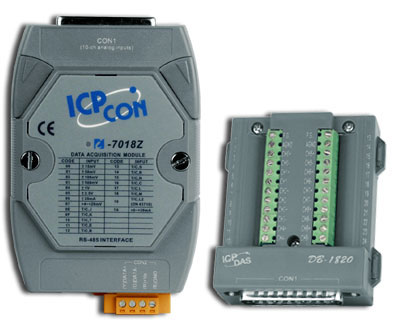

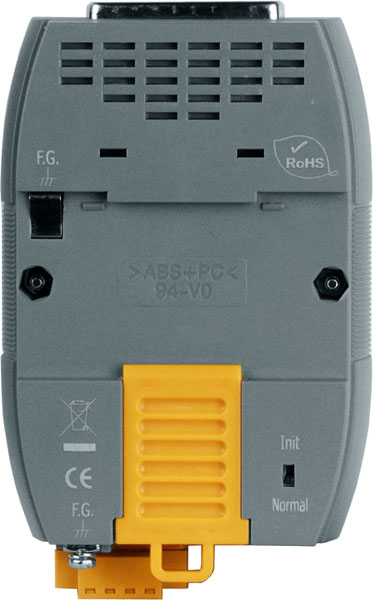

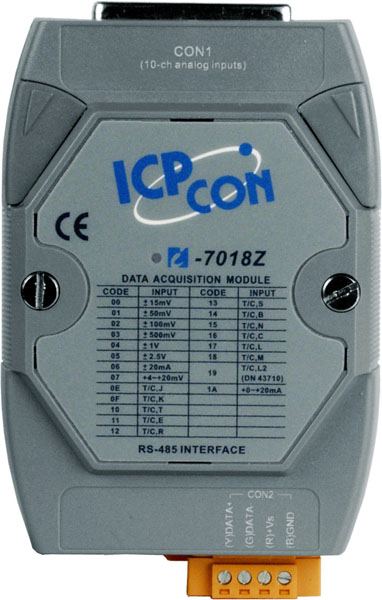

I-7018Z is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7018Z modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. I-7018Z comes with a daughter board for better CJC compensation. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to directly connect the units, and are also supplied with a 4" cable connector. I-7018Z comes with FREE EZ Data Logger Software.

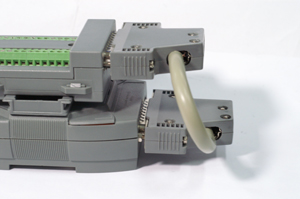

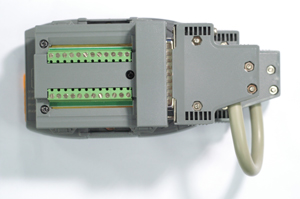

**Kit includes 4" 25-pin connector cable, along with external module DIN-rail mounting kit**
Mounting Options
| Analog Input | |
| Input Channels | 10 Differential |
| Input Type | +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V +/-20mA, 0~20mA, 4~20mA (Requires Optional External 125 Ohm Resistor) Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710) |
| Resolution | 16-bit |
| Sampling Rate | 10 Samples/Sec (Total) |
| Accuracy | +/- 0.1 % |
| -3dB BandWidth | 15.7 Hz |
| Zero Drift | +/- 0.5 μV/°C |
| Span Drift | +/- 25 ppm/°C |
| Common Mode Rejection | 150 dB |
| Normal Mode Rejection | 100 dB |
| Input Impedance | >500k Ohms |
| Over voltage Protection | 240 Vrms |
| Open Thermocouple Detection | Yes |
| Individual Channel Configuration | Yes |
| Temperature outputs consistency | Yes |
| Stable temperature output in the field | Yes |
| Intra-module Isolation, Field to Logic | 3000VDC |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200 bps |
| DB-1820 (3.81mm pitch) | |
| Wire Strip Length | 4 ~ 5 mm |
| Wire Range | 16 ~ 24 AWG |
| DN-1822 (5.08mm ptich) | |
| Wire Strip Length | 4 ~ 5 mm |
| Wire Range | 14 ~ 24 AWG |
| LED Display | |
| 1 LED as Power/Communication Indicator | |
| Power | |
| Input | +10 ~ +30 VDC |
| Power Consumption | 1.0W |
| Environment | |
| Operating Temperature | -25 ~ 75 °C |
| Storage Temperature | -40 ~ 85 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
| Type | Range (°C) |
| J | -210 ~ +760 |
| K | -270 ~ +1372 |
| T | -270 ~ +400 |
| E | -270 ~ +1000 |
| R | 0 ~ +1768 |
| S | 0 ~ +1768 |
| B | 0 ~ +1820 |
| N | -270 ~ 1300 |
| C | 0 ~ 2320 |
| L | -200 ~ +800 |
| M | -200 ~ +100 |
| L (DIN43710) | -200 ~ +900 |
