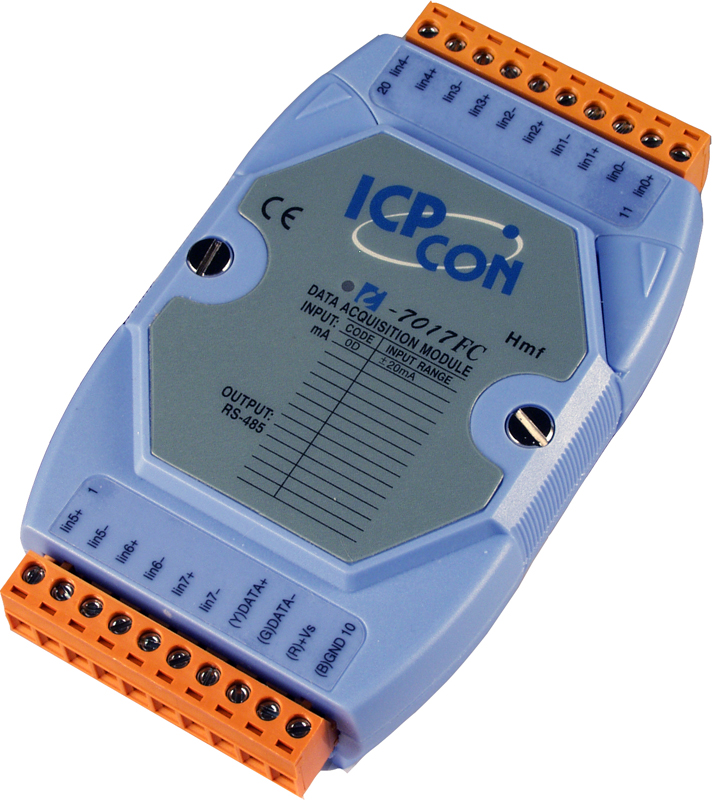

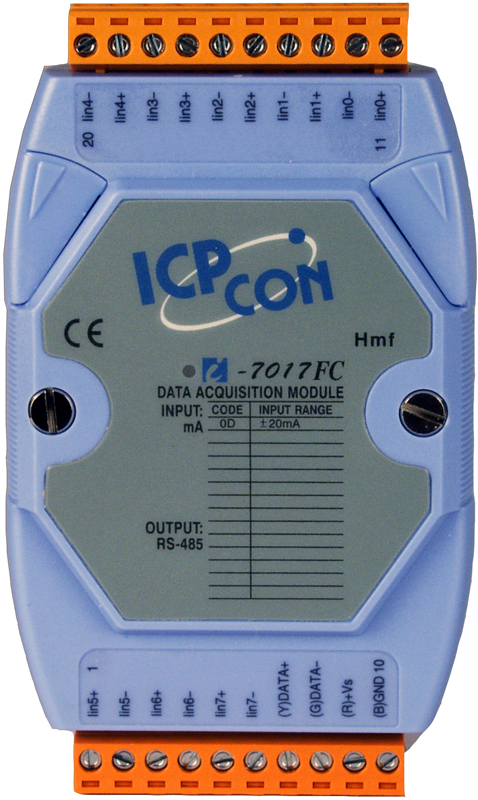

I-7017FC is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test the I-7017FC Analog Input Modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7017FC comes with FREE EZ Data Logger Software.
| Analog Input | |
| Input Channels | 8 differential |
| Input Type | +/-20mA, 0~20mA, 4~20mA |
| Resolution | 16-bit (Normal Mode) / 12-bit (Fast Mode) |
| Sampling Rate | 10 Samples/ Second (Normal Mode) / 60 Sample/ Second (Fast Mode) total |
| Accuracy | +/-0.1% (Normal Mode) / +/-0.5% (Fast Mode) |
| Band Width | 15.7Hz (Normal Mode) / 78.7Hz (Fast Mode) |
| Zero Drift | +/-20uV/°C |
| Span Drift | +/-25ppm/°C |
| Common Mode Rejection | 86dB min |
| Normal Mode Rejection | 100dB |
| Input Impedance | 125Ohms |
| Common Voltage | +/-15VDC |
| Intra-module Isolation, Field to Logic | 3000 VDC |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200bps |
| LED Display | |
| 1 LED as Power/Communication indicator | |
| Power | |
| Input | +10 to +30VDC |
| Power Consumption | 1.3W |
| Environment | |
| Operating temperature | -25 to 75°C |
| Storage temperature | -40 to 85°C |
| Humidity | 5 to 95% RH, non-condensing |
