Introduction
M-Bus (Meter-Bus) is a widely used communication interface for various types of meters, including electricity, water, and heat meters. Its key advantages are ease of installation—thanks to a two-wire system that handles both power and communication—and high reliability. Since M-Bus uses its own physical layer and protocol, it is often integrated with other systems like Modbus to enhance compatibility in broader applications.

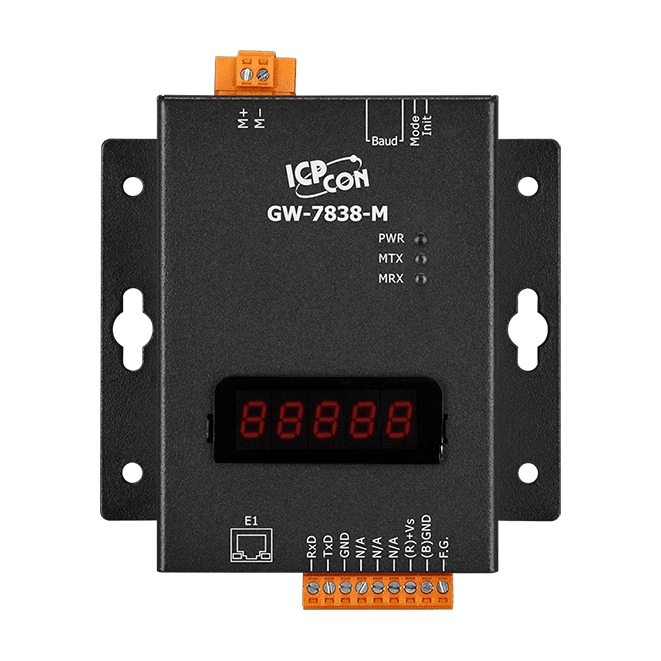

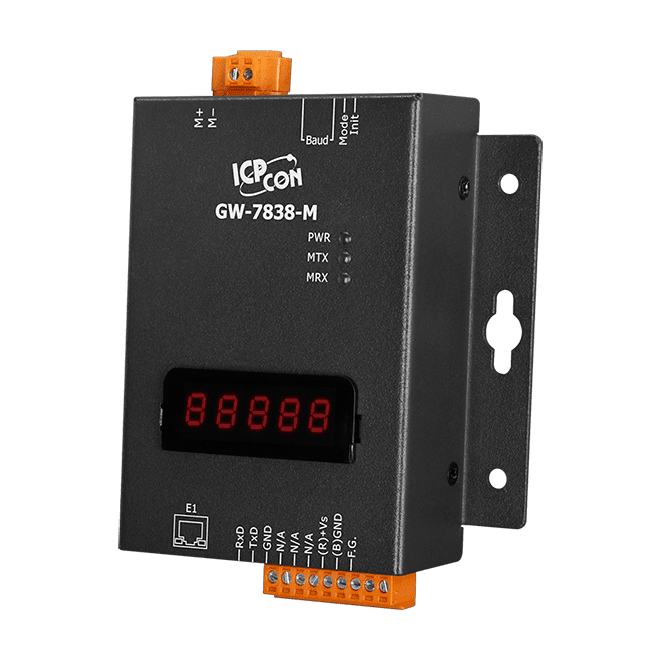

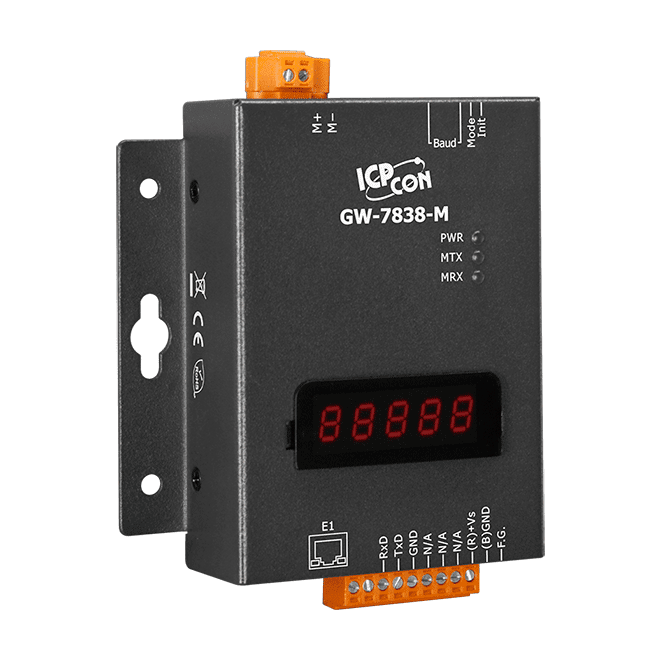

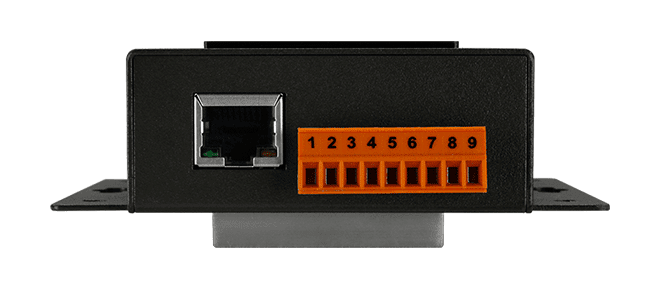

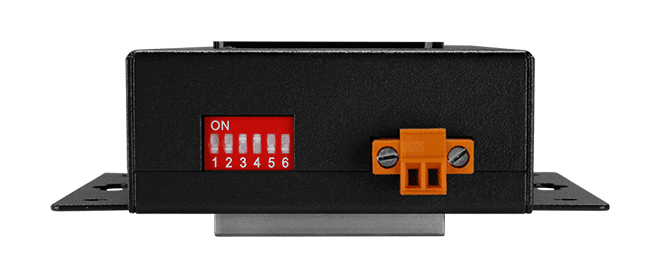

In industrial automation, Modbus TCP/RTU is one of the most widely adopted communication standards. To bridge the gap between M-Bus and Modbus, ICP DAS developed the GW-7838-M gateway, which enables seamless transmission of meter data from M-Bus to Modbus TCP/RTU. The GW-7838-M supports communication with up to 100 M-Bus devices. Once configured using the M-Bus utility, the gateway can autonomously collect meter data. A PLC or PC acting as a Modbus TCP/RTU client can then access this data via a TCP or RS-232 connection with ease.
Application
The M-Bus (Meter-Bus) is a communication bus specifically designed for reading data from measurement instruments such as energy meters, hot and cold water meters, gas meters, pressure sensors, actuators, and similar devices.
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| Protocol | Modbus TCP |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232, Non-isolated |
| Baud Rate | 300 - 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| M-Bus | |
|---|---|
| Ports | 1 |
| Baud Rate | 300 - 2400 bps and user-defined baud rate |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Isolation | 3750 Vrms for photo-couple |
| Current Protection | short-circuit protection |
| Power | |
|---|---|
| Consumption | 1.8 W @ 24 VDC (with 1 slave device), 11.8 W @ 24 VDC (with 100 slave devices) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 102 x 123 x 40 (W x H x D) |

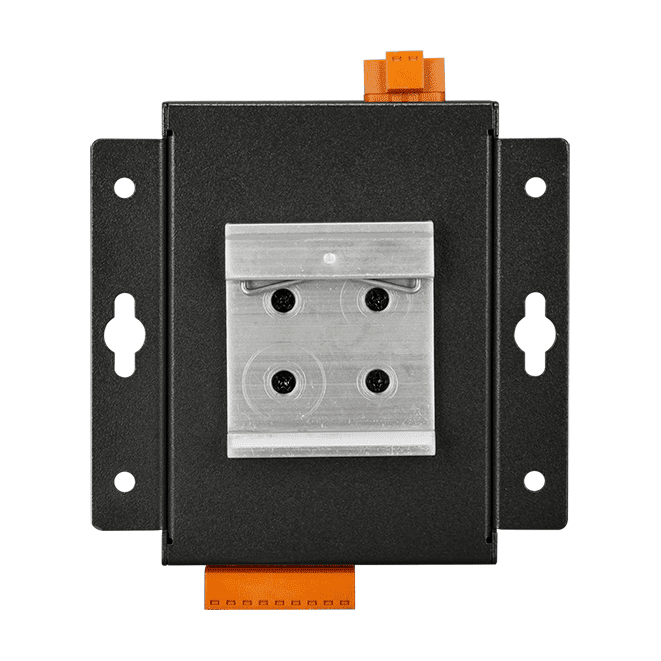

| Installation | Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 - +75 Deg C |
| Storage Temperature | -30 - +80 Deg C |
| Humidity | 10 - 90% RH, Non-condensing |
