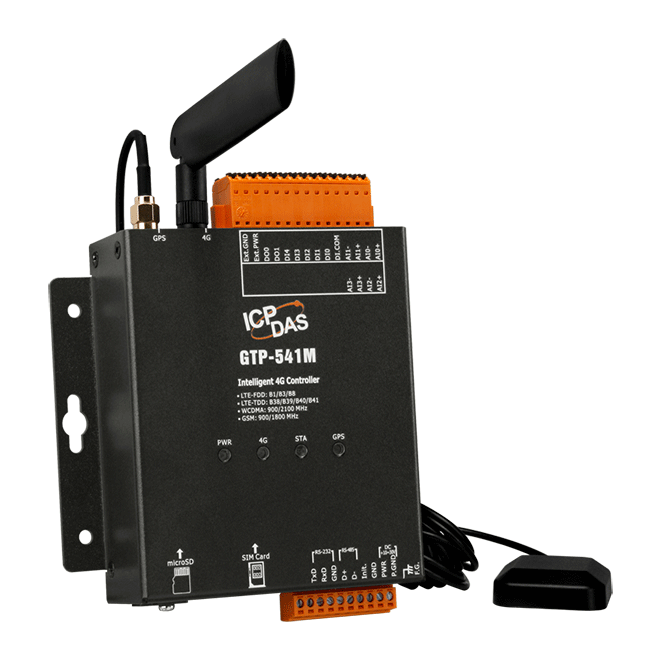

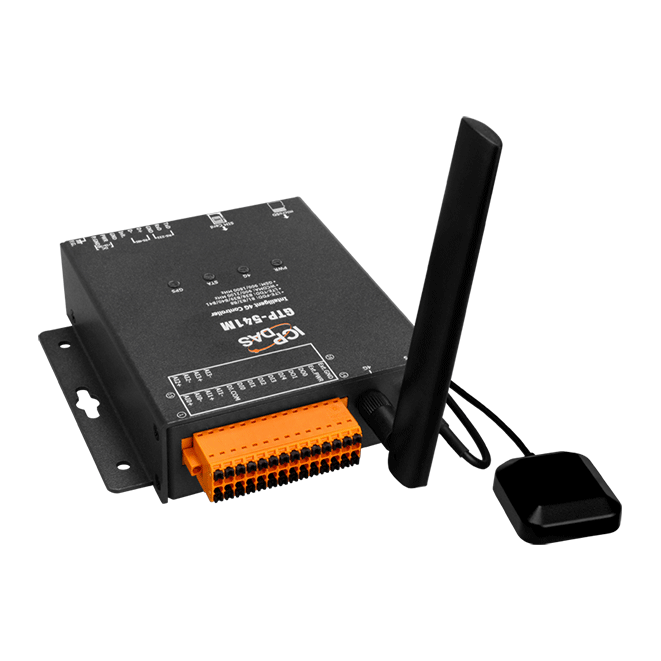

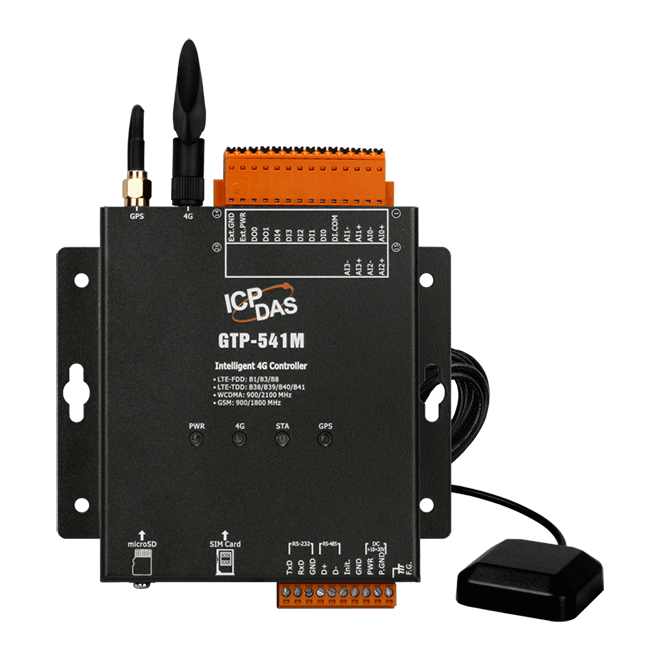

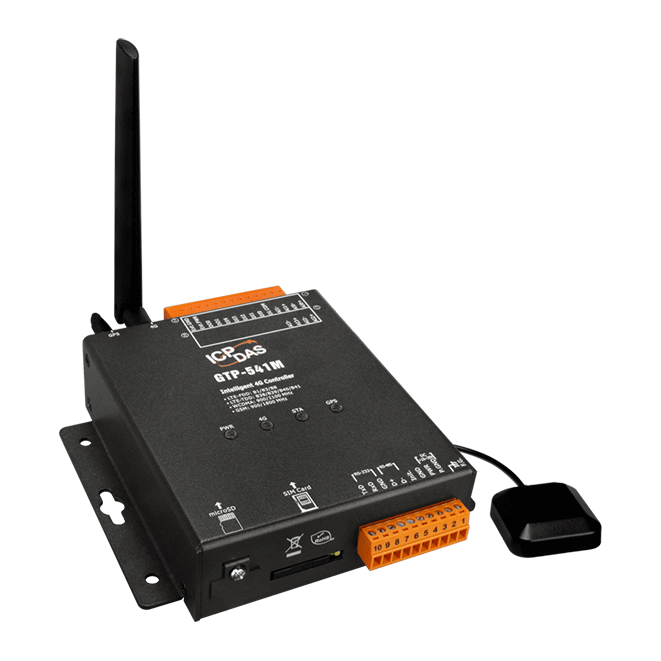

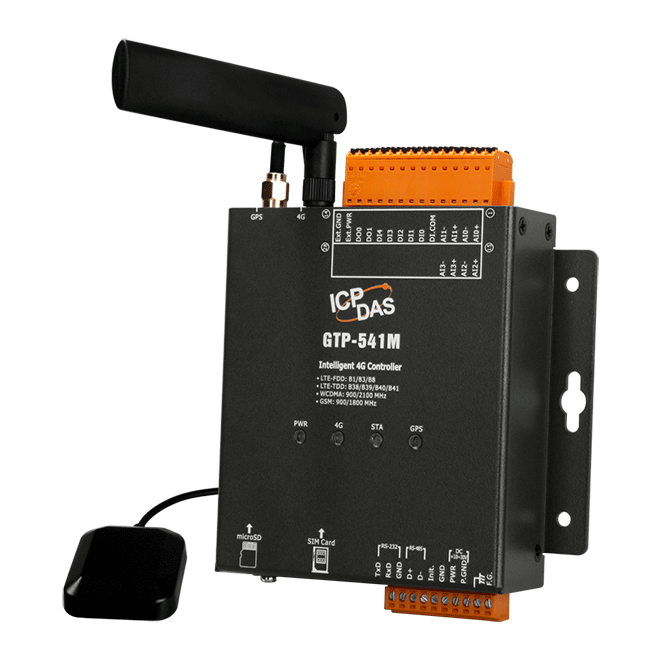

The GTP-541M is an industrial smart 4G remote terminal device that is backward compatible with the 2G/3G frequency band and can be used with different software interfaces to meet user needs. 4G remote terminal equipment transmits I/O signals to the remote management platform through LTE/WCDMA/GPRS. ICP also provides related software support to facilitate customers to quickly establish monitoring programs. These softwares include VxServer. Virtual COM software such as VxComm. In addition, users can switch GTP-541M different functions such as ModBusSMS, DIOSMS and RMV through SD card replacement firmware to meet different application requirements. The powerful features of the GTP-541M reduce user development costs and time, making it ideal for IoT applications.
|
Software
|
|
|
Service
|
Virtual COM, RTU, SMS Alarm |
|
CPU Module
|
|
|
CPU
|
ARM Cortex™ A5 processor |
|
Storage Expansion
|
SD Card (Max. 32GB SDHC)
|
|
Real Time Clock
|
Provide seconds, minutes, hours, day of week/month, month and year |
| Watchdog Timer | Yes |
|
LED Indicators
|
|
|
Status
|
1 x PWR
1 x 4G
1 x STA
1 x GPS
|
|
2G System
|
|
|
Coding Schemes
|
CS 1, CS 2,CS 3,CS 4 |
|
CSD
|
GSM
Downlink transfer: Max. 14.4 kbps; Uplink transfer: Max. 14.4 kbps
|
|
Data Transmission Rate
|
GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 85.6kbps
|
|
Frequency Band
|
900/1800 MHz |
|
GPRS Multi-slot
|
GPRS class 12; GPRS station class B |
|
Power Class
|
Class 4 (2 W @ 900 MHz)
Class 1 (1 W @ 1800 MHz)
|
|
SMS Format
|
Sending: UCS2/7bits
Receiving: UCS2/7bits
|
|
3G System
|
|
|
Data Transmission Rate
|
DC-HSPA+
Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
|
|
Frequency Band
|
WCDMA 900/2100 MHz |
|
Power Class
|
Class 3(250mW @ WCDMA) |
| Data Transmission Rate |
LTE(Cat.3)
Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50Mbps
|
| Frequency Band | FDD LTE : B1/B3/B8 |
| TDD LTE : B38/B39/B40/B41 | |
|
GPS
|
|
| Protocol | NMEA 0183 |
| Support Channels | 32 |
|
Analog Input
|
|
| Channels | 4 |
| Type | Voltage |
| Range | +10V ~ -10V |
| Resolution | 16-bit |
|
Digital Input
|
|
| Channels | 5 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source, Isolated channel with common power or ground |
| ON Voltage Level | +5V ~ +24V |
| OFF Volatage Level | +1V Max |
|
Digital Output
|
|
| Channels | 2 |
| Load Voltage | +24 VDC Max |
| Load Current | 100mA Max |
|
Digital Output
|
|
| Ports | 1 x RS-232/485, Non-isolated |
| Baud Rate | 9600, 19200, 38400, 57600 and 115200 bps |
|
Power
|
|
| Consumption | 4.8W ( 200 mA @ 24 VDC) |
|
Mechanical
|
|
| Casing | Metal |
| Dimensions (mm) | 113 x 125 x 34 (W x L x H) |
| Installation | DIN-Rail/ Screw |
|
Environmental
|
|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
