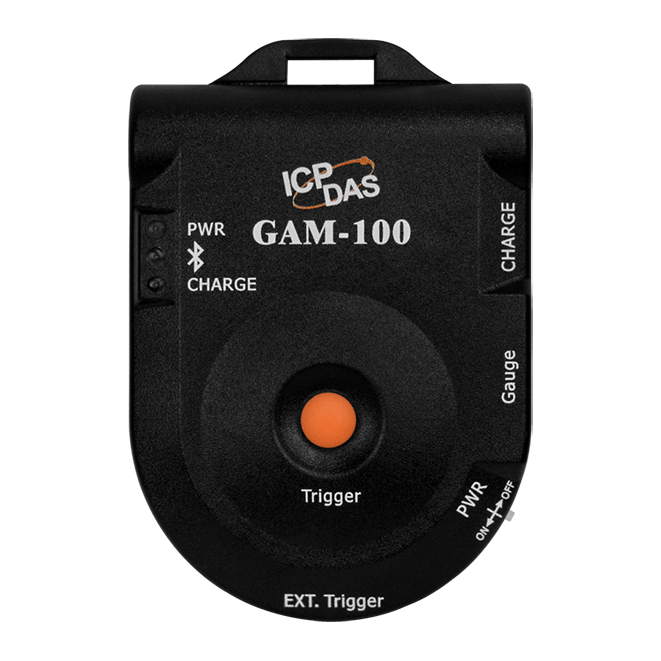

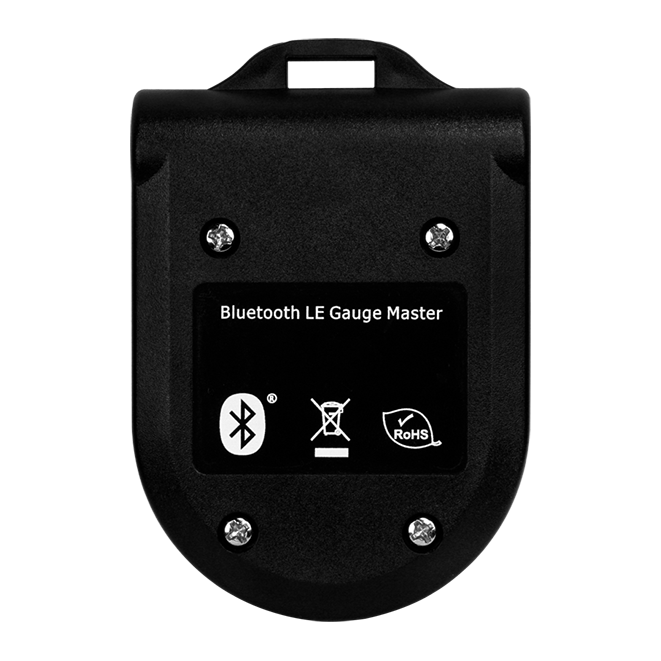

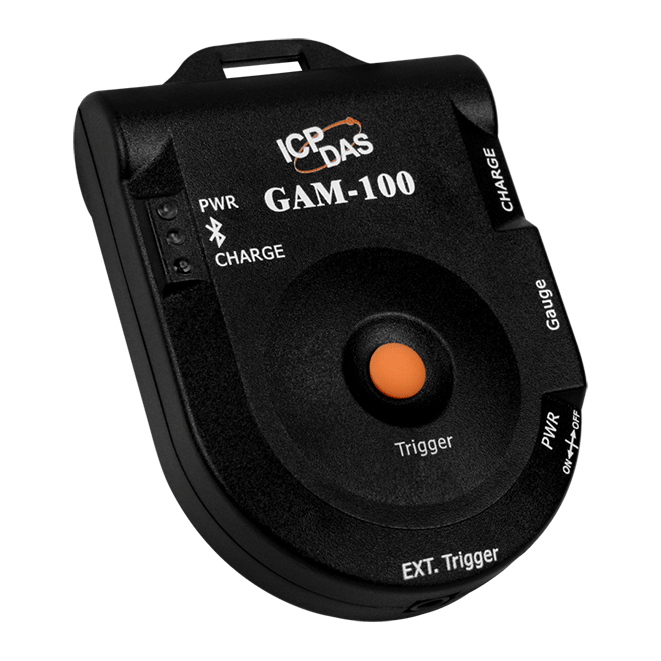

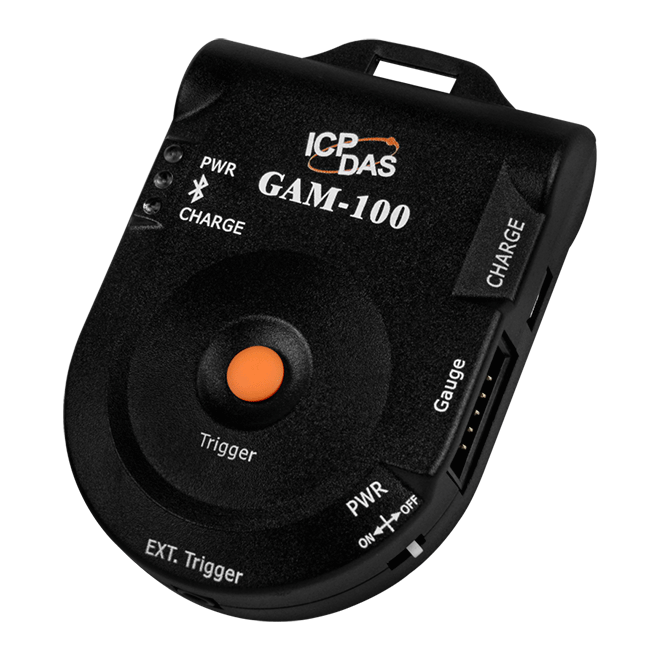

GAM-100

$169.00
The device operates at 2.4 GHz frequency with Bluetooth 4.0, offering a wireless transmission range of up to 20 meters, supporting Mitutoyo SPC data transmission, with LED indicators for battery, RF link, and charging, allowing for different transmission rates and trigger modes, powered by a rechargeable Li-ion battery lasting 100 hours at 10 Hz, and supports Android app for data acquisition an...
Availability: IN STOCK | FASTEST DELIVERY : Saturday, Oct 10 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: Bluetooth
Review: Write your review
Resources:

  • Frequency: ISM 2.4 GHz
  • Standard: Bluetooth 4.0
  • Wireless transmission range up to 20 meters (Line of Sigh)
  • Spport Mitutoyo SPC data trnasmission
  • LED indicators for Battery / RF link / Charge LEDs
  • Support different transmission rate: 1/2/5/10 Hz
  • Support Trigger button and 3.5 mm foot switch connector to log data
  • Support different trigger mode: Single and Continuous
  • Power by micro USB chargeable Li-ion battery
  • Battery Usage Life: 100 HR/ 10 Hz
  • Support Android APP for gauge data acquisition and configuration

Specifications

CPU Module
CPU 32 bit, Microprocessor
LED Indicators
Status 1 x Battery
1 x RF link
1 x Battery Charge
RF
Antenna 1.0 dBi chip antenna
Standard Bluetooth 4.0
Transmission Cycle 1, 2, 5, or 10 Hz, configured by APP
Transmission Distance (LoS) 20 m
Mitutoyo Gauge
Type ID-S1012MX
NTD 10-6:PMX
Power
Charge Interface Micro USB
Battery Usage Life 100 hours / 10 Hz
Battery Rechargeable Li-ion battery
Mechanical
Casing Plastic
Dimensions (mm) 84 x 59 x 21 (W x L x H)
Environment
Operating Temperature 0 ~ +45 °C
Storage Temperature 0 ~ +45 °C
Humidity 10~90%
