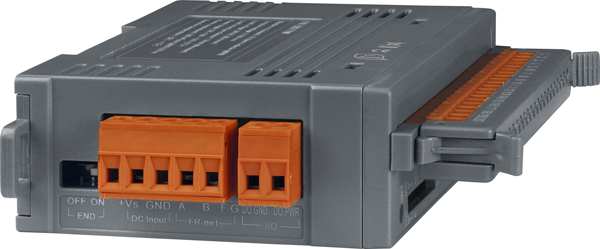

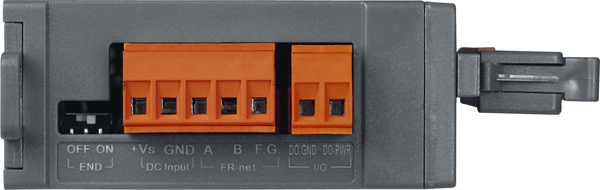

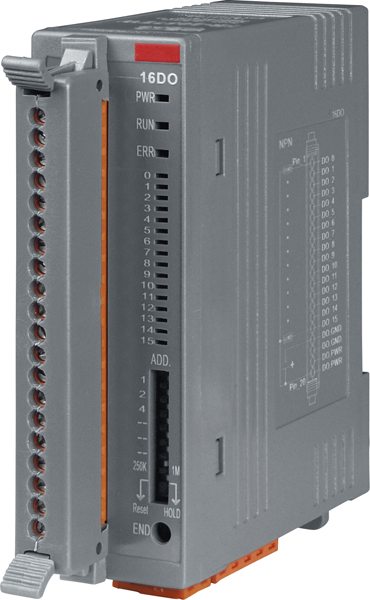

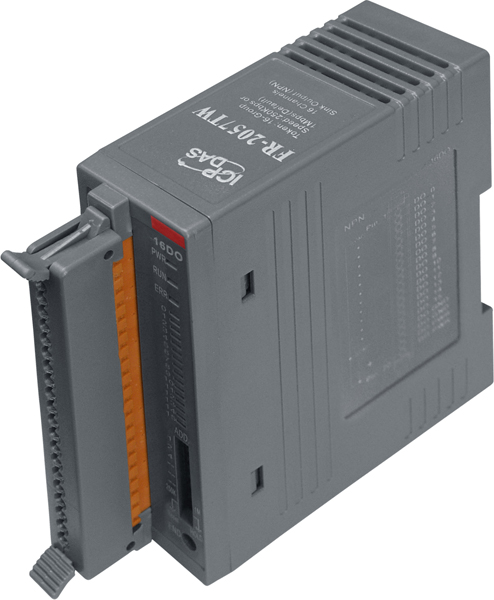

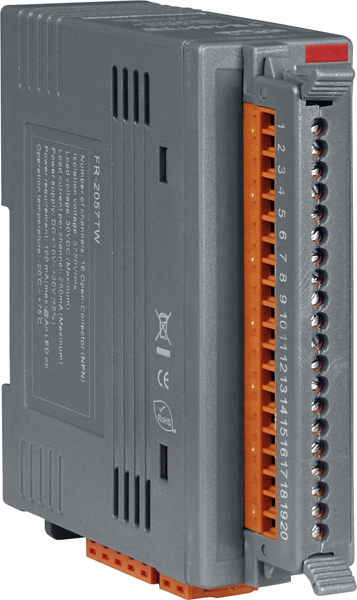

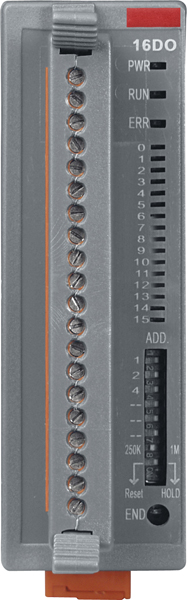

The FR-2053TA has 16-channel isolated Sink/Source input, while the FR-2057TW has 16-channel isolated sink output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053TA/2057TW; refer to literature related to I-7188EF, I-8172, FRB-100/200/200U. |
||
|
||
|
||
| Digital Output | |
| Output Channel | 16 |
| Output Type | Sink, Open-Collector (NPN) |
| Load Voltage | 30VDC, Max |
| Load Current | 250mA, Max |
| Isolation Voltage | 3750Vrms |
| Interface | |
| 2-wire cabling | CPEV 0.9 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
| Transfer distance | Max. 400m for speed 250Kbps Max. 100m for speed 1Mbps(Default) |
| LED Indicators | Power, Communication Run, Communication Error, Terminal resistor,Digital output |
| Transfer speed | 250Kbps and 1Mbps(Default) |
| Cyclic scan time | 2.88ms for speed 250Kbps 0.72ms for speed 1Mbps(Default) |
| Connection | Removable 20-pin Terminal Block |
| Power | |
| Input Voltage Range | +10 ~ +30VDC (Non-isolation) |
| Power consumption | 2.4W Max |
| Protection | Power reverse polarity protection |
| Frame Ground for EMS Protection | Yes |
| Connection | 5-Pin Removable Terminal Block |
| Mechanical | |
| Case | Plastic |
| Flammability | UL 94V-0 materials |
| Dimensions | 32.5mm x 110mm x 102 mm (W x H x D) |
| Installation | DIN-Rail |
| Mechanical | |
| Operating Temperature | -25 °C~ +75°C |
| Storage Temperature | -30 ~ +85°C |
| Ambient Relative Humidity | 10% to 90% non-condensing |
