Functional Description |
||||||||
|

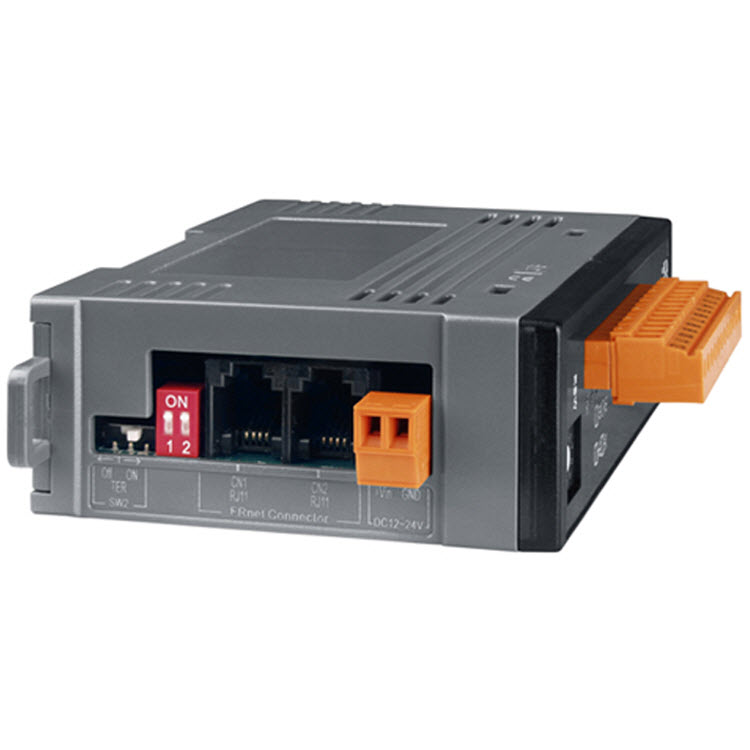

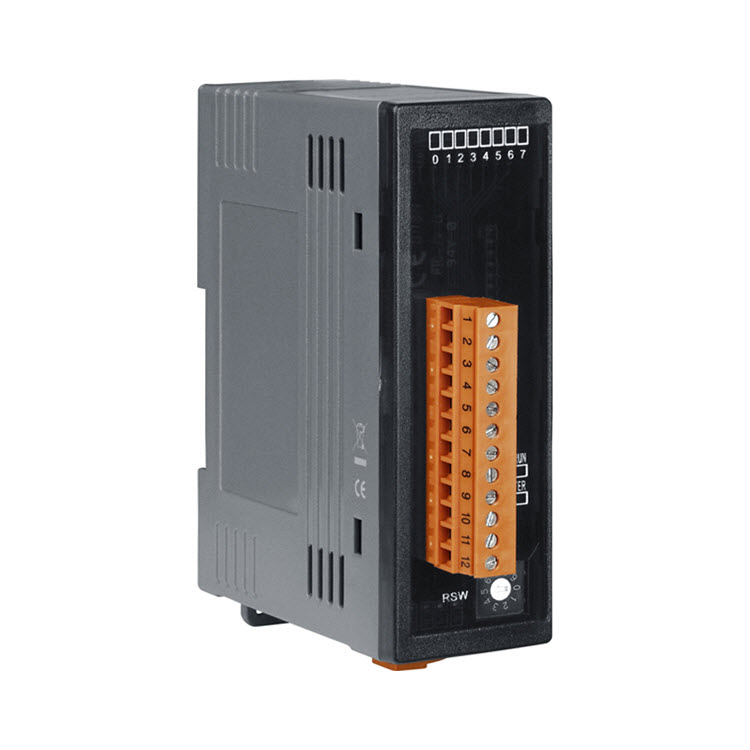

The FR-2152T/FR-2152TA has 8-channel isolated photo-coupler input and the transfer speed is fixed at 1M bps. The default signal connector of FR-2152T/FR-2152TA is a 12-pin 0.15” screw terminal connector. FR-2152T and 2152TA each apply respectively to NPN-type and PNP-type discrete output modules. According to different applications, the users can choose suitable modules. The FR-2100 I/O module has a FRNet interface. The users can daisy chain several FR-2100 modules together. Via FRNet, the FR-2100 modules can extend the discrete I/O control of PC and PAC easily. For further information about the networking of FR-2100 series; please refer to literature related to I-7188EF, I-8172, FRB-200. |
||||||||
Features |
||||||||
|
||||||||
|
||||||||
|
| 6P4C RJ-11 modular connector with Cat.3 cable (2P twisted-pair cable) for easy wiring( When different cables are used, the transmission distance may change). | |
| Power consumption | 2.0 W (Max.) |
| Power requirement | 12-24 V DC |
| Operating temperature | -25°C to +65 °C |
| Operating humidity | 10% ~ 95% RH, non-condensing |
| Storage temperature | -30°C to +85°C |
| Storage humidity | 5% ~ 95% RH, non-condensing |
| Weight | approximately 120g |
| Dimensions | 99 mm x 32 mm x 83 mm |
| Input Isolation | 1 KVdc |
| Input Impedance | 4.7 K Ohm |
| Input points | 8 channels |
| Input Voltage range | Logic H: 10~24 V |
| Logic L: 0~3 V | |
| Response Time | Turn-On delay time: less than 0.15 ms |
| Turn-Off delay time: less than 0.05 ms | |
| Transmission | Transfer speed:1 M bps |
| Cyclic scan time:0.72 ms | |
| Transfer distance:Max. 100 m | |
