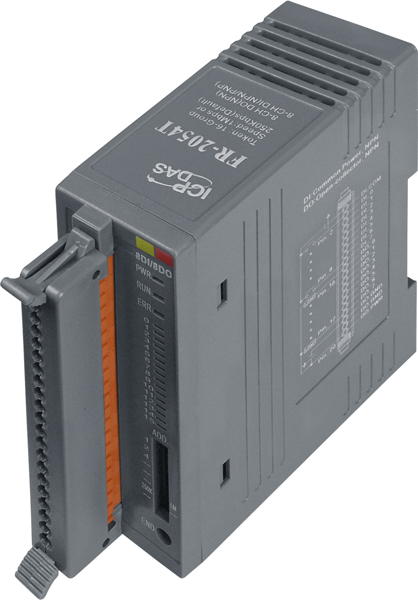

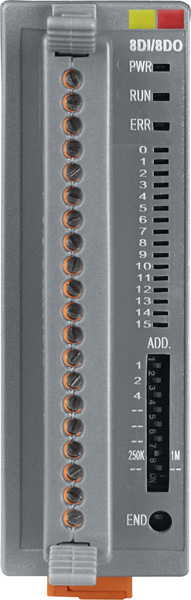

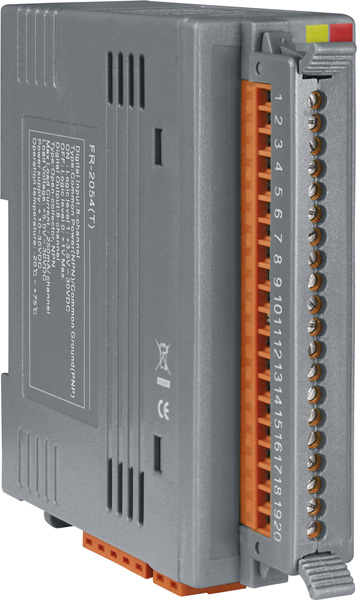

The FR-2054T module provides 8 Isolated Sink Type Digital Outputs and 8 Isolated Sink/Source Digital Inputs. The I/O data transmission is controlled by the FRnet control chip developed by ICPDAS. FRnet was designed to provide deterministic high speed network communication. The communication mechanism is dominated by the token-stream, which is generated by the network manager located at a specific node (SA0). This manager provides for fixed scan-time and I/O synchronization capabilities without the need of any special communication protocol.
Special anti-noise circuitry has also been built into the FRnet control chip to ensure communication reliability. This distributive digital output module must be connected to other modules or a host controller with a network manger built in.
| Digital Output | |
| Output Channel | 8 |
| Output Type | Sink, Open-Collector (NPN) |
| Load Voltage | 30 VDC, Max. |
| Load Current | 250mA, Max. |
| Isolation Voltage | 3750 Vrms |
| Digital Input | |
| Input Channel | 8 (Sink/Source) |
| Input Type | Isolation, One Common for All Digital Inputs |
| On Voltage Level | +19 VDC ~ 30 VDC |
| Off Voltage Level | +11 VDC max |
| Input Impedance | 3.3 kOhm |
| Isolation Voltage | 3750 Vrms |
| Interface | |
| 2-wire cabling | 2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
| Transfer distance | Max. 400m for speed 250Kbps Max. 100m for speed 1Mbps(Default) |
| LED Indicators | Power, Communication Run, Communication Error, Terminal resistor, Digital input/output |
| Transfer speed | 250Kbps and 1Mbps(Default) DIP Switch Settings |
| Cyclic scan time | 2.88ms for speed 250Kbps 0.72ms for speed 1Mbps(Default) |
| Connection | Removable 20-pin Terminal Block |
| Power | |
| Input Voltage Range | +10 ~ +30 VDC (Non-isolation) |
| Power consumption | 2W Max |
| Protection | Power reverse polarity protection |
| Frame Ground for EMS Protection | Yes |

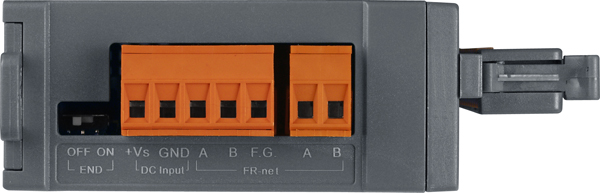

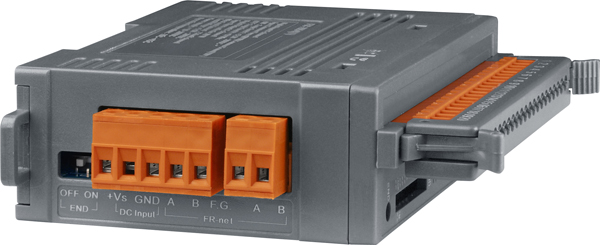

| Connection | 5-Pin Removable Terminal Block |
| Mechanical | |
| Casing | Plastic (Flammability UL 94V-0) |
| Dimensions (W x L x H) | 33 mm x 102 mm x 110 mm |
| Installation | DIN-Rail |
| Mechanical | |
| Operating Temperature | -25°C ~ +75°C |
| Storage Temperature | -30°C ~ +85°C |
| Ambient Relative Humidity | 10% ~ 90% RH, non-condensing |
