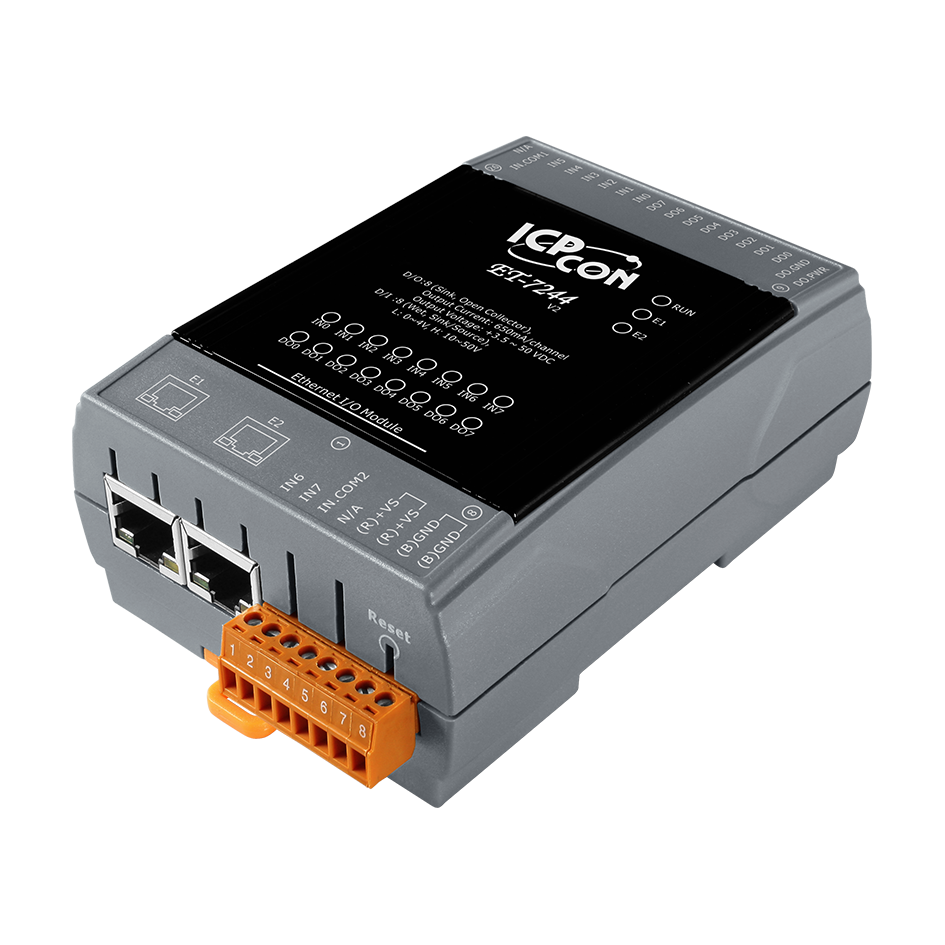

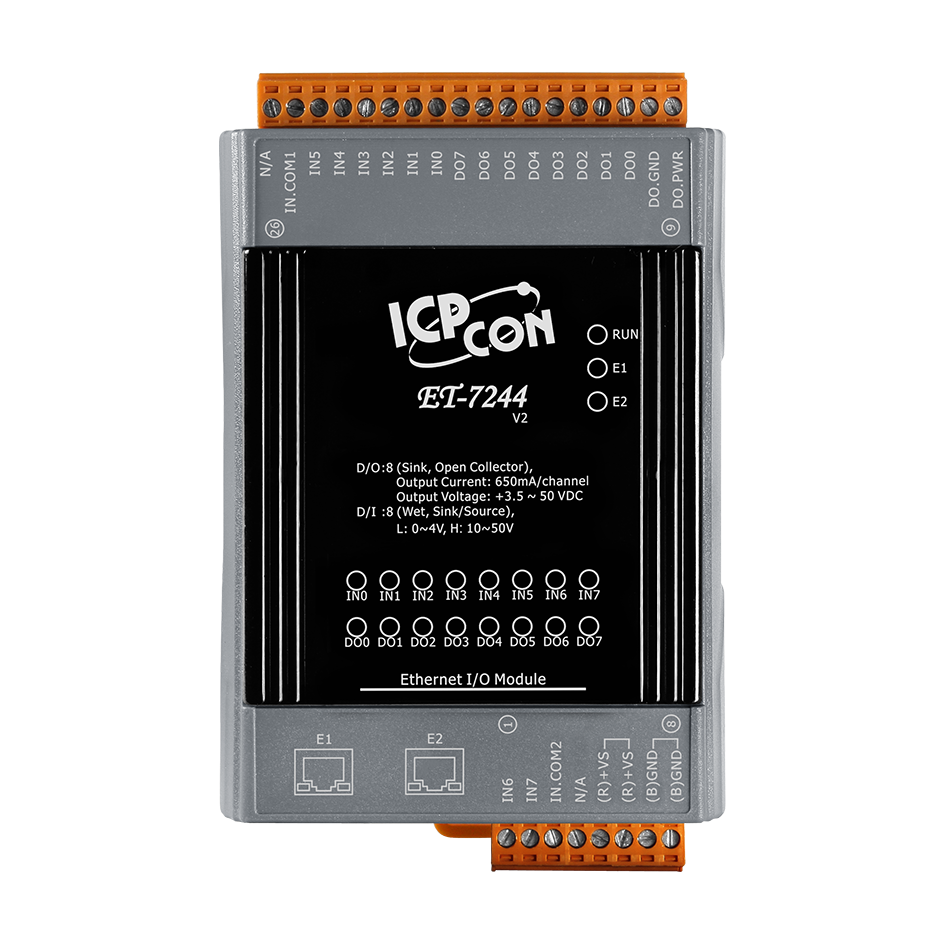

The ET-7044/PET-7044/ET-7244/PET-7244 provides 8 wet contact digital input channels and 8 sink-type digital output channels. It features optical isolation for 3750 Vrms of transient overvoltage protection but doesn’t provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter and each output channel can drive 300 mA load. The power-on value and safe value of digital output channel are programmable. It can safely be used in applications where hazardous voltages are present.
| Software | |
| Built-In Web Server | Yes |
| Web HMI | Yes |
| I/O Pair Connection | Yes |
| Communication | |
| Ethernet Port | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | No |
| Protocol | Modbus/TCP, Modbus/UDP |
| Security | ID, Password and IP Filter |
| Dual Watchdog | Yes, Module (0.8 second), Communication Programmable over DCON |
| LED Indicators | |
| for (System Running) | Yes |
| for (Ethernet Link/Act) | Yes |
| for DI/DO status | Yes |
| PoE Power | - |
| 2 Way Isolation | |
| Ethernet | 1500 VDC |
| I/O | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV Contact for Each Terminal and 8 kV Air for Random Point |
| EFT (IEC 61000-4-4) | +/-4 kV for Power |
| Power Requirements | |
| Reverse Polarity Protection | Yes |
| Powered from Terminal Block | Yes, 12 ~ 48 VDC |
| Powered from PoE | - |
| Consumption | 3.3 W (Max) |
| Mechanical | |
| Dimensions (W x L x H) | 76 mm x 120 mm x 38 mm |
| Installation | DIN-Rail or Wall mounting |
| Environmental | |
| Operating Temperature | -25 C ~ +75 C |
| Storage Temperature | -30 C ~ +80 C |
| Humidity | 10 ~ 90% RH, non-condensing |
| Digital Input/Counter | |||
| Channels | 8 | ||
| Contact | Wet Contact | ||
| Sink/Source (NPN/PNP) | Sink/Source | ||
| On Voltage Level | +10 VDC ~ +50 VDC | ||
| Off Voltage Level | +4 VDC Max. | ||
| Over Voltage Protection | +70 VDC | ||
| Counters | Max. Count | 4,294,967,285 (32 bits) | |
| Max. Input Frequency | 500 Hz | 100 Hz | |
| Min. Pulse Width | 1 ms | 5 ms | |
| Input Impedance | 10 k | ||
| Digital Output | |||
| Channels | 8 | ||
| Type | Isolated Open Collector (Sink) | ||
| Max. Load Current | 300 mA/channel at 25°C Direct Drive Power Relay Module | ||
| Load Voltage | +10 VDC ~ +40 VDC | ||
| Overvoltage Protection | 60 VDC | ||
| Overload Protection | 1.1 A | ||
| Short-circuit Protection | Yes | ||
| Power-on Value | Yes, Programmable | ||
| Safe Value | Yes, Programmable | ||
