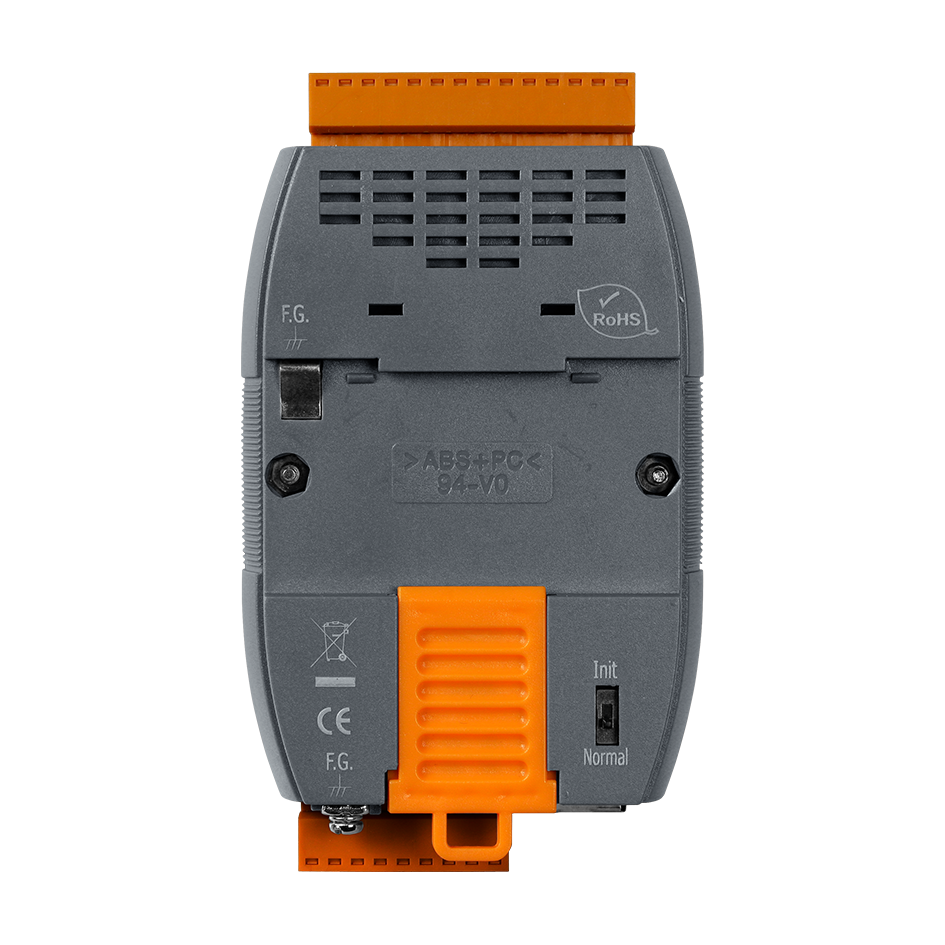

The PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.
Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.
Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.

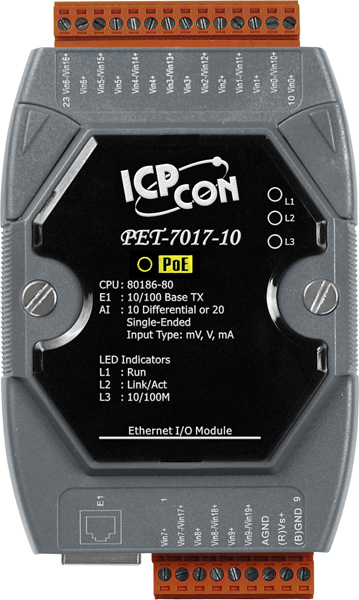

The ET-7017-10 is a 16-bit, 10-channel differential or 20-channel single-ended analog inputs module that provides programmable input range on all analog channels (+/-150 mV, +/-500mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0~20 mA and 4~20 mA). Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Jumper selectable for voltage or current input. The sampling rate of PET-7017 is changeable; there are fast mode and normal mode for your consideration. PET-7017 also has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation.
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis, Testing Equipment.
| Software | |
| Built-In Web Server | Yes |
| Web HMI | Yes |
| I/O Pair Connection | Yes |
| Communication | |
| Ethernet Port | 10/100 Base-TX with Auto MDI/MDI-X |
| Protocol | Modbus/TCP, Modbus/UDP |
| Security | ID, Password and IP Filter |
| Dual Watchdog | Yes, Module (0.8 second), Communication (Programmable) |
| LED Indicators | |
| L1 (System Running) | Yes |
| L2 (Ethernet Link/Act) | Yes |
| L3 (Ethernet 10/100 M Speed) | Yes |
| PoE Power | Yes |
| 2 Way Isolaiton | |
| Ethernet | - |
| I/O | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV Contact for each terminal and 8 kV Air for random point |
| EFT (IEC 61000-4-4) | +/-4 kV for Power |
| Power Requirements | |
| Reverse Polarity Protection | Yes |
| Powered from terminal block | Yes, 12 ~ 48 VDC |
| Powered from PoE | Yes, IEEE 802.3af, Class1 |
| Consumption | 3.8 W |
| Mechanical | |
| Dimensions (W x L x D) | 72 mm x 123 mm x 35 mm |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
| Analog Input | |||
| Input Channels | 10 differential or 20 single-ended (Note1), software selectable |
||
| Input Type | +/-150 mV, +/-500 mV, +/-1V, +/-5V, +/-10V +/-20 mA ,0 ~ 20 mA, 4 ~ 20 mA (jumper selectable) |
||
| Individual Channel Configuration | Yes | ||
| Resolution | Normal Mode | 16-bit | |
| Fast Mode | 12-bit | ||
| Sampling Rate | Normal Mode | 10 Samples/Sec. (Total) | |
| Fast Mode | 60 Samples/Sec. (Total) | ||
| Accuracy | Normal Mode | +/-0.1% | |
| Fast Mode | +/-0.5% or better | ||
| Zero Drift | +/-20 μV/°C | ||
| Span Drift | +/-25 ppm/°C | ||
| Overvoltage Protection | Differential | 240 Vrms | |
| Single-ended | 150 Vrms | ||
| Input Impedance | Voltage | 2 MΩ (Differential), 1 MΩ (Single-ended) | |
| Current | 125 Ω | ||
| Common Mode Rejection | 86 dB Min. | ||
| Normal Mode Rejection | 100 dB | ||
| Note1: Differential mode can be used for voltage input and current input. Single-Ended mode can be used for voltage input only. |
|||
