The ET-7000/PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.
Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.

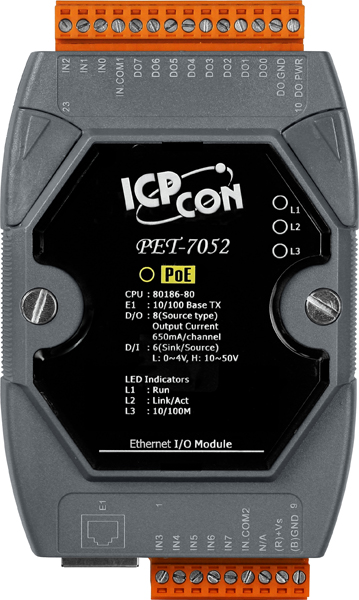

Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis, Testing Equipment.
| Software | |
| Built-In Web Server | Yes |
| Web HMI | Yes |
| I/O Pair Connection | Yes |
| Communication | |
| Ethernet Port | 10/100 Base-TX with Auto MDI/MDI-X |
| Protocol | Modbus/TCP, Modbus/UDP |
| Security | ID, Password and IP Filter |
| Dual Watchdog | Yes, Module (0.8 second), Communication (Programmable) |
| LED Indicators | |
| L1 (System Running) | Yes |
| L2 (Ethernet Link/Act) | Yes |
| L3 (Ethernet 10/100 M Speed) | Yes |
| PoE Power | Yes |
| 2 Way Isolaiton | |
| Ethernet | - |
| I/O | 3750 Vrms |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV Contact for each terminal |
| EFT (IEC 61000-4-4) | +/-2 kV for Power |
| Power Requirements | |
| Reverse Polarity Protectionn | Yes |
| Powered from terminal block | Yes, 12 ~ 48 VDC |
| Powered from PoE | Yes, IEEE 802.3af, Class1 |
| Consumption | 4.3 W |
| Mechanical | |
| Dimensions (W x L x D) | 72 mm x 123 mm x 35 mm |

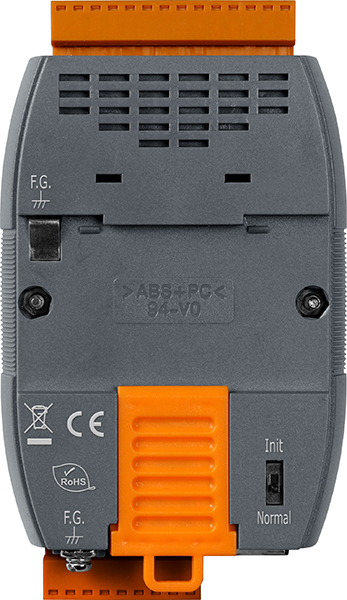

| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
| Digital Input/Counter | |||
| Input Channels | 8 | ||
| Type | Wet Contact (Sink, Source) | ||
| On Voltage Level | +10 VDC ~ +50 VDC | ||
| Off Voltage Level | +4 VDC max. | ||
| Input Impedance | 10 kΩ | ||
| Counters | Max. Count | 4,294,967,285 (32 bits) | |
| Max. Input Frequency |
500 Hz | ||
| Min. Pulse Width | 1 ms | ||
| Overvoltage Protection | +70 VDC | ||
| Digital Output | |||
| Output Channels | 8 | ||
| Type | Open Collector (Source) | ||
| Max. Load Current | 650 mA/channel at 25 °C | ||
| Load Voltage | +10 VDC ~ +40 VDC | ||
| Overvoltage Protection | 47 VDC | ||
| Overload Protection | - | ||
| Short-circuit Protection | Yes | ||
| Power On Value | Yes, Programmable | ||
| Safe Value | Yes, Programmable | ||
