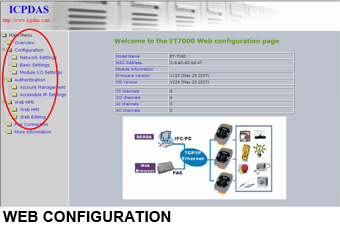

The ET-7000 series are web-based Ethernet I/O modules They feature a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as you surfing the Internet.
With the web HMI function, no programming or HTML skills are needed;dynamic and attractive web pages are created for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000 offers easily and safely access for users from anytime and anywhere!
The ET-7000 also supports Modbus/TCP protocol that makes perfect integration for ET-7000 to SCADA software.
The ET-7000 is designed for applications to industrial monitoring and measurement; therefore, we have made it toughly enough to survive the harsh and rough environment. The module contains 2-way isolation from noise and surges, one for digital inputs and the other for Ethernet. The ET-7000 has got a wide range of power input (10~30VDC) and operating temperature (-25°C~+75°C).

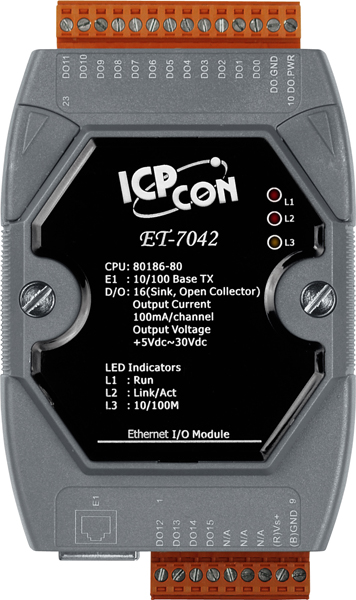

ET-7042 comes with FREE EZ Data Logger Software.
| CPU | ||
| CPU | 80186 CPU (80MHz) | |
| SRAM | 512K Bytes | |
| Flash Memory | 512K Bytes | |
| EEPROM | 16K Bytes | |
| Dual Watchdog | Yes | |
| Communication | ||
| Ethernet Port | 10 / 100 Base TX (With Link, Activity LED Indicator) Automatic MDI/MDI-X Crossover |
|
| Digital Output | ||
| Output Channels | 16 | |
| Output Type | Sink, Open Collector | |
| Output Voltage | +5Vdc to 30Vdc | |
| Max. Load Current | 100mA/channel at 25 °C, Direct drive power relay module | |
| 2 Way Isolation | ||
| Ethernet | 1500 Vrms | |
| DO | 3750 Vrms | |
| Mounting | ||
| Din Rail Mount | Yes | |
| Wall Mount | Yes | |
| Power Requirements | ||
| Protection | Power reverse polarity protection | |
| Required Supply Voltage | +10Vdc to 30Vdc (non-regulated) | |
| LED Indicator | Yes | |
| Power Consumption | 0.12A/24Vdc Max. | |
| Environment | ||
| Operating Temperature | -25 ~ +75 °C | |
| Storage Temperature | -30 ~ +80 °C | |
| Relative Humidity | 5% to 90% Non-condensing | |
| Certification | CE, FCC | |
| Dimensions | ||
| Dimensions( W x H x D) | 123 mm x 72 mm x 33 mm | |
