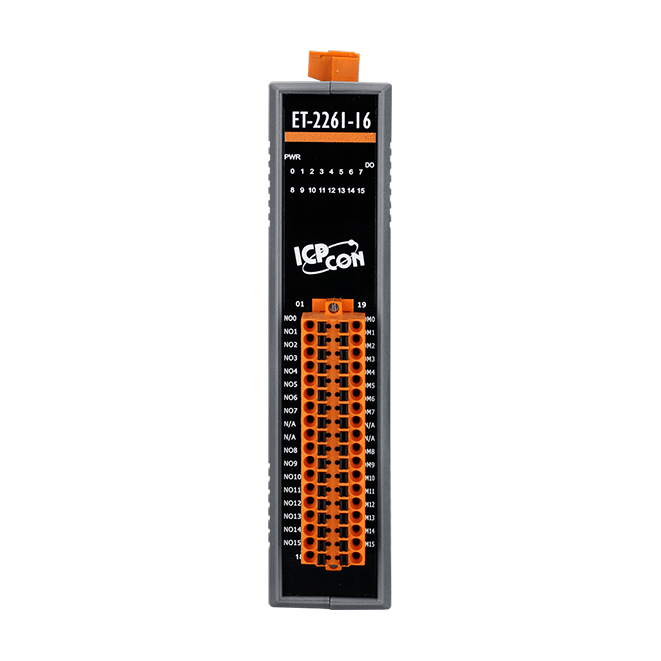

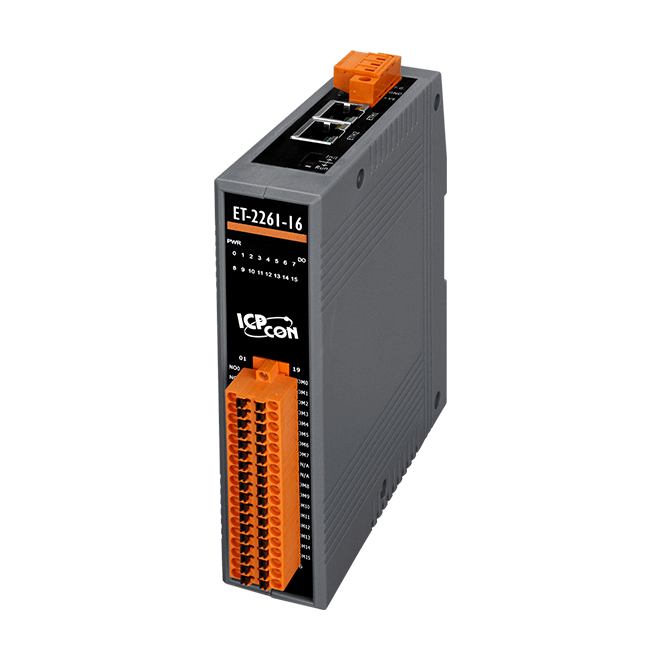

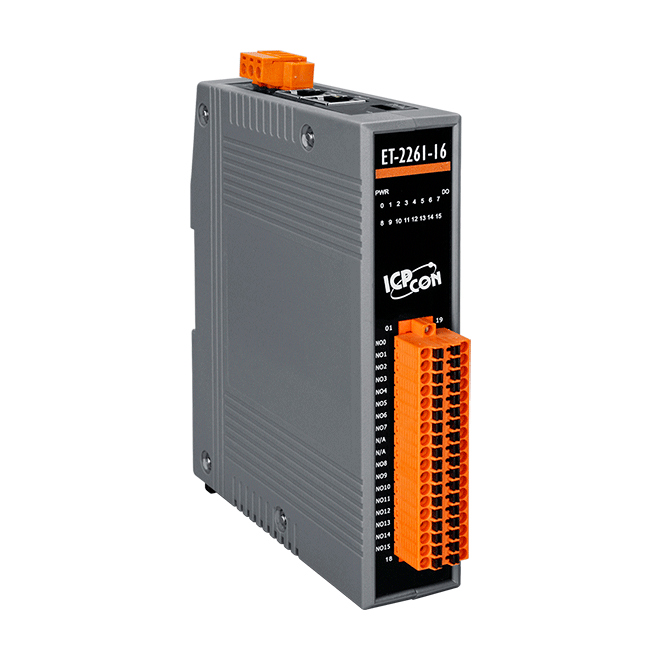

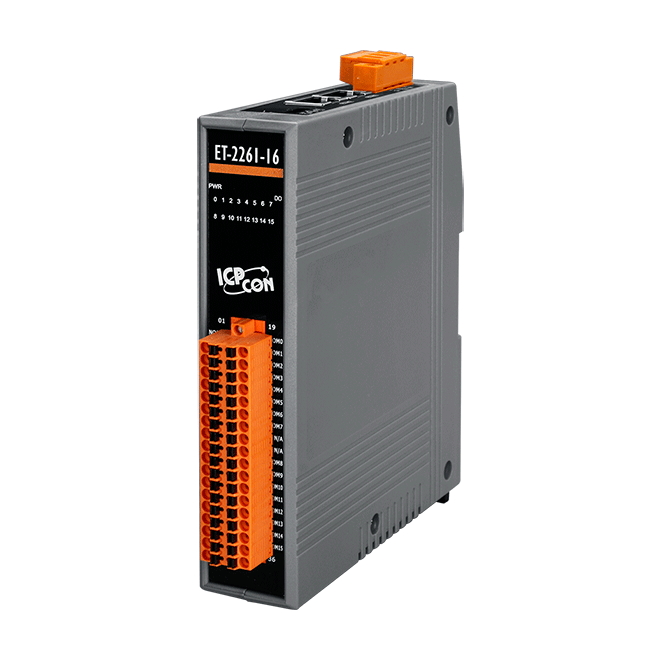

Providing various digital I/O functions, the ET-2261/2261-16 module is an Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2261/2261-16 module perfect integration with the HMI, SCADA, PLC and other software systems.
The ET-2261 supports 10 Form A electromechanical Relays Output channels, while the ET-2261-16 supports 16 Form A electromechanical Relays Output channels. With 2 Ethernet ports, the ET-2261/2261-16 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2261 module can poll the status of remote DI channels via the Modbus TCP protocol and write data to local DO channels.
It is equipped with removable terminal block connector for easy and robust wiring in industrial situations, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
| Software | |
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Yes, Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±8 kV Contact for Each Terminal and ±16 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Relay Output | |
| Channels | 16 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time | 10 ms (max.) |
| Release Time | 5 ms (max.) |
| Electrical Endurance | 10^5 ops |
| Mechanical Endurance | 2 x 10^7 ops |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

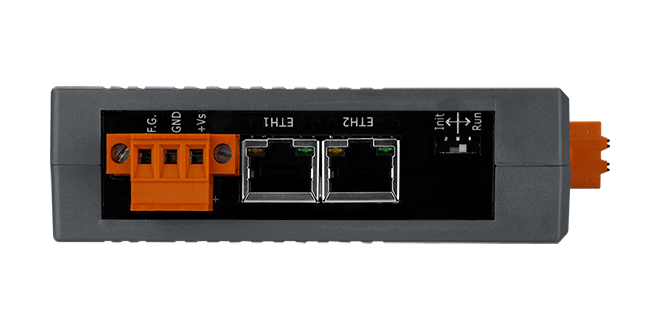

| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Security | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 4.71 W (max.) |
| Powered from Terminal Block | +10 to +48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environmental | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
