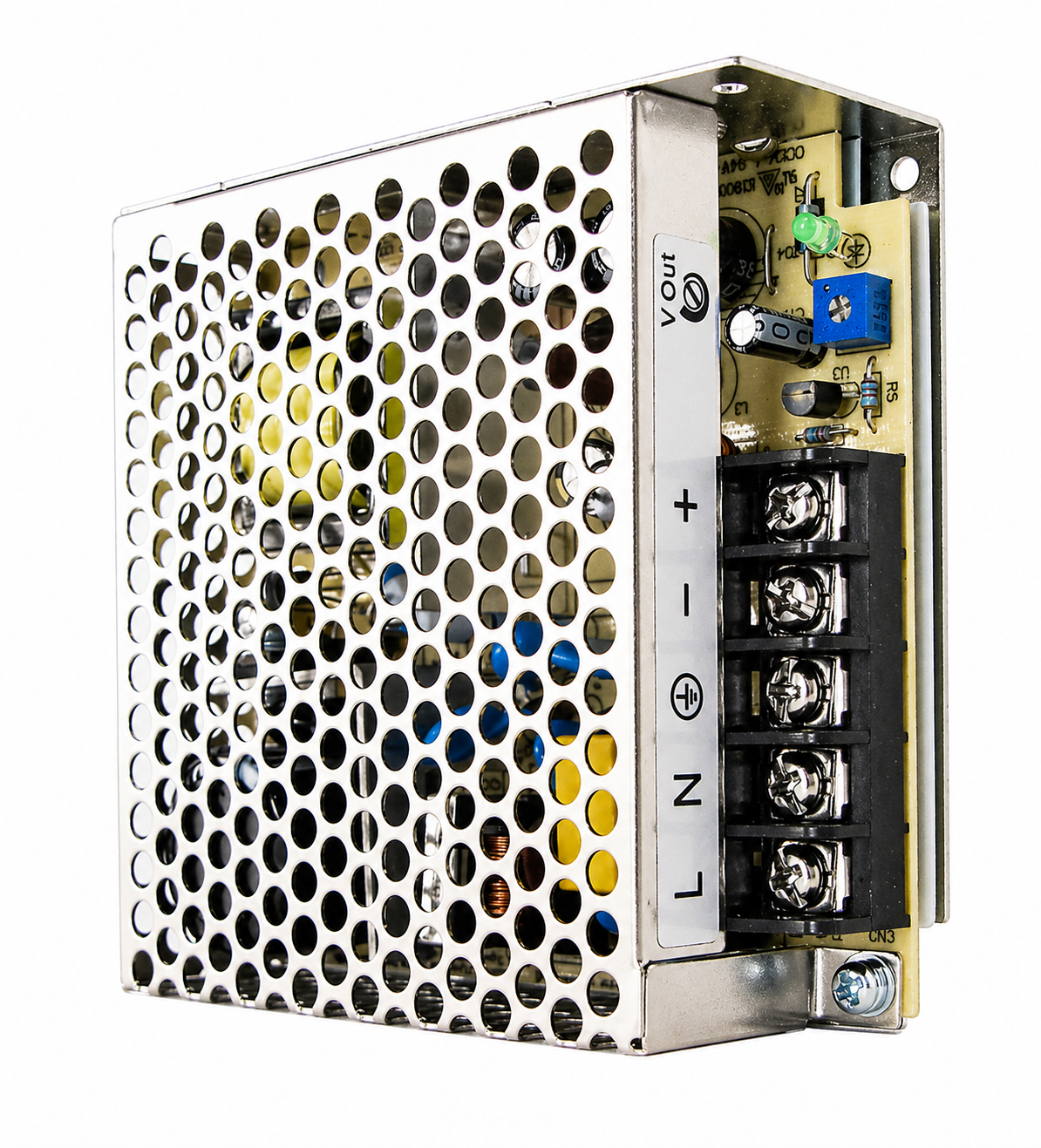

EPR-50-24 is a 24V/2.2A Power Supply. Supports a voltage input range between 100-250 V AC. Has output power over-current protection, over-voltage protection, and output voltage over-load protection. Supports a wide range of operating temperatures between -20 °C ~ +70°C. Works well with a Direct Bracket or L Bracket (sold separately).
This power supply can integrate with a Direct Bracket. This is often effective for applications with limited space.
An L Bracket can also be used. Depending on the physical needs, engineers may find more capabilities by using this type of bracket.
| Input | |
|---|---|
| Voltage Range | 100-240 V AC |
| Frequency | 50/60 Hz |
| Output | |
|---|---|
| Voltage | 24 V DC (Adjustable Output 21.6 - 26.4 V DC) |
| Output Current | 2.2 A |
| Efficiency | 84% |
| Load Regulation | +/-2% |
| Environmental | |
|---|---|
| Operating Temperature | -20°C - +70°C |
| Safety & EMC | |
|---|---|
| Certification | UL, CE |
| Protection from | Overload/Over Voltage/Short Circuit |
| Surge Protection | 300 V AC for 5 s. |
