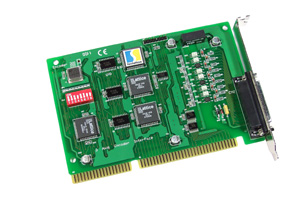

The ENCODER300 is a 3-axis quadrature encoder interface board for IBM PC/AT bus-compatible devices. Phase 0, phase 90 and index pulse inputs are provided for each encoder. Inputs may be single ended (A, B or C) or differential (A+, A-, B+, B-, C+ or C-). Power and ground connections are also provided for use by the encoder if needed. Inputs are conditioned by a four-stage digital fi lter, and the maximum input rate in quadrature decode mode is 1 MHz. The conditioned inputs are applied to a 16-bit counter, which may be used for quadrature decoding, pules or direction-input counting, or as a pulse input up/down counter.
| General | |
| Number of Axis | 3 |
| Slot Interface | ISA Bus |
| Resolution | 16 bit |
| Mode | Quadrant, CW_CCW, PULSE_DIR |
| Maximum Counting Rate | 1 MHz |
| Digital Output Channels | - |
| I/O Isolation | - |
| Connector | 25-pin D-Sub |
| Power Consumption | +5 V @ 500 mA |
| Environmental | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +80 °C |
| Ambient Relative Humidity | 0 ~ 90 % RH, condensing |
| Software Support | |
| Windows Driver/DLL/Lib | Windows 95/98/ME/NT4.0 |
| DOS Library | DOS 6.2 |
| Labview Development Kit | - |
| Linux Library | - |
