eLogger

eLogger is a free and user-friendly software to implement HMI and data logger functions on the ICP DAS Windows CE .NET 5.0 based PACs such as WinPAC and ViewPAC for simple I/O monitoring and controlling systems. It can save your money and shorten the production time.

eLogger can quickly and easily develop an application with flexible I/O configuration. The developing can be completed in just 5 simple steps: configuring I/O modules, configuring data logger, designing HMI layout pages, uploading the project to WinPAC/ViewPAC, running it. In the simple steps, there is no need of software programming knowledge. And if you want to add more powerful functions, eLogger also provides a flexible “shared memory” interface to allow your VS.NET and ISaGRAF programs co-work with it.

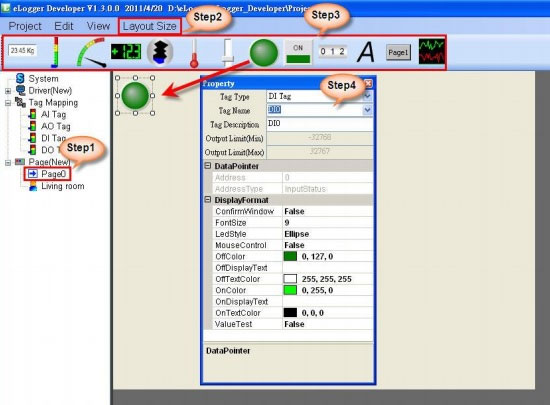

Design Pages

Features

1.PAC Support:

• Developer: Windows 2K,Windows XP, Windows Vista, Windows7
• Run time target: Windows CE.NET 5.0 platform, such as WP-8x3x series, WP-8x4x series, VP-23W1, VP-25W1
                                Windows CE.NET 6.0 platform, XP-8000-CE6


2. Driver Support:

• Module on slot
• I-8K series: I-8017HW, I-8024W, and all I-8K DIO module. (support list)
• I-87K series: DI, DO, AI, AO, counter, frequency, DI with latch function. (support list)
• Modbus serial master( support Modbus RTU/ Modbus ASCII)
• M-7000.
• Modbus RTU devices/Modbus ASCII devices.
• Modbus TCP master
• ET-7000.
• PET-7000 series.
• Modbus TCP devices.

3. HMI

• Elements: button, text box, linear gauge, angular gauge, LED numeral, LED indicator, tank, label, Plot.

• Pages: max. of 32 pages

4. Real Time Data Trend

• Max. of 5 trend line in one plot.

5. Value Scaling
Set gain and offset can scale analog values from volt or amp unit to another physical unit. For example: rpm for rotation, kg for weight.

6. Account Management

• 3 levels operating management: Admin, Power User, User.

•  : allowed      ○ : not allowed

7. Remote Maintenance

You can use eLogger Developer's remote control function to Upload / Run / Stop the project through the Ethernet.

8. Data Base

• Local data base: SQL embedded.
• Remote data base(not avalible): SQL 2005 on Windows platform.

9. Logic Control Programming

Via the " shared memory " , you can choose ISaGRAF or VS.Net to develop a logic control program and co-work with the elogger. Your programs can access the data of I/O module and exchange other temporary data through the "shared memory". You can focus on the logic control programming.

• ISaGRAF (IEC61131-3 standard PLC languages)
• Visual Studio .NET (C#, VB.NET) for Window CE.NET 5.0
