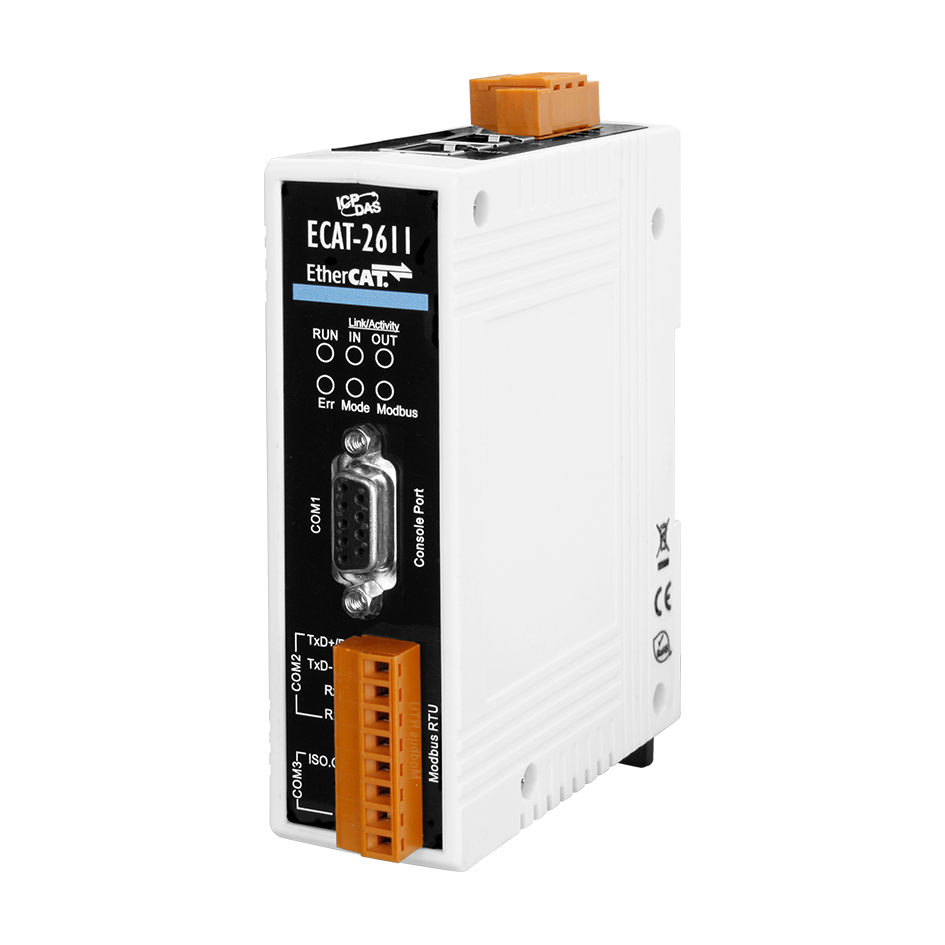

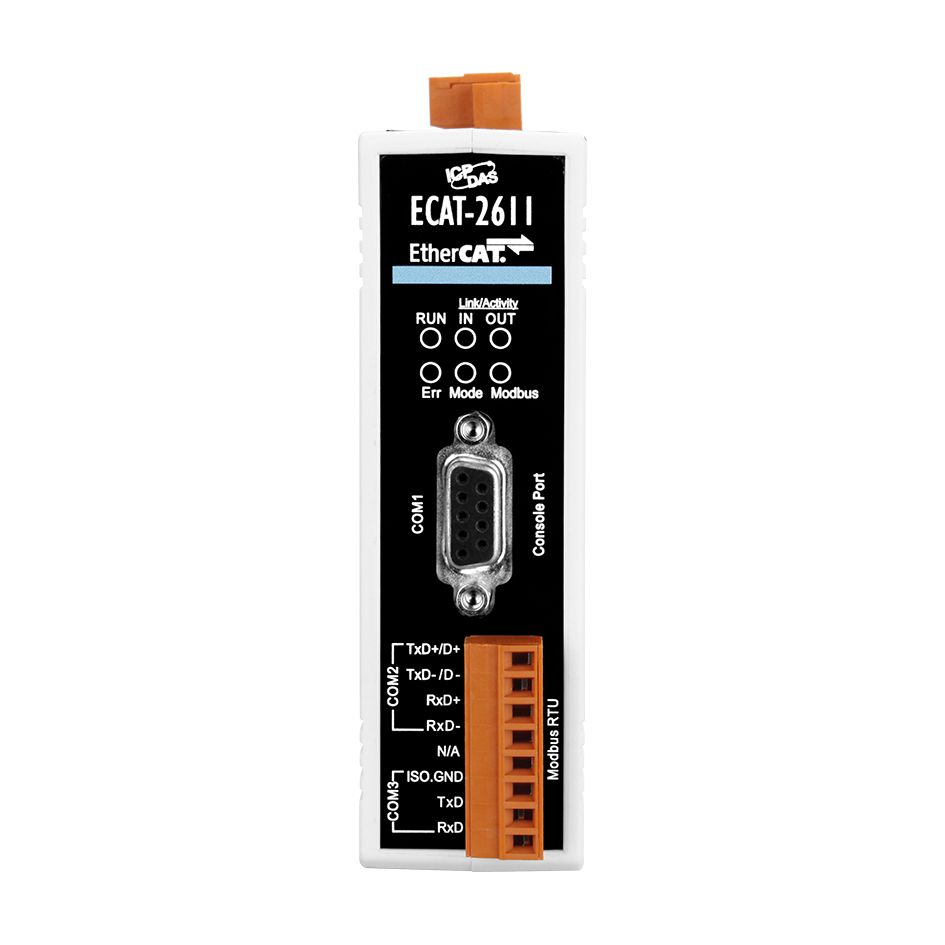

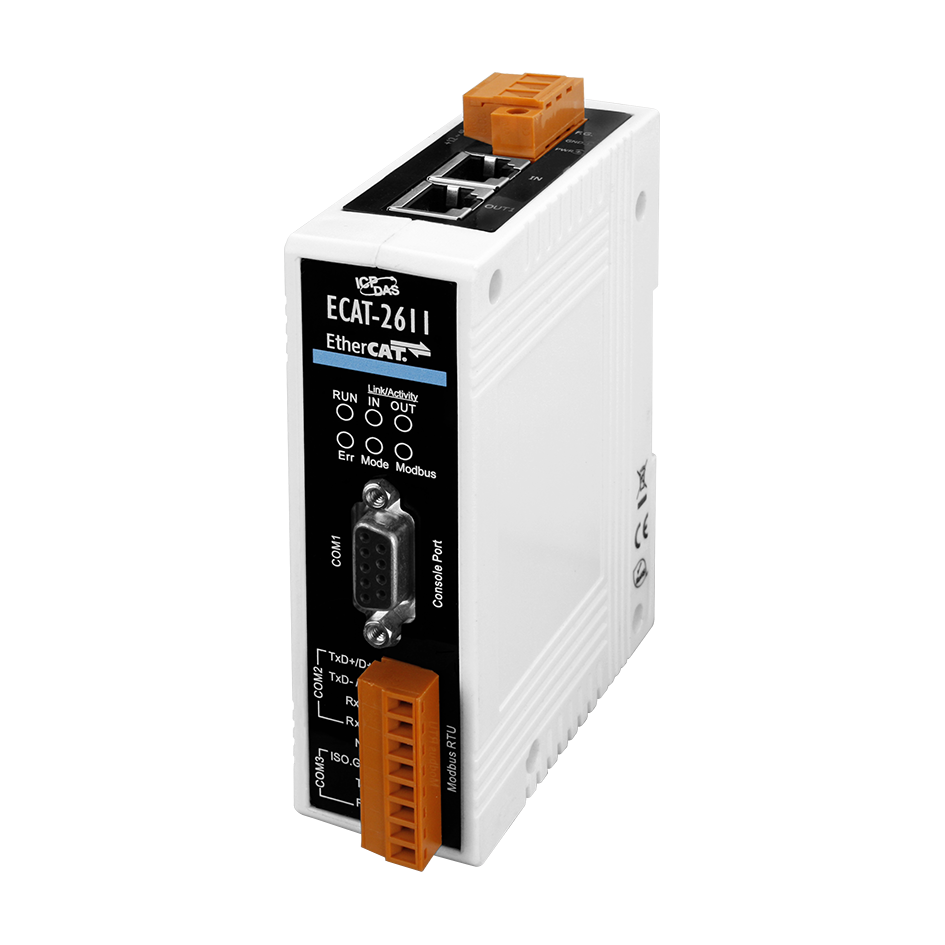

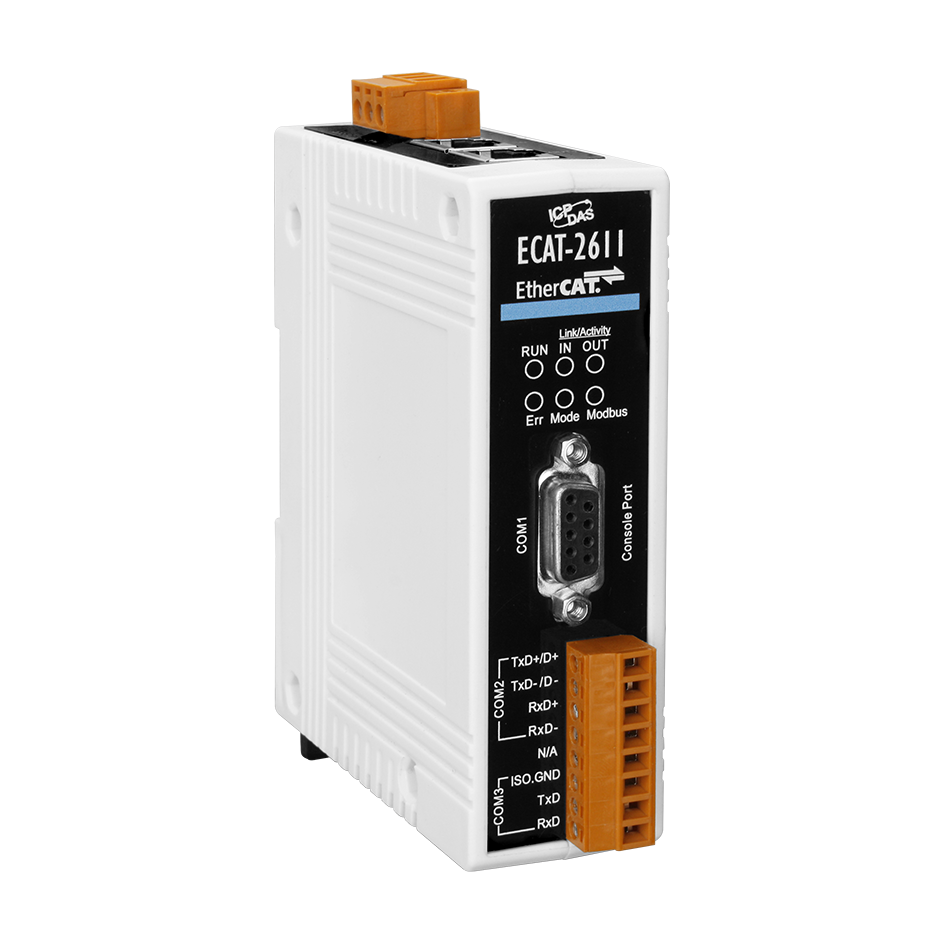

ECAT-2611

$889.00

EtherCAT Slave to Modbus RTU Slave Gateway (RoHS)

Availability: IN STOCK | FASTEST DELIVERY : Saturday, Sep 26 | Enter ZIP below for shipping options

Share On:
Categories:	EtherCAT junction Switch, Converter, and Gateway
Review:	Write your review
Resources:	Using ECAT-2000 with eLogger Software Data sheet User Manual Quick Start

The ECAT-2611 is a proven and trusted protocol converter gateway module that allows you to seamlessly inter-connect devices between EtherCAT and Modbus RTU networks. The ECAT-2611 acts as a Slave on both networks, allowing I/O data to be transferred between the two networks.

The ECAT-2611 provides a data exchange buffer that allows two different systems (EtherCAT Master and the Modbus RTU Master) exchange data easily and faster for more diverse applications.

Powerful MCU handles efficient network traffic

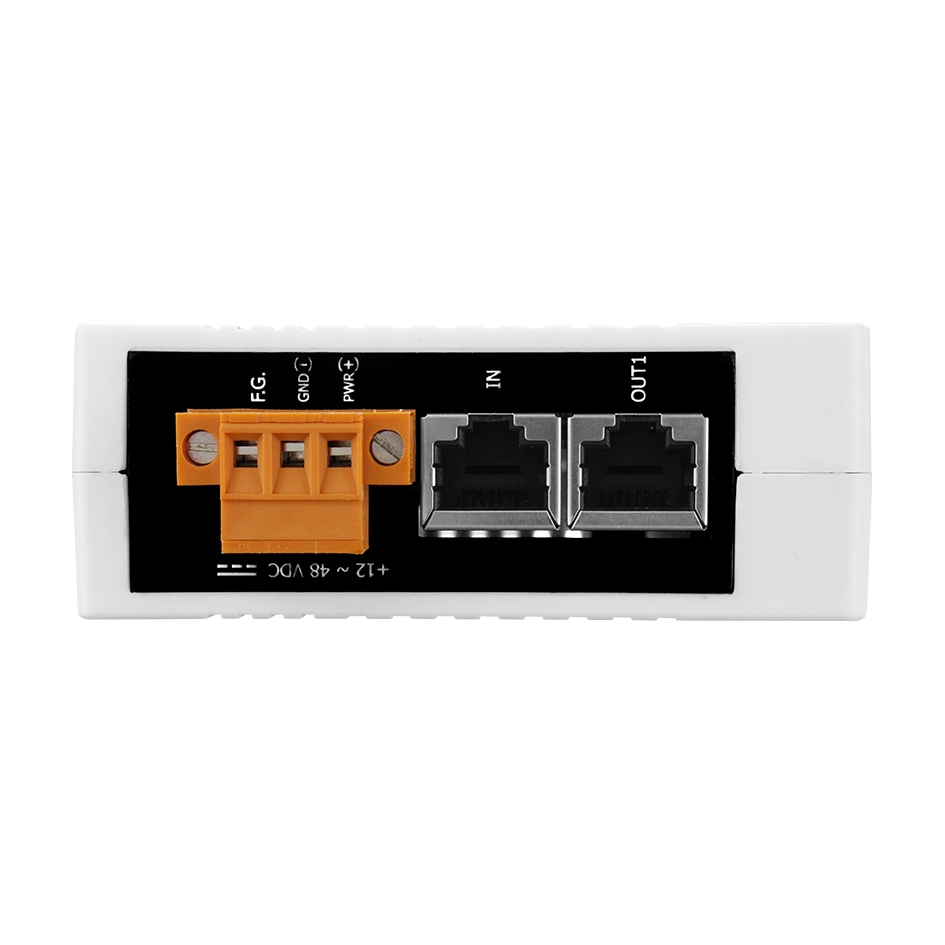

2 x RJ-45 EtherCAT connectors
Transfer of I/O data between two networks
Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
Requires no hardware or software changes to be made to the connected device
Compatible with all PLCs with EtherCAT support
Performs complete serial protocol conversion, no PLC function blocks required
Supports maximum 256 WORD Input and 256 WORD Output Data
Supports serial port interface
- Supports Modbus RTU (Salve) protocol
- Supports RS-232/422/485 Port
- Supports maximum Baud Rate 115200 bps
- Supports Modbus Function code 03, 04, 06 and 16

Applications

Specifications

Network Interface

Protocol

EtherCAT

RJ-45 Port

RJ-45 x 2
Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium:
Ethernet/EtherCAT Cable (Min. CAT 5e)

Communication Interface

Protocol

Modbus RTU (Slave)

Serial Interface (RS-232, RS-422, RS-485)

The RS-232, RS-422 and RS-485 cannot be used simultaneously

TxD, RxD, GND
TxD+, TxD-, RxD+, RxD-
Data+, Data-

Power Input

Redundant Input Range

+12 ~ +48 VDC

Power consumption

0.1 A @ 24 VDC

Protection

Power reverse polarity protection

Connector

3-Pin Removable Terminal Block (5.08mm)

Mechanical

Dimensions

110mm x 90mm x 33mm (H x W x D)

Installation

DIN-Rail

Environment

Operating Temp.

-25°C ~ 75°C

Storage Temp.

-30°C ~ 80°C

Humidity

10 ~ 90% RH, non-condensing
