EC4-ENC2A

$1,499.00

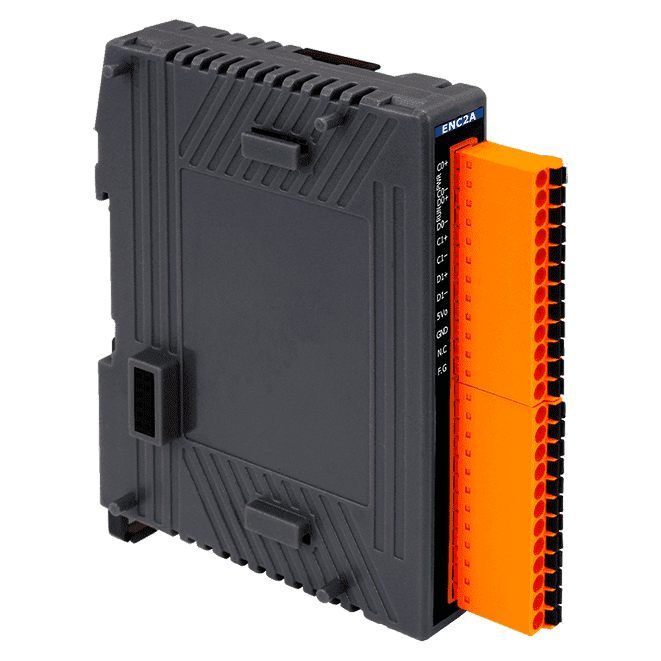

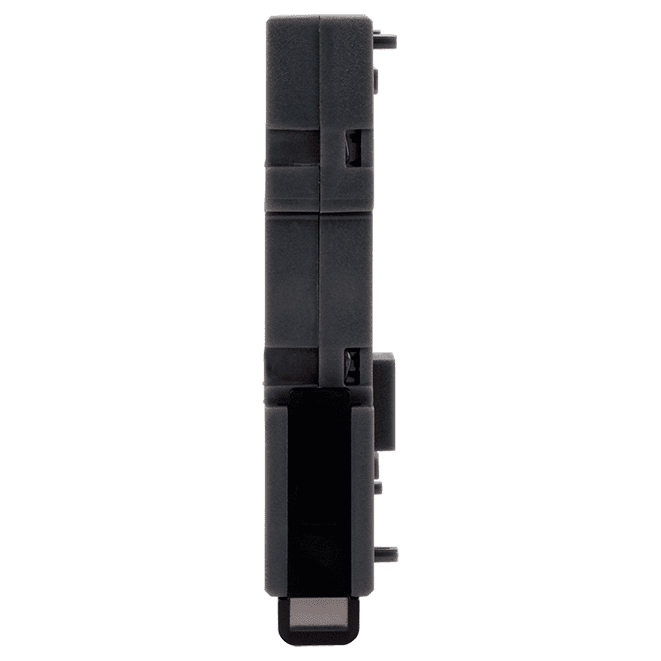

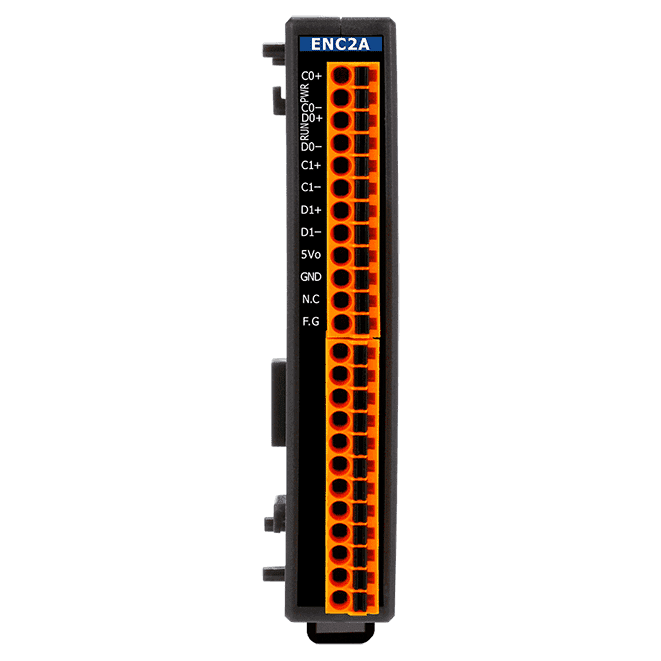

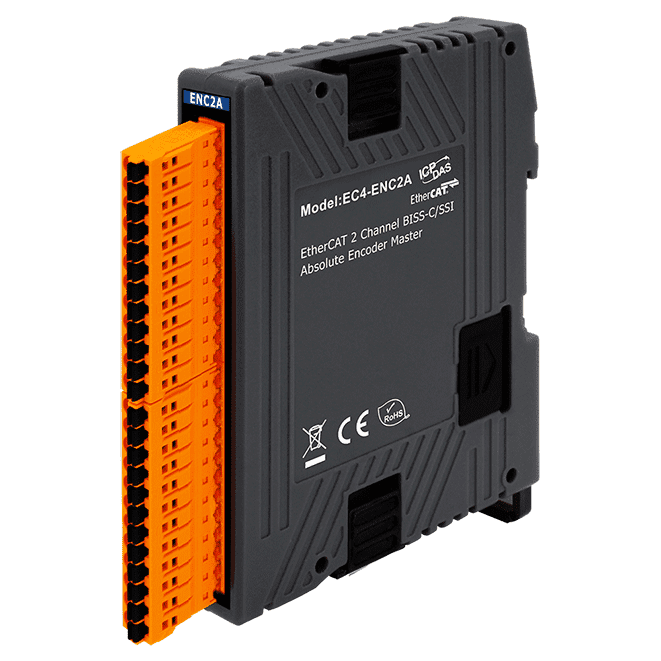

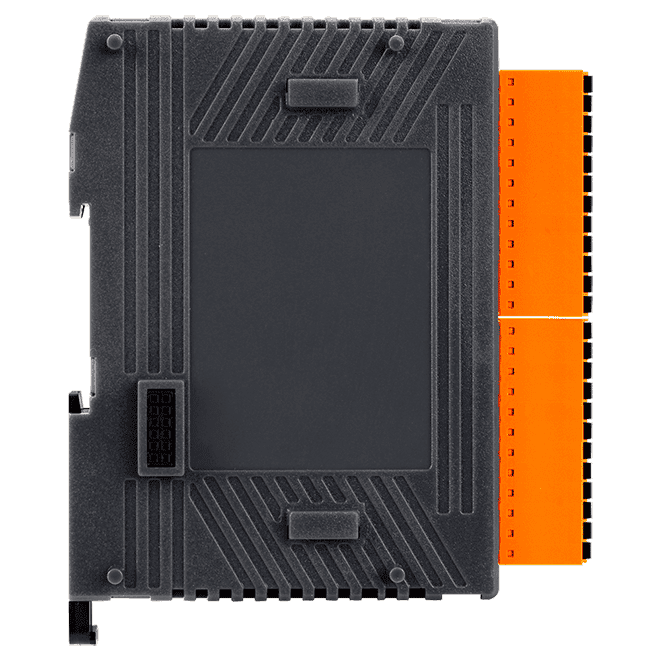

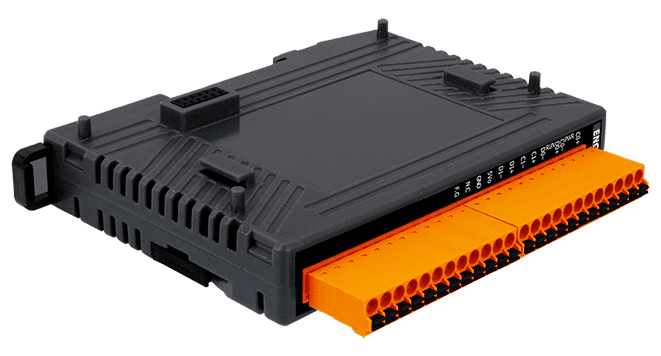

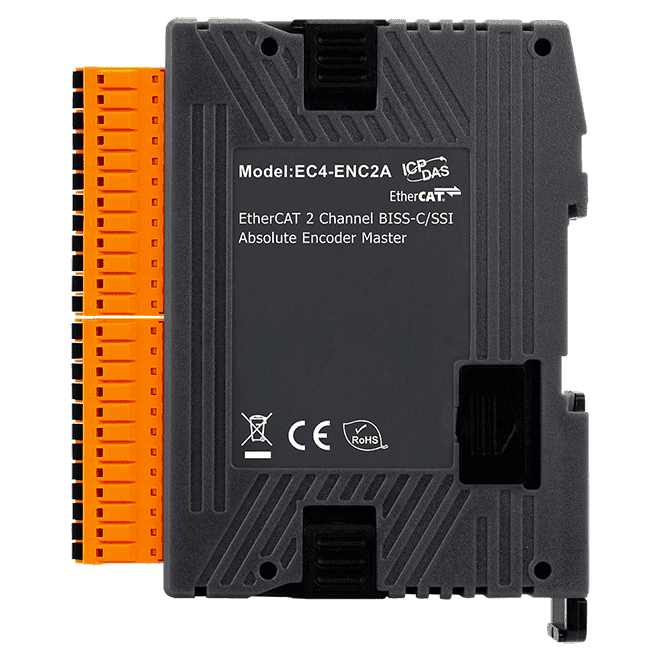

EtherCAT SubDevice Slim Module with Two Channel BISS-C/SSI Absolute Encoder Interface.
Availability: | FASTEST DELIVERY : Tuesday, Nov 3 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: Remote I/O Data Acquisition | Fieldbus Communication | EtherCAT Data Acquisition
Review: Write your review
Resources:

Introduction

The EtherCAT SubDevice EC4-ENC2A are absolute encoder Master stations. EC4-ENC2A provides two channels. Each channel is independent of each other. It supports two serial transmission interfaces: SSI (Serial Synchronous Interface) and BiSS-C (BiSS Continuous Mode, unidirectional). EC4-ENCxA also supports a maximum transmission frequency of 10MHz, a maximum transmission bit of 48bit(Including error bit, warning bit, CRC in BiSS-C mode), and Automatic compensation of cable delays in BiSS-C mode. The maximum cable length supported is 70 meters.



Features

  • On the fly processing: EtherCAT
  • 2 channels, 48-bit absolute encoder Master
  • Transmission interface: SSI, BiSS-C (unidirectional)
  • Data encoding mode : Binary, Gray
  • CRC generator polynomial can be customized, and the maximum setting is within CRC-8
  • Support CRC bit Invert
  • Maximum transmission pulse frequency : 10MHz
  • Simultaneous sampling of each channel
  • Supports Free-Run and Distributed Clock (DC) operation modes



ApplicationsEC4 Application

Precision Position measurement

Specifications

EMS Protection
EFT (IEC 61000-4-4)Signal: 1 KV Class B; Power: 1 KV Class B
ESD (IEC 61000-4-2)±4 KV Contact for each channel
LED Indicators
StatusPower, EtherCAT status
Encoder Input
No. of Axes2x encoder channel (0-1)
Resolutionmax. 48 bit position
Sampling TypeSimultaneous
Transmission InterfaceSSI mode
BiSS-C mode
Photo-isolation2000 VDC
Input Level5V (default)
Frequency10MHz
EtherCAT
ProtocolEtherCAT
Cycle Time100 s
Distributed ClocksYes
Power
Input Range+24 V DC
ConsumptionMaximum 4.5W
Mechanical
CasingPlastic
Dimensions (mm)17.5 108 90 (W L D)
InstallationDIN-Rail or Wall Mounting
Environment
Operating Temperature-25 ~ +75 °C
Storage Temperature-30 ~ +80 °C
Humidity10 ~ 90%, No condensation
