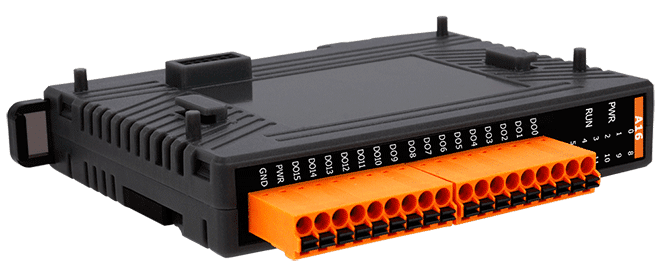

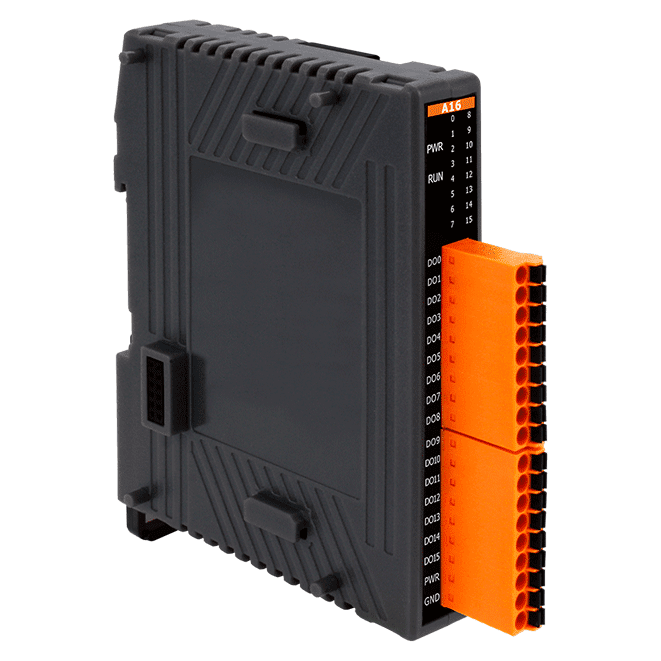

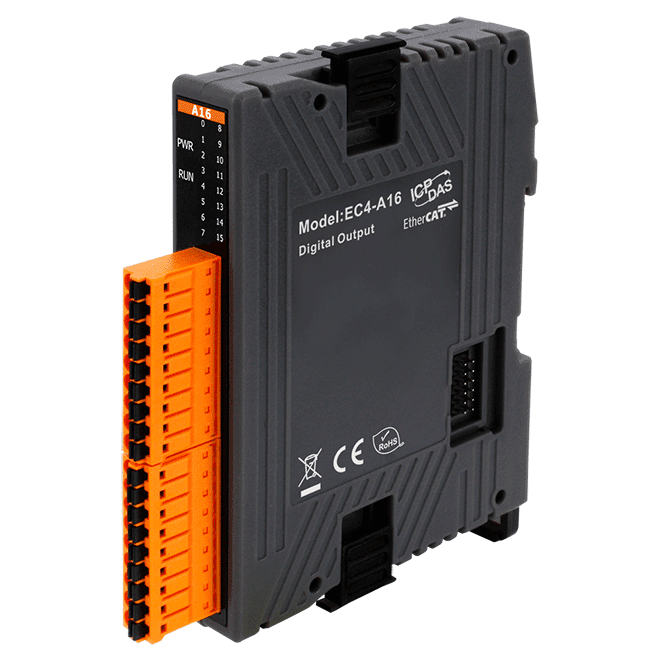

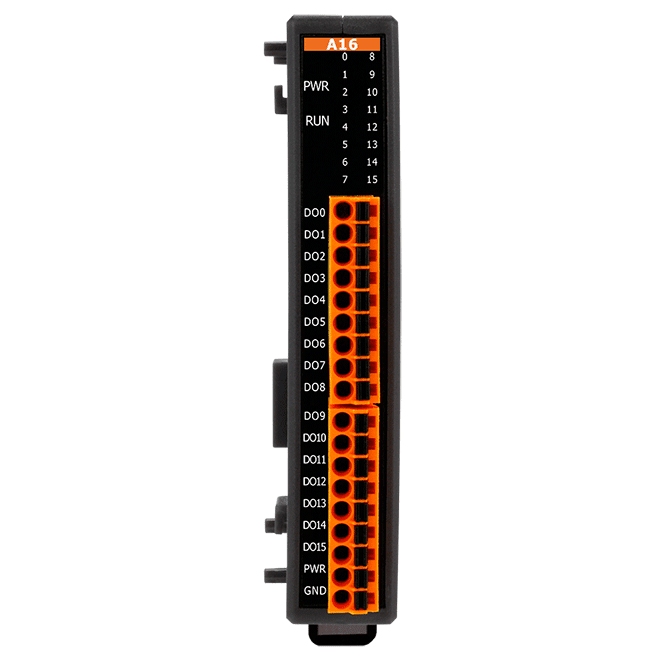

The EC4-A16 is an industrial I/O module designed with a slim-type form factor, featuring 16 isolated digital output channels. It features the EtherCAT protocol, providing a system with higher scalability and fewer cables. Users can check the current output status through LED indicators on the enclosure. In addition, the module has passed the test and verification of the conformance testing tool. It is also compatible with various standard EtherCAT Main Devices to enable diversified applications.
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±8KV(Air for Random Point) |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | N-MOS (Source), with internal flywheel diode |
| Load Voltage | 40 VDC Max. |
| Load Current | 500 mA/Channel (Source) |
| Isolation | 3000VDC |
| EtherCAT | |
|---|---|
| Cycle Time | 100 s |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 1.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 17.5 x 108 x 73 (W x L x D)(excluding terminals) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
