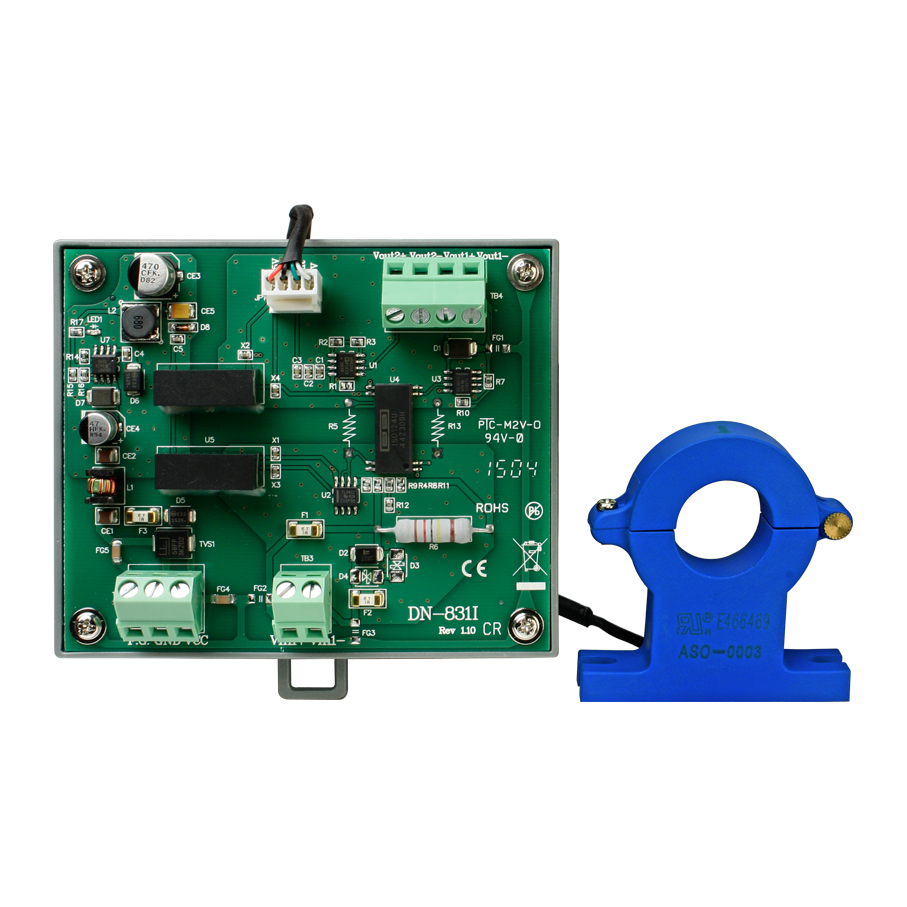

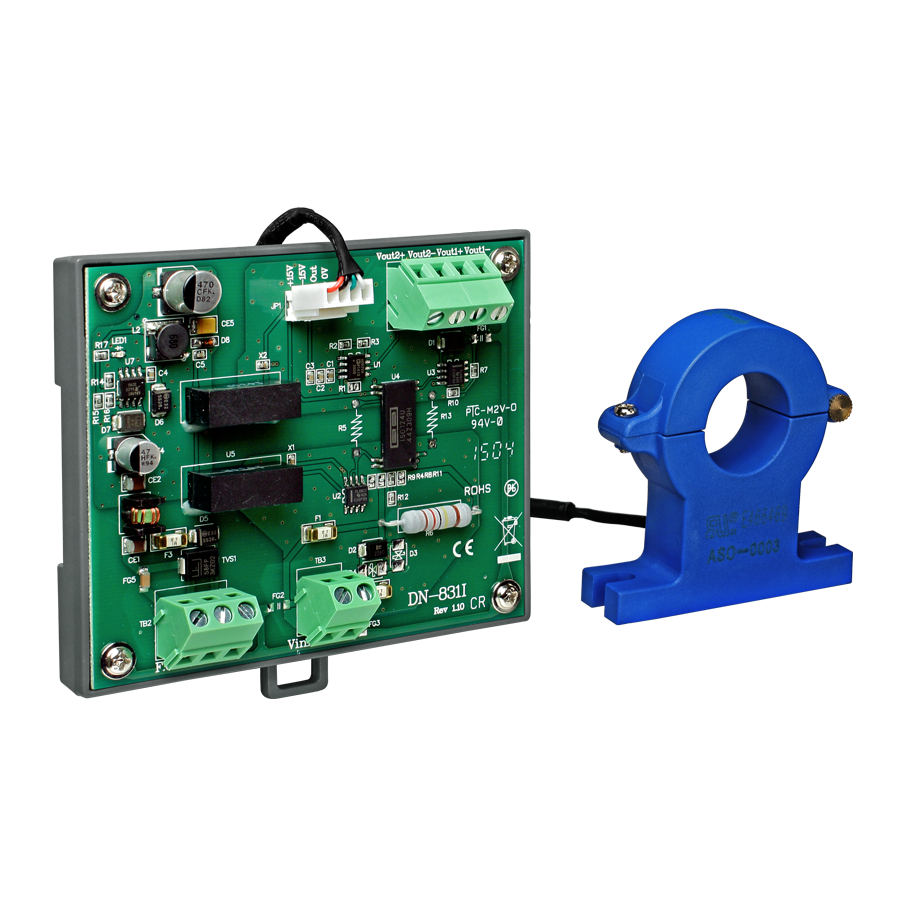

The DN-831I-100V-500A is 1-channel voltage attenuator and 1-channel current transformer. The maximum voltage input range is from ±100 V can be attenuated to ±10 V and the maximum current input range is from ±500 A can be attenuated to ±10 V. It provides 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with other ICP DAS USA’s analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS , to measure the high current.

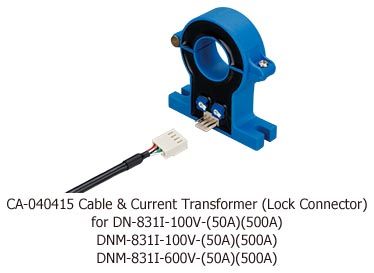

High Current Input
Channels
1
Input Type
AC/DC Current
Input Current Range
+/-50 A
Output Voltage Range
+/-10 VDC or 10 VAC
Accuracy
1% of FSR
Isolation voltage
2.5 KV @ 50 (60) HZ/1 min
Frequency bandwidth
0 50 KHz
CTΦ
Φ21 mm
High Voltage Input
Channel
1
Input Type
AC/DC Voltage
Input Range
+/-100 VDC
Output Range
+/-10 VDC or 10 VAC
Accuracy
1% of FSR
Frequency bandwidth
20 Hz 20 kHz
Isolation
Three Way Isolation
3000 VDC
EMS Protection
ESD (IEC 61000-4-2)
+/-4 kV contact for power line, input and output channels, 8 kV air for random point
Surge (IEC 61000-4-5)
+/-3 kV for power liner
Power Input
Input Range
+10 +30 VDC
Power Consumption
1.8 W
Mechanical
Dimensions (W x L x H)
96 mm x 103 mm x 30 mm
Housing
-
Metal
Installation
DIN-Rail Mounting
Environment
Operating Temperature
-25 +75 C
Storage Temperature
-30 +75 C
Humidity
10 90% RH, Non-condensing
