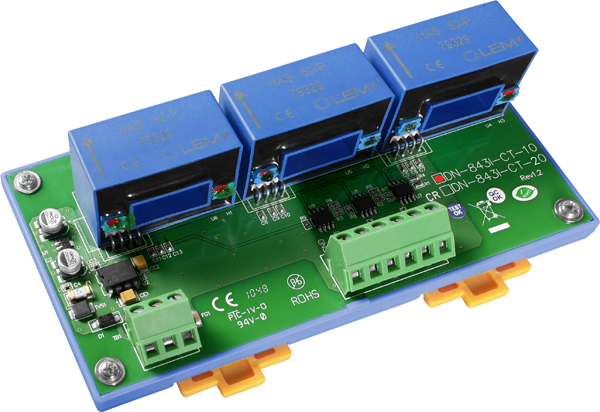

DN-843I-CT-1 is a current input sensor, it has the maximum input range ±1 A and converts to ±1.6 V. It can be used with the analog input modules such as I-7017R and I-87017R etc. to monitor or measure the high current.
| General | |
| Channels | 3 |
| Input Type | AC/DC Current |
| Output Type | AC/DC Voltage |
| Input Current Range | ±1 Amp |
| Output Voltage Range | ±1.6 V @ ±1 Amp |
| Max. Input Frequency | 50 kHz |
| Accuracy of Max. Voltage output | 1% Typical |
| ESD Protection | 4 kV, contact for each terminal |
| Power | |
| Power Consumption | 1 W |
| Environment | |
| Operating Temperature | -25 °C ~ 75 °C |
| Storage Temperature | -30 °C ~ 75 °C |
| Humidity | 5% ~ 95% RH, Non-condensing |
| Dimensions | |
| 148 mm x 76 mm x 39 mm (W x D x H) | |
