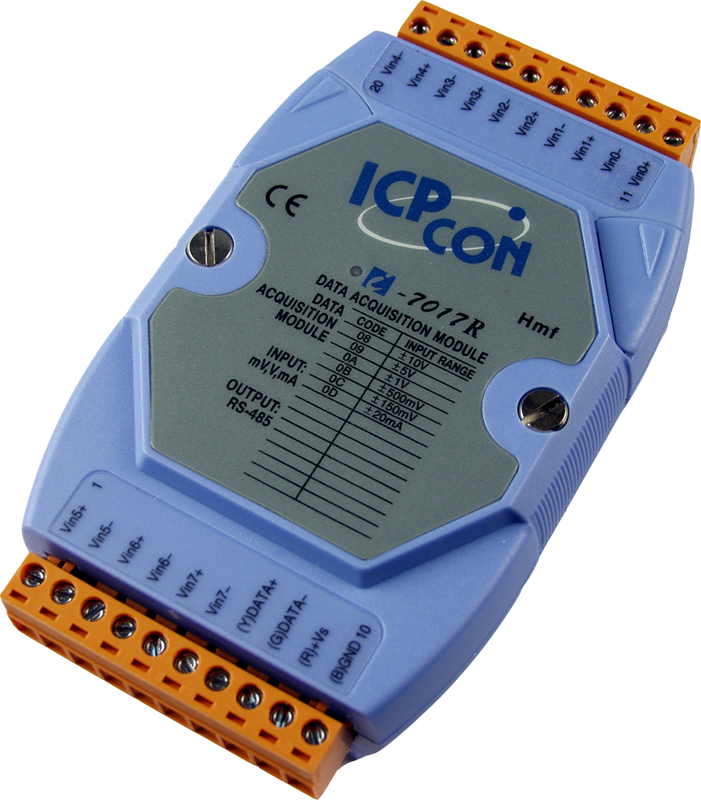

The I-7017R is an 8-channel analog input module featuring an exceptionally high-quality protection mechanism, including overvoltage protection up to 240 Vrms. It supports both voltage and current input types. The I-7017R is an upgraded version of the I-7017, with the key difference being its enhanced suitability for extremely harsh environments. The sampling rate of the I-7017R is adjustable, allowing users to choose between fast mode and normal mode. Additionally, the I-7017R offers 4 kV ESD protection and 3000 VDC intra-module isolation for added reliability. I-7017R comes with FREE EZ Data Logger Software.
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 8 Differential |
| Type | Voltage/Current |
| Range | I-7017R(-G): ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 resistor) I-7017R-A5: ±50 V, ±150 V |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR |
| Sampling Rate | I-7017R(-G): Normal Mode: 10 Hz / Fast Mode: 60 Hz I-7017R-A5: Normal Mode: 10 Hz / Fast Mode: 50 Hz |
| Input Impedance | Voltage: I-7017R(-G): 2 M I-7017R-A5: 290 k |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | I-7017R(-G): 240 Vrms I-7017R-A5: ±200 VDC |
| Individual Channel Configuration | Yes, only for I-7017R(-G) |
| Open Wire Detection | 4 ~ 20 mA, only for I-7017R(-G) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | I-7017R(-G): 1.3 W I-7017R-A5: 1.6 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
