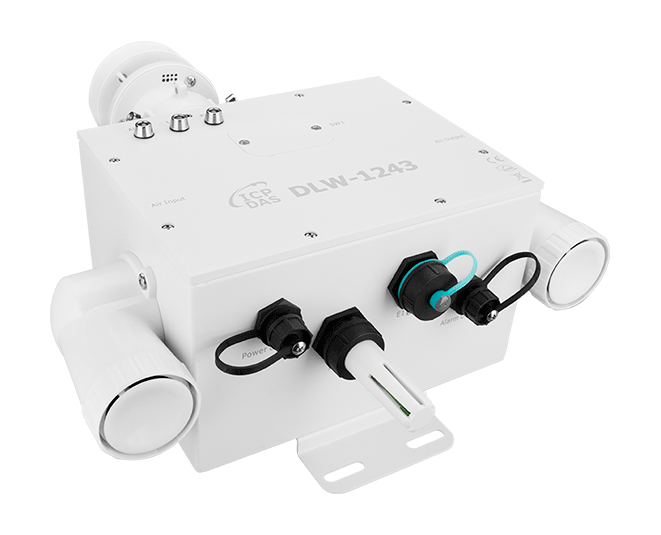

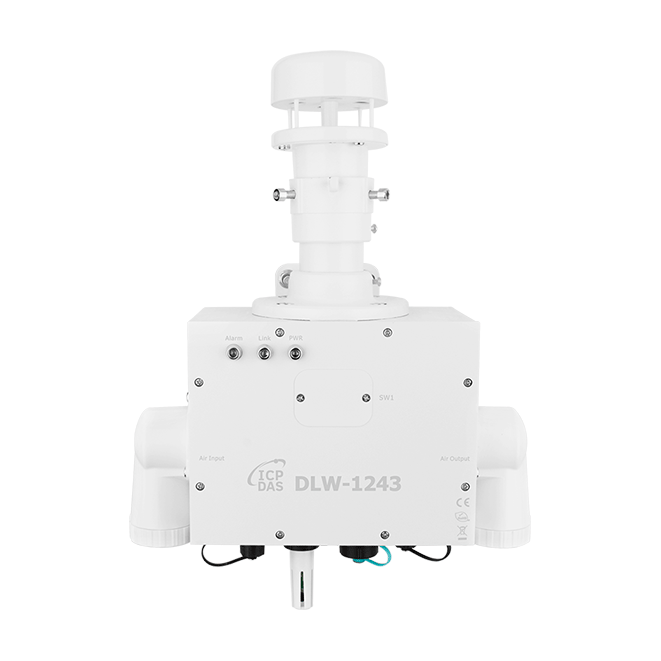

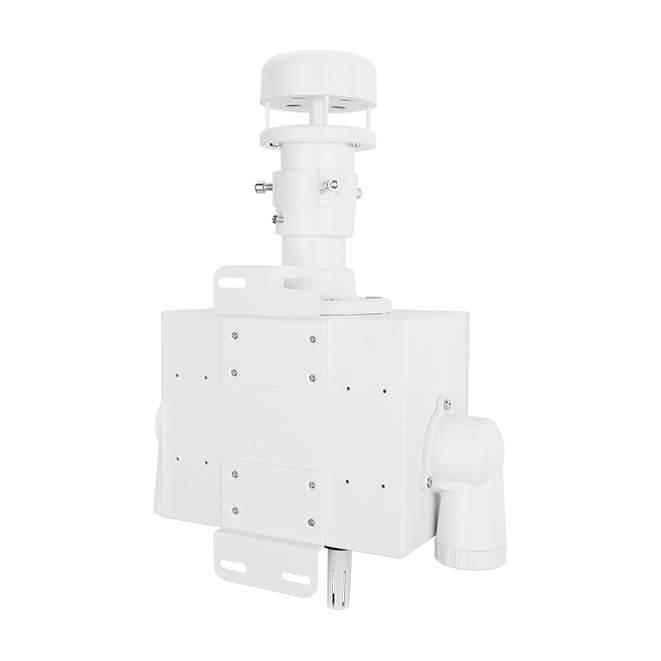

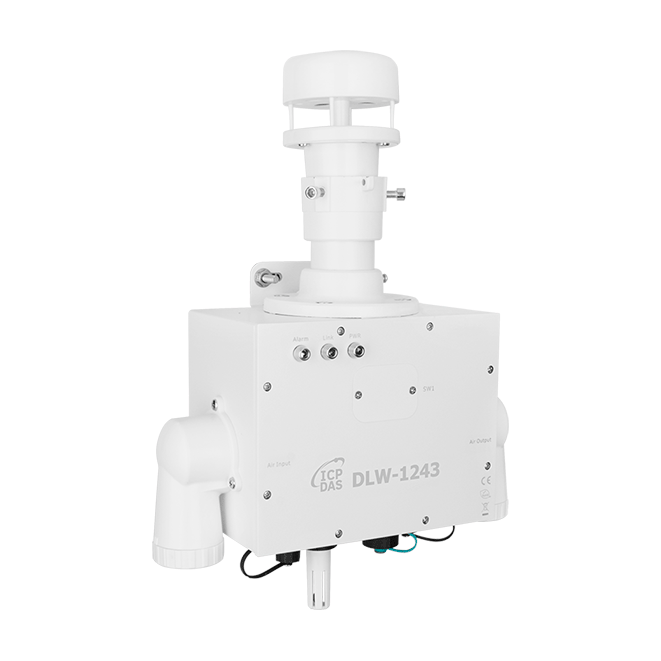

Mini Automated Surface Observation Area:
The DLW-1243 Mini Weather Station is designed for real-time monitoring of environmental conditions and hazardous gases. It measures temperature, humidity, wind speed, wind direction, carbon monoxide (CO), carbon dioxide (CO2), and ammonia (NH3).
Its integrated gas sensors provide a compact solution for monitoring gas concentrations in agricultural, industrial, and outdoor environments. The collected information can help operators evaluate air quality conditions and identify changes in gas concentrations.
Positive and Negative Pressure Ventilation System:
The DLW-1243 features an active ventilation system that creates a pressure difference between the inside and outside of the module.
This ventilation system promotes airflow and helps distribute incoming air evenly around the gas sensors, supporting consistent and accurate measurements of CO, CO2, and NH3 concentrations.
IP Protection Rating:
The DLW-1243 features an IP54 protection rating for the fan intake and output, providing protection against dust ingress and water splashes.
The device also includes waterproof connectors for RS-485 and Ethernet communication, including Power over Ethernet (PoE), to support reliable operation in suitable outdoor and industrial environments.
Replaceable Filter Patch:
The DLW-1243 features replaceable intake and output filters designed to reduce dust and debris entering the ventilation system.
The 45 PPI filter sponge helps prevent dust particles and other contaminants from reaching the internal gas sensor components, helping extend their service life.
During routine maintenance, the filter patches can be replaced to maintain proper airflow and reduce maintenance requirements.
Smart greenhouses rely on accurate environmental monitoring to maintain suitable growing conditions for plants. The DLW-1243 Mini Weather Station measures temperature, humidity, wind speed, wind direction, carbon monoxide (CO), carbon dioxide (CO2), and ammonia (NH3).
CO2 monitoring is particularly useful in greenhouse environments, where carbon dioxide concentrations can influence plant growth. Ammonia monitoring can also provide valuable information in agricultural facilities where fertilizers, organic materials, or livestock waste may contribute to NH3 concentrations.
The collected data can be integrated into an IoT monitoring system to help operators evaluate environmental conditions and make informed decisions about ventilation and agricultural management.
When combined with devices such as the PM-3133 Smart Power Meter and WISE-5231M-4GE Edge Controller, environmental and energy consumption data can be transmitted to a central monitoring system for analysis and management.
Environmental and gas monitoring are important for water management facilities, pumping stations, and other remote infrastructure.
The DLW-1243 can collect environmental information such as temperature, humidity, wind speed, and wind direction, along with CO, CO2, and NH3 concentrations.
When integrated with the WISE-5231M-4GE Edge Controller and compatible sensors, environmental data can be transmitted alongside water quality, flow rate, water level, and valve monitoring information to a central control system.
This integration allows operators to remotely monitor environmental conditions and gas concentrations across multiple facilities, supporting maintenance planning, operational awareness, and responses to changing environmental conditions.
Marine transportation and commercial ports require reliable environmental monitoring to support operational planning and air quality management.
The DLW-1243 measures wind speed, wind direction, temperature, humidity, carbon monoxide (CO), carbon dioxide (CO2), and ammonia (NH3).
These measurements can help port operators monitor environmental conditions and selected gas concentrations associated with surrounding transportation, industrial, and cargo-handling activities.
By integrating the collected data into a centralized monitoring system, operators can analyze environmental trends and support air quality management initiatives at commercial ports and marine facilities.
The DLW-1243 collects environmental information, including temperature, humidity, wind speed, wind direction, CO, CO2, and NH3 concentrations.
These measurements can help agricultural operators evaluate environmental conditions that may affect greenhouse operations, livestock facilities, fertilizer management, and general farming activities.
CO2 monitoring provides useful information for greenhouse environments, while NH3 monitoring can help identify elevated ammonia concentrations associated with agricultural processes and livestock operations.
When combined with the WISE-5231M-4GE Edge Controller and compatible M-7000 data acquisition modules, the collected information can be integrated with additional environmental sensors across remote agricultural locations.
This combination supports centralized data collection, monitoring, and management to help farmers make informed decisions about agricultural operations and environmental conditions.
Industrial facilities benefit from monitoring environmental conditions and gas concentrations to support operational awareness and environmental management.
The DLW-1243 measures temperature, humidity, wind speed, wind direction, carbon monoxide (CO), carbon dioxide (CO2), and ammonia (NH3).
These measurements can help industrial operators monitor selected gas concentrations in suitable outdoor environments near factories, warehouses, agricultural processing facilities, and other industrial locations.
When integrated with the WISE-5231M-4GE Edge Controller, collected environmental and gas data can be transmitted to remote monitoring systems for analysis, configurable alarm notifications, and operational decision-making.
The DLW-1243 provides environmental monitoring information but is not intended to replace dedicated industrial gas safety detection systems or regulatory emissions monitoring equipment.
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module, Communication (Programmable) |
| LED Indicators | |
|---|---|
| Status | PWR: Green for normal Operation Link: Green for the Ethernet-linked Alarm: Red for an alarm condition |
| Temperature Measurement | |
|---|---|
| Range | -40 ~ +80 Degress celscius |
| Resolution | 0.1Degress celscius |
| Accuracy | ±0.5Degress celscius |
| Humidity Measurement | |
|---|---|
| Range | 0 ~ 100% |
| Resolution | 0.1% |
| Accuracy | ±5% |
| Life Time | 10 years |
| CO Measurement | |
|---|---|
| Range | 0 ~ 1000 ppm (Electrochemical) |
| Resolution | 1 ppm |
| Accuracy | ±5% |
| Response Time | 30 seconds |
| Warm-up Time | 60 seconds |
| Life Time | 5 years |
| CO2 Measurement | |
|---|---|
| Range | 0 ~ 9999 ppm (NDIR) |
| Resolution | 1 ppm |
| Accuracy | ±3% |
| Response Time | 120 seconds |
| Warm-up Time | 300 seconds |
| Life Time | 15 years |
| NH3 Measurement | |
|---|---|
| Range | 0 ~ 100 ppm (Electrochemical) |
| Resolution | 1 ppm |
| Accuracy | ±5% |
| Response Time | <40seconds |
| Warm-up Time | 60 seconds |
| Life Time | 2 years |
| Illuminance Measurement | |
|---|---|
| Range | 0 ~ 200,000 Lux |
| Resolution | 1 Lux |
| Accuracy | ± 5% |
| System | |
|---|---|
| Alarm | Weather Monitoring (Wind Speed, Wind Direction, RH/T),Particulates, Gas Monitoring (CO, CO2, NH3,) |
| Real Time Clock | Yes |
| Data Logger | Yes |
| Relay Output | PhotoMOS Relay, Form Ax4, SPST 100VDC @ 1A |
| Sea Level | |
|---|---|
| Range | -50 ~ 9000 m |
| Resolution | 0.1 m |
| Atmospheric Pressure | |
|---|---|
| Range | 300 ~ 1200 hPa |
| Accuracy | 1 hPa |
| Resolution | 0.1 hPa |
| Wind Speed | |
|---|---|
| Rnge | 0 ~ 40 m/s |
| Accuracy | 5% |
| Resolution | 0.01 m/s |
| Wind Direction | |
|---|---|
| Range | 0 ~ 359° |
| Accuracy | <3° |
| Resolution | 1° |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP and MQTT |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Protocol | Modbus RTU |
| Power | |
|---|---|
| Consumption | PoE: 3.33 W Max Non-PoE: 3.01 W Max |
| Powered from PoE | IEEE 802.3af, Class 1 (48 V) |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 288 x 122 x 389 (W x L x H) |
| Installation | U-bolt or Wall Mounting |
| Ingress Protection Rating | IP67 |
| Weight | 2.45 KG |
| Environment | |
|---|---|
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -30 to +75°C |
| Humidity | 10% to 90% RH, Non-condensing |
