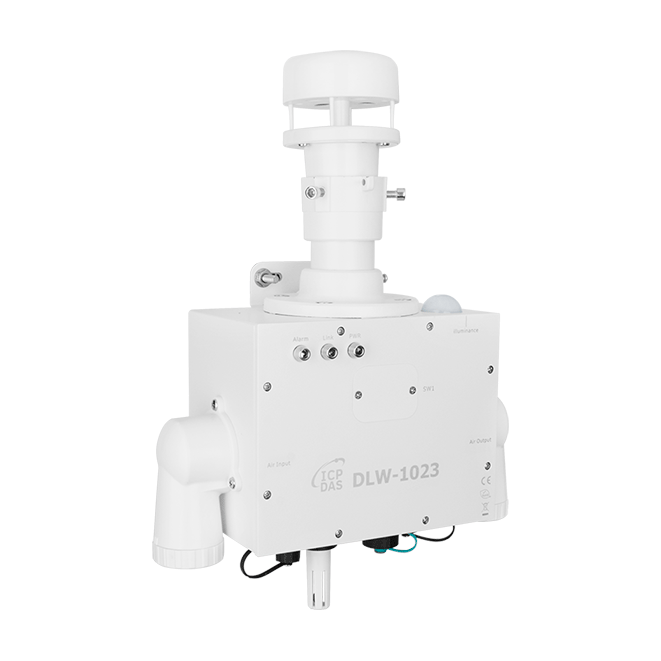

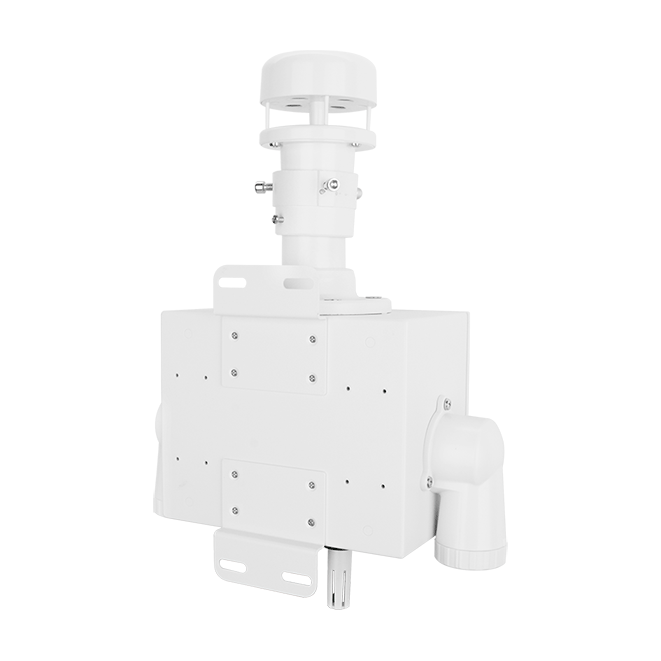

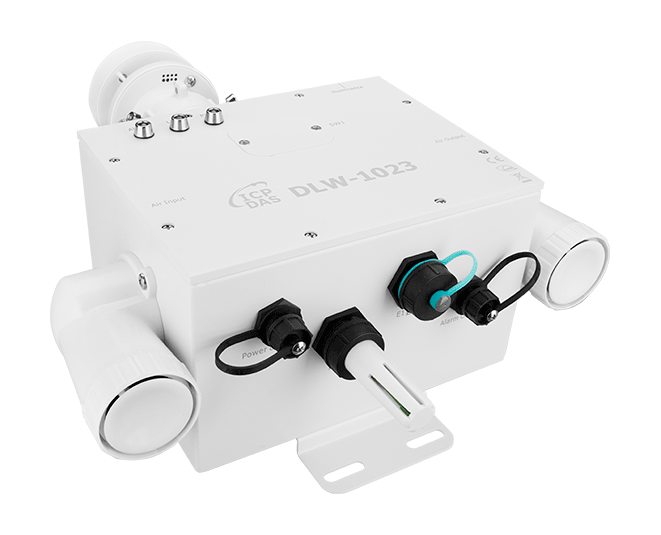

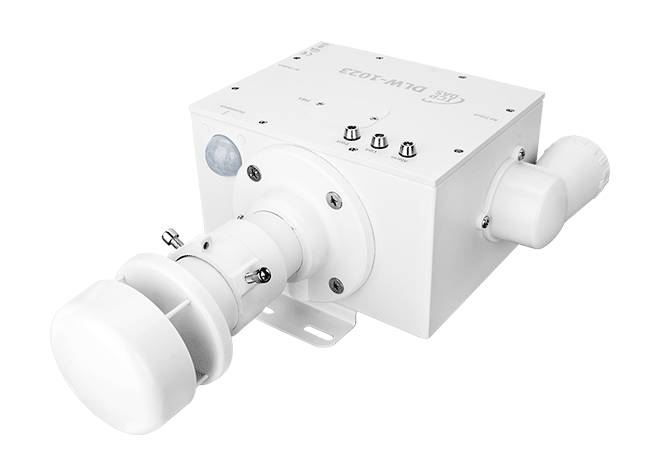

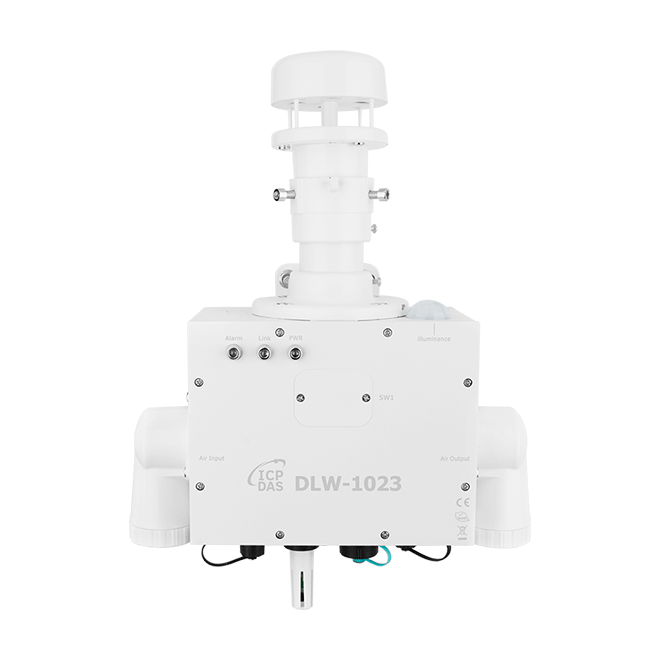

DLW-1023

$4,799.00
Mini Weather Station with Air Quality and Particulate Matter Monitoring. Features a built-in data logger and measures temperature, humidity, wind speed, wind direction, atmospheric pressure, sea level, illuminance, particulate matter (PM1, PM2.5, PM10), carbon monoxide (CO), and carbon dioxide (CO2). Communicates over Modbus RTU, Modbus TCP, and MQTT. Includes Ethernet, PoE, and RS-485 interfac...
Availability: IN STOCK | FASTEST DELIVERY : Saturday, Nov 28 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+

Introduction


• Combination of the IoT & agricultural technology

Smart greenhouses rely on accurate environmental monitoring to maintain suitable growing conditions for plants. The DLW-1023 Mini Weather Station measures temperature, humidity, wind speed, wind direction, atmospheric pressure, and illuminance. It also monitors particulate matter (PM1, PM2.5, and PM10), carbon monoxide (CO), and carbon dioxide (CO2) to provide additional information about air quality.

The collected data can be integrated into an IoT monitoring system to help operators evaluate greenhouse conditions and make informed decisions about ventilation, environmental management, and crop growth.

When combined with devices such as the PM-3133 Smart Power Meter and WISE-5231M-4GE Edge Controller, environmental and energy consumption data can be transmitted to a central monitoring system for analysis and management.


• Data Management Solution for Multiple Stations

Weather and environmental monitoring are important for water management facilities, pumping stations, and other remote infrastructure.

The DLW-1023 can collect weather information such as wind speed, wind direction, temperature, humidity, and atmospheric pressure, along with particulate matter and CO/CO2 concentrations.

When integrated with the WISE-5231M-4GE Edge Controller and compatible sensors, environmental data can be transmitted alongside water quality, flow rate, water level, and valve monitoring information to a central control system.

This integration allows operators to remotely monitor environmental conditions, analyze trends, and make informed decisions about facility operations and maintenance.


• Air quality and weather data collecting solution for marine affairs and ports

Marine transportation and commercial ports require reliable environmental monitoring to support operational planning and air quality management.

The DLW-1023 measures wind speed, wind direction, temperature, humidity, atmospheric pressure, and illuminance. It also monitors particulate matter (PM1, PM2.5, and PM10), carbon monoxide (CO), and carbon dioxide (CO2).

These measurements can help port operators observe weather conditions and airborne pollutant concentrations associated with surrounding transportation and industrial activities.

By integrating the collected information into a centralized monitoring system, operators can analyze environmental trends and support air quality management initiatives at commercial ports and marine facilities.


• Large scale farming

The DLW-1023 collects environmental information, including temperature, humidity, wind speed, wind direction, atmospheric pressure, illuminance, particulate matter, CO, and CO2 concentrations.

These measurements can help agricultural operators evaluate weather conditions and air quality factors that may affect crop growth, greenhouse environments, and general farming operations.

CO2 monitoring is particularly useful in greenhouse applications where maintaining suitable carbon dioxide concentrations can support plant growth.

When combined with the WISE-5231M-4GE Edge Controller and compatible M-7000 data acquisition modules, the collected information can be integrated with additional environmental sensors across remote agricultural locations.

This combination supports centralized data collection, monitoring, and management to help farmers make informed decisions about agricultural operations.


• Industrial exhaust emissions monitoring

Industrial facilities benefit from monitoring environmental conditions and airborne pollutant concentrations to support operational awareness and air quality management.

The DLW-1023 measures temperature, humidity, atmospheric pressure, illuminance, wind speed, and wind direction. It also monitors particulate matter (PM1, PM2.5, and PM10), carbon monoxide (CO), and carbon dioxide (CO2).

The device can be installed in suitable outdoor industrial environments to help monitor surrounding air quality and weather conditions near factories, warehouses, transportation facilities, and other industrial locations.

When integrated with the WISE-5231M-4GE Edge Controller, environmental data can be collected and transmitted to remote monitoring systems for analysis, alarm notifications, and operational decision-making.

Specifications

CPU Module
Watchdog Timer Yes, Module, Communication (Programmable)
LED Indicators
Status PWR: Green for normal Operation
Link: Green for the Ethernet-linked
Alarm: Red for an alarm condition
System
Alarm Weather Monitoring (Wind Speed, Wind Direction, Pressure, Illuminance, Sea Level, RH/T),
Particulates, Gas Monitoring (PM2.5, CO, CO2)
Real Time Clock Yes
Data Logger Yes
Relay Output PhotoMOS Relay, Form Ax4, SPST 100VDC @ 1A
Temperature Measurement
Range -40 - +80 deg cel
Resolution 0.1 deg Cel
Accuracy 0.5 deg Cel
Humidity Measurement
Range 0 - 100%
Resolution 0.1%
Accuracy 5%
Life Time 10 years
CO Measurement
Range 0 - 1000 ppm (Electrochemical)
Resolution 1 ppm
Accuracy 5%
Response Time 30 seconds
Warm-up Time 60 seconds
Life Time 5 years
CO2 Measurement
Range 0 - 9999 ppm (NDIR)
Resolution 1 ppm
Accuracy +-3%
Response Time 120 seconds
Warm-up Time 300 seconds
Life Time 15 years
Illuminance Measurement
Range 0 - 200,000 Lux
Resolution 1 Lux
Accuracy +- 5%
PM1/PM2.5/PM10 Measurement
Range 0 - 1000 ug/m3
Resolution 1 ug/m3
Accuracy +-10%
Response Time 1 seconds
Warm-up Time 20 seconds
Life Time 5 years
Sea Level
Range -50 - 9000 m
Resolution 0.1 m
Atmospheric Pressure
Range 300 - 1200 hPa
Accuracy 1 hPa
Resolution 0.1 hPa
Wind Speed
Rnge 0 - 40 m/s
Accuracy 5%
Resolution 0.01 m/s
Wind Direction
Range 0 - 359deg cel
Accuracy <3 deg celsius
Resolution 1deg celsius
Ethernet
Ports 10/100 Base-TX, 8-Pin RJ-45 x1
Access Control Password and IP Filter
Protocol Modbus TCP and MQTT
COM Ports
Ports 1 x RS-485
Baud Rate 1200 0 115200 bps
Protocol Modbus RTU
Power
Consumption PoE: 3.33 W Max
Non-PoE: 3.01 W Max
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block +12 to +48 VDC
Mechanical
Dimensions (mm) 288 x 122 x 389 (W x L x H)
Installation U-bolt or Wall Mounting
Ingress Protection Rating IP54
Weight 2.45 KG
Environment
Operating Temperature -20 to +50 deg cel
Storage Temperature -30 to +75 deg cel
Humidity 10% to 90% RH, Non-condensing
