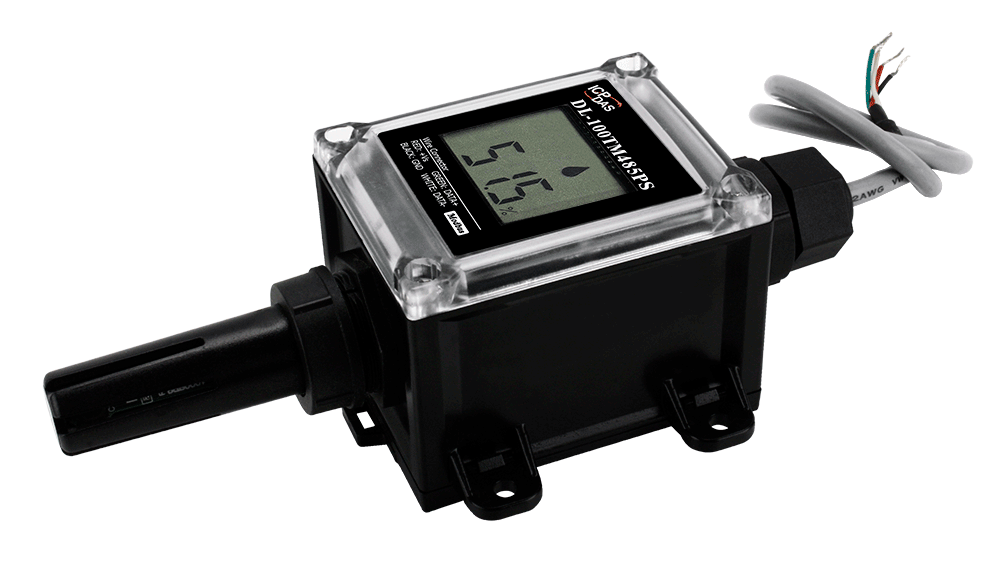

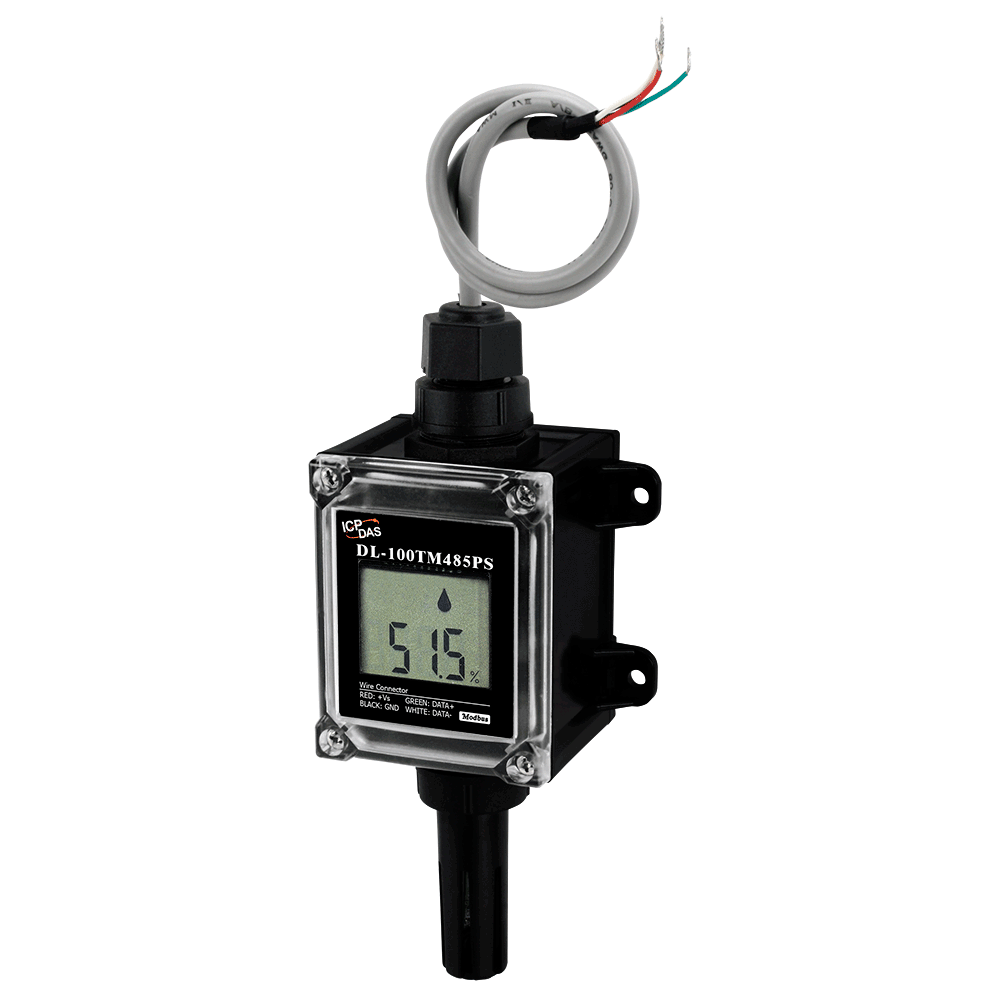

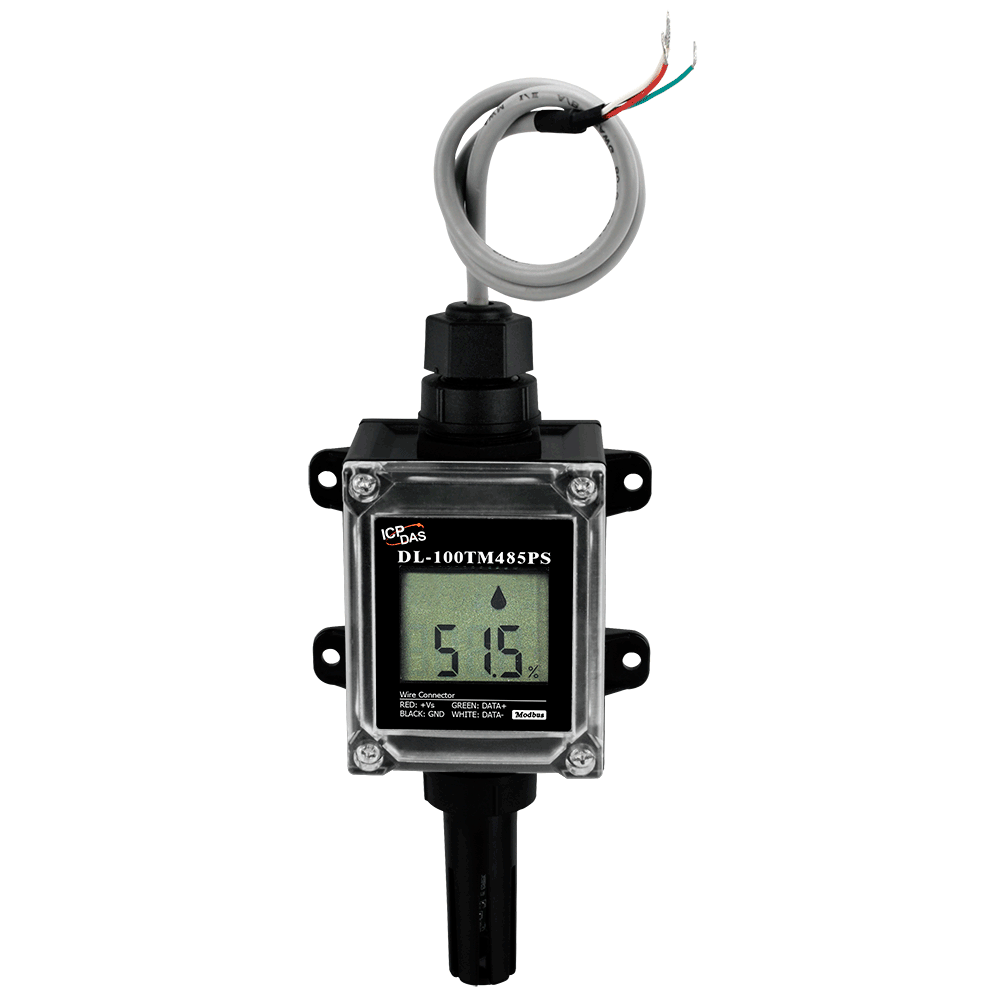

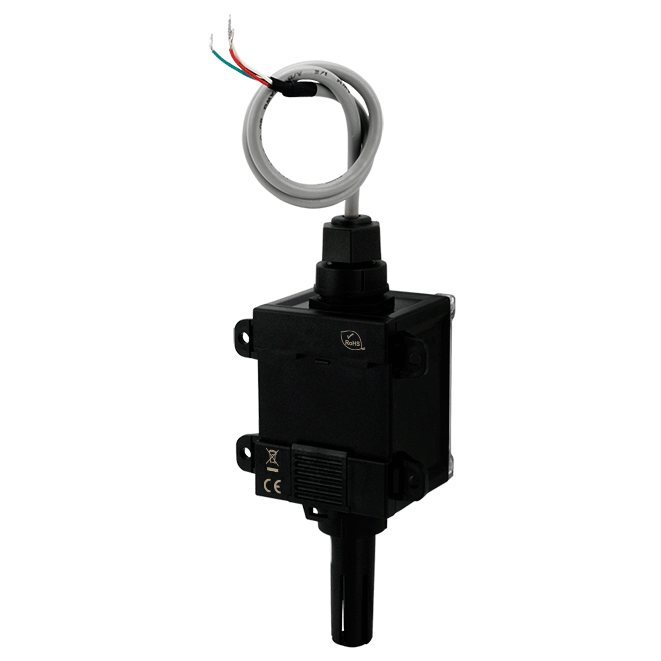

DL-100TM485PS

$359.00

The device features measurement ranges of -20 to +60 degrees Celsius and 0 to 100 percent RH, with an accuracy of plus or minus 0.4 degrees Celsius and 3.0 percent RH for the non-P version, and plus or minus 0.3 degrees Celsius and 1.8 percent RH for the P version. It includes an LCD display that shows temperature, humidity, dew point, and module ID, supports a 10 to 30 VDC power input, is IP66...

Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	Internet of Things (IoT)
Review:	Write your review
Resources:	User's Manual Data Sheet Quick Start Error Codes DL Utility Modbus Master Tool

The DL-100TM485S, DL-100TM485PS, DL-100TM485S-W, and DL-100TM485PS-W are temperature and humidity data logger modules equipped with an RS-485 communication interface and an LCD display for viewing temperature, humidity, dew point, and module ID information. These modules can store up to 4088 temperature and humidity records in their internal memory.

They come with the DL Utility software, which supports installation, configuration, data retrieval, and visualization through detailed charts that can be exported to Excel.

ICP DAS DL-100TM485P temperature and humidity data logger free utility

ICP DAS DL-100TM485P temperature and humidity data logger utility data logging graph

Applications

Pharmaceuticals Transportation
Blood Stations, Pharmacies
Food and Beverage Industry (HACCP Systems)
Building Automation
Energy Management
Warehouses
Museums, archives, galleries

Application Image DL-100TM485P Temperature and Humidity Data Logger with IP66 Waterproof and RS-485 Interface

Specifications

Data Logger
Mode	Overwrite or stop logging when storage space is full
Time Interval	10 seconds to 1 day
Overwrite Limitation	1,000,000 cycles
Max. Records	4088 temperature and humidity records

Display
LCD Information Displayed	Temperature (°C and °F), Humidity (RH), Module ID

Temperature Measurement
Range	-20 to +60 °C (-4 to +140 °F)
Resolution	0.1 °C
Accuracy	Typical: ±0.3 °C
Precision	±0.1 °C

Humidity Measurement
Range	0 to 100% RH
Resolution	0.1%
Accuracy	Typical: ±1.8% RH @ 10 to 90% RH
Precision	±0.1%

Dew Point
Range	Calculated using temperature and relative humidity
Resolution	0.1 °C

COM Ports
Ports	1 x RS-485, Non-isolated
Baud Rate	1200 to 115200 bps
Data Format	(N, 8, 1)
Protocol	Modbus RTU

Power
Input Range	+10 to +30 VDC
Consumption	0.15 W

Mechanical
Dimensions (mm)	82 x 172 x 55 (W x L x H)
Installation	DIN-Rail; Wall mount
Ingress Protection Rating	IP66
Cable Length	380 mm

Environment
Operating Temperature	-20 to +60 °C
Storage Temperature	-30 to +80 °C
Humidity	5 to 95% RH, Non-condensing
