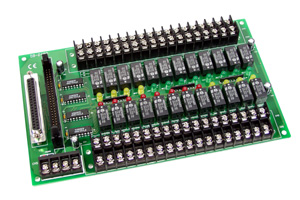

DB-24PR/12/DIN (with DIN-Rail mounting kit)

The DB-24R consists of 24 form C, electromechanical relays for efficient switching of load by programmed control. The contact of each relay can control a 0.5 A /110 V load or 1A / 24VDC. The relay is energized by applying a 5 voltage signal to the appropriate relay channel on the 50-pin Opto-22 compatible connector or D-Sub 37 connector . Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated . This board needs a +12VDC or +24VDC external power supply to avoid overloading your PC’s power supply.

• 24 Form C Relays (SPDT)
• SPST: Single Pole Double Throw
• OPTO-22 Compatible Connector
• Connects directly to:
  • DIO-24
  • DIO-48
  • DIO-144
  • OPTO-22 compatible board or any 722 or 724 series board
• Switch up to 0.5A at 120 VAC
• Switch up to 1A at 24VDC
• On board relay driver circuits
• LEDs indicated relay status
• Screw terminals for easy field wiring
• Applications:
  • On/off control
  • Energy management
  • Test Automation
  • Process Control
