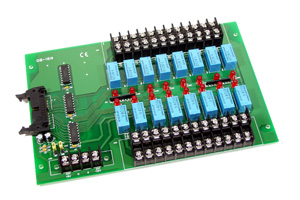

The DB-16R is a 16 channel Relay Output Board. It consists of 16 form c relays for efficient switching of load by programmed control. It is connector and functionally compatible with our 785 series boards with industrial type terminal blocks. The DB-16R can be used by our A-82x board or any other compatible board. The relays are energized by applying a 5 volt signal to the appropriate relay channel on the 20-pin flat cable connector. Sixteen enunciator LEDs, one for each relay, light up when their associated relay is activated . This board provides a screw terminial for power to avoid overloading your PC's power supply.
