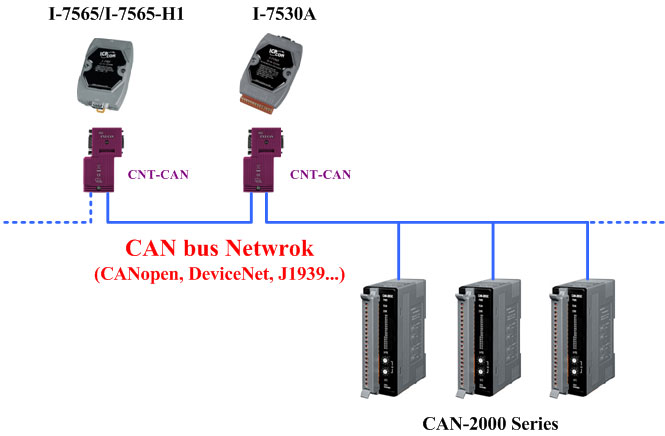

The Controller Area Network(CAN) is a serial communication way, which efficiently supports distributed real-time control with a very high level of security. The CNT-CAN connector is used to connect a CAN bus node to the CAN bus line featuring quick-connect technology, making the stripping of bus conductors superfluous. The connector is quick to install, and has a plastic housing and integrated terminating resistors. Anyway the CNT-CAN could link a CAN device to a CAN bus line easily and fast.
Cable outlet |
90° cable outlet |
Connector |
9-pin, D-Sub female connector |
Programming connection |
9-pin, D-Sub male connector |
Baud rate |
10kbps ~ 1Mbps |
Operating temperature |
-25&8451; ~ 75&8451; |
Storage temperature |
-30&8451; ~ 80&8451; |
Humidity |
10 ~ 90% RH, non-condensing |
