| H-PLANE FIELD PATTERNS | E-PLANE FIELD PATTERNS |
 |
 |
| Frequency | 2.4~2.5GHz |
| Polarization | Linear |
| V.S.W.R. | 1 : 1.5 (Max.) |
| Impedance | 50 Ohms ±5Ω |
| Gain | 18 dBi |
| Power handling | 10W (Max.) |
| HPBW / horizontal | 15° |
| HPBW / vertical | 15° |
| Operating Temperature | -20°C ~ 60°C |

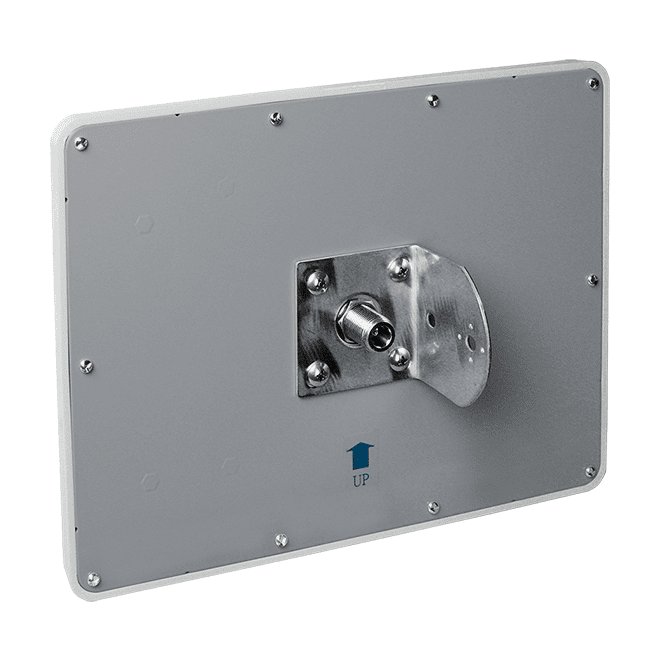

| Connector Type | SMA Male |

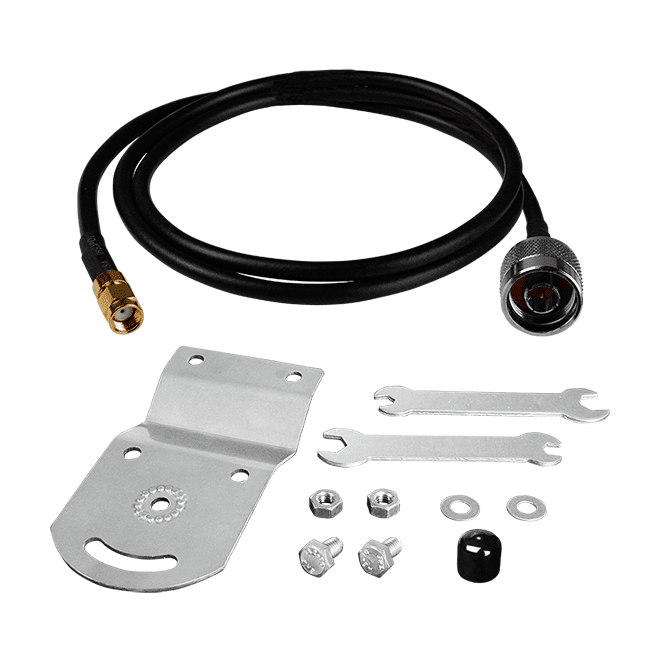

| Cable | RG-58, 100 cm |
| Deminsions (L x W x H) | 270 mm x 205 mm x 15 mm |
| Weight | 1000 g ±10 |

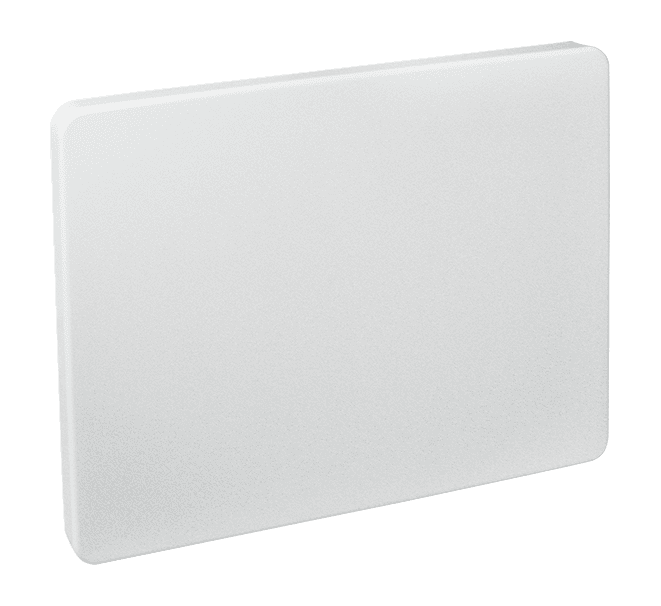

| Radome material | ABS |
