AD-EZ-SW

Features:

• Supports DCON, Modbus RTU, Modbus Ascii, Modbus TCP(supports IP and Domain name) protocols
• Data logger supports mutiple COM Ports and TCP/IP connections
• Supports Virtual Channel definition
  User can operate the data into the virtual channel by channel tag names easily. For example: VC3 = (AI_2 + AI_3) / 2
• Supports Control Logic (VB Script)
  User can edit the script to set the output values or to caculate data into virtual channels. You can get/set the channel values by channel tag names. For example : If AI_2 > 50 Then DO_3 = 1
• Supports Alarm Notifier (by sending SMS or E-Mail)
  User can set the engineer's cell phone number and email address. When the channel value over the alarm value or back to normal, the contact messanger will send a message by SMS (using GSM Modem with PDU mode supported) or by E-Mail(using ethernet).
• Flexible module configuration
  Each module and I/O point can have different description and color
• Flexible workgroup configuration
  Each channel can be assigned to any workgroup.
• Real time data trend (with zoom in and zoom out)
  Each trend line can store more than 86400 records.

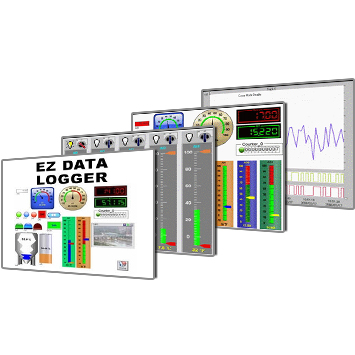

• Layout view
  User can set back picture and drag-drop I/O points to the mapping place. User can also change the channel layout object as Linear Gauge, Angular Gauge, Toggle, Number LED.....
• IP Camera Viewer
  User can add an IP camera's web address, and then add it to group. Then the layout display will show the web page in a sub window.
• Access database supported
  The database also can be exported to Excel file or CVS file
• Support Remote SQL Server and MySQL
  Users can log data to the SQL Server or MySQL. People can query the data on an aspx page by IE browser.
  The demo shows how to program a ASP .NET page to query the SQL Server data.

• Reporter
  Can print the trend line or data from the database
• High/Low alarm with audio warning
  Each AI channel can have its own high/low limitation. Once the AI value over high limitation or below low limitation, the alarm light will be triggered with audio. The alarm status will keep warning till users switch off the alarm light.
• Can search for DCON modules and M7000 serial modules
  For DCON modules,7000, 87K, 8000 modules can be searched.
  For Modbus RTU modules,M7000 serial modules can be searched and automatic setting the gain and offset.
• Value scaling
  Set gain and offset can scal analog values from volt or amp unit to another physical measurement unit.
  Include calculating function( given 2 points to calculate the gain and offset).
  For example: rpm for rotation, kg for weight.

• Support 3 level account
• Programming skill needless
• All operation are done by click mouse and enter value.
