The ET-7000/PET-7000 series, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.
Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 series offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 series also supports Modbus/TCP protocol that makes perfect integration to SCADA software.
Furthermore, P/ET-7000 series features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 series modules a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis, Testing Equipment.

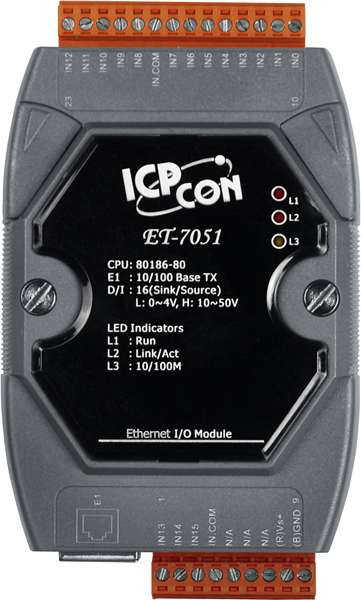

ET-7051 comes with FREE EZ Data Logger Software.
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet |
| Digital Input/Counter | |
|---|---|
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 500 Hz |
| Min. Pulse Width | 1 ms |
| Input Impedance | 10 K |
| Overvoltage Protection | +70 VDC |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 2.1 W (max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |

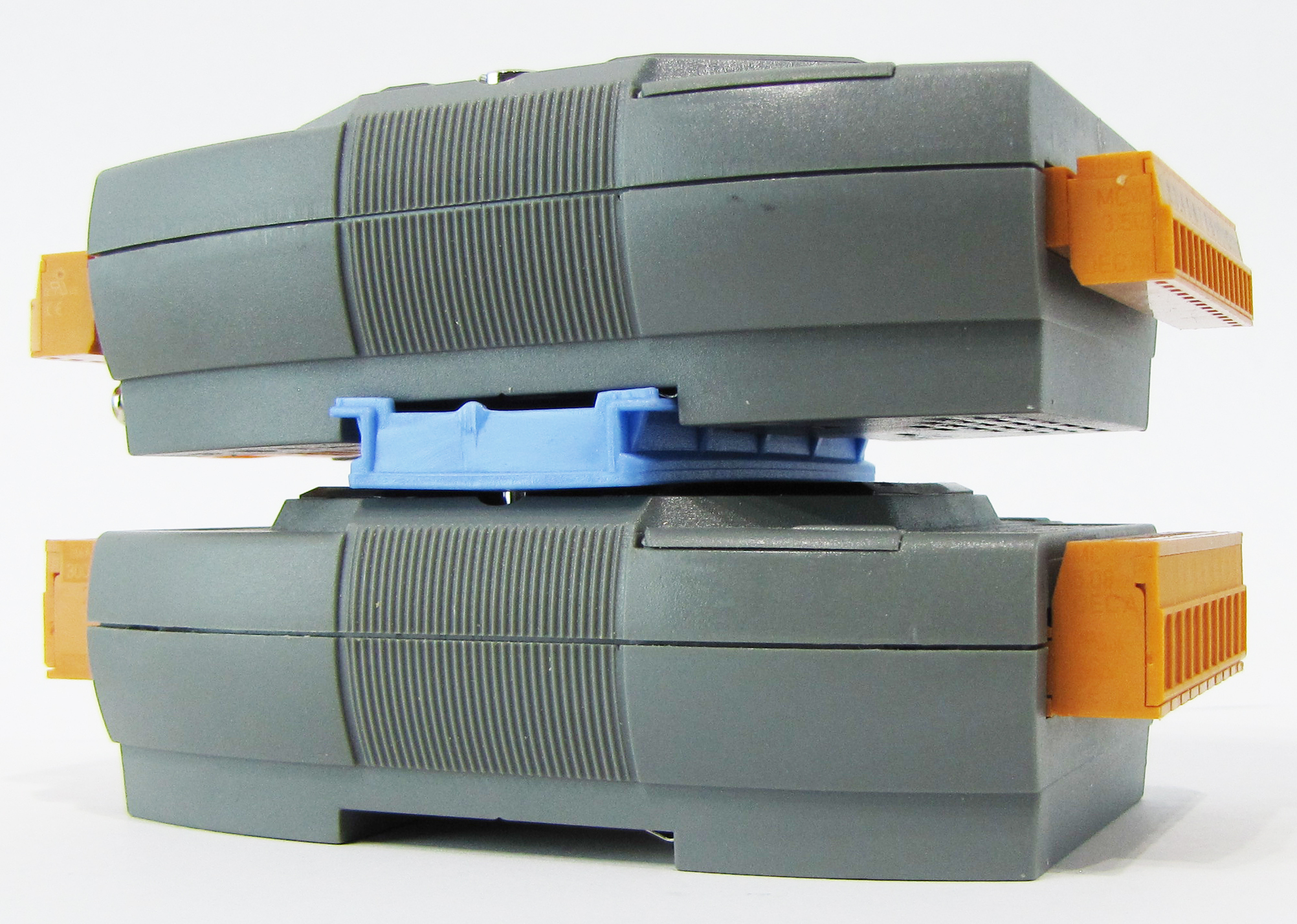

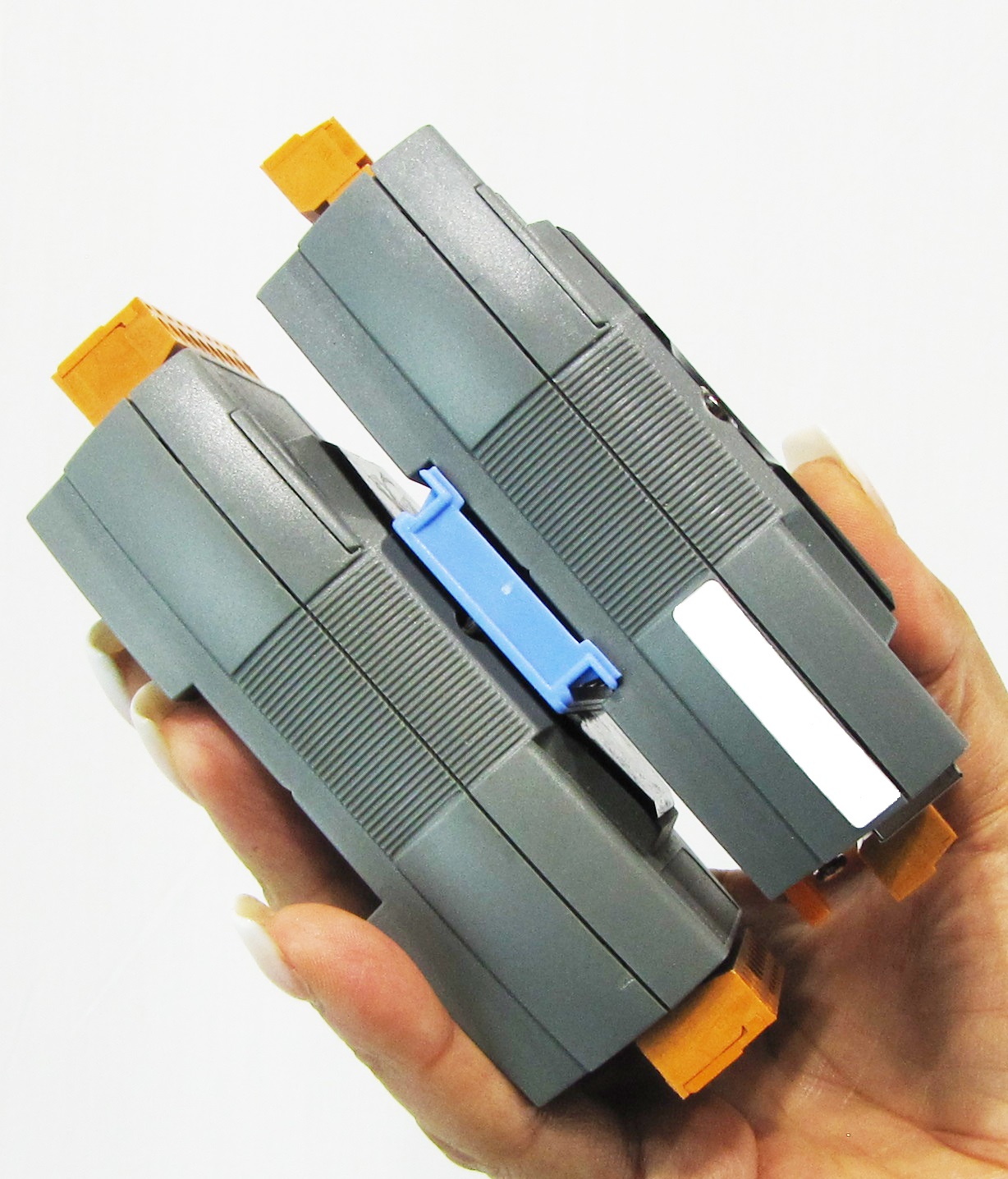

| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
