A-822PGH/S

$0.00

125KS/s 16 Channel, 12 bit Analog Input, 2 Channel uni-polar/bi-polar, 12 bit Analog Output with 16 Digital Input/16 Digital Output. (High Grain). Includes Daughter Board DB-8225

Product Unavailable

Share On:
Categories:	ISA Data Acquisition Boards \| ISA Multi-function
Review:	Write your review
Resources:	User's Manual Quick Start Software Software Manual Win 2000 Software Manual Win 98 Software Manual DOS Hardware CE Certification

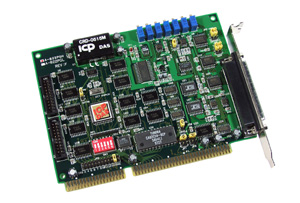

A-822PGH/L is a 12-bit multifunction analog and digital I/O board for PC/AT compatible computers. A-822PGH/L offers 16 single-ended or 8 differential analog inputs and two channels of analog output with 12-bit resolution. A-822PGH/PGL has 16 digital input, 16 digital output, and one timer/counter channel. A-822PGH provides gains of 0.5, 1, 5, 10, 50, 100, 500, and 1000 while A-822PGL provides gains of 0.5, 1, 2, 4, and 8. Maximum sampling rate is 125 K samples/s. DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.

12-bit A/D converter
12-bit D/A converter
16 single-ended or 8 differential input channels
125 k/s sampling rate
Two 12-bit analog output channel
Analog Output Range : 0 ~5V, 0 ~10V
Software programmable gain :
A-822PGL (Low Gain Version ) : 0.5, 1, 2, 4, 8
A-822PGH(High Gain Version) : 0.5, 1, 5, 10, 50, 100, 500, 1000
Interrupt handling
A/D Trigger modes :
- Software Trigger
- Pacer Trigge
- , External Trigger
- Event Trigger
A/D data transfer modes : polling , interrupt , DMA
16 digital input & 16 digital output
37 pin D-Sub connector
Software:
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- Toolkit for Labview 95/98
- Toolkit for Labview NT
- Toolkit for Labview 2000/XP
- ActiveX Control (OCX) 95/98
- ActiveX Control (OCX) NT
- ActiveX Control (OCX) 2000/XP
- Toolkit for LINUX
- Toolkit for DasyLab
Applications:
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
- FFT & frequency analysis
- Transient analysis
- Production tests
- Process control

Specifications

Analog Input
Channels	16 single-ended/8 differential
A/D Converter	12-bit, 8 μs conversion time
Sampling Rate	125 kS/s. max.
Over voltage Protection	Continuous +/-35 Vp-p
Input Impedance	10 MΩ/6 pf
Trigger Modes	Software, Pacer, External
Data Transfer	Polling, Interrupt, DMA
Accuracy	0.01 bit % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift	15 ppm/°C of FSR
Analog Output
Channels	2 independent
Resolution	12-bit
Accuracy	0.01% of FSR ± 1 LSB @ 25 °C, ± 10 V
Output Range	Unipolar: 0 ~ 5 V, 0 ~10 V Bipolar: +/-10 V
Output Driving	+/- 5 mA
Slew Rate	0.6 V/μs
Output Impedance	0.1 Ω max.
Operating Mode	Software
Digital Input
Channels	16
Compatibility	5 V/TTL
Input Voltage	Logic 0: 0.8 V max. Logic 1: 2.0 V min.
Response Speed	1.0 MHz (Typical)
Digital Output
Channels	16
Compatibility	5 V/TTL
Output Voltage	Logic 0: 0.4 V max. Logic 1: 2.4 V min.
Output Capability	Sink: 0.8 mA @ 0.8 V Source: -2.4 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)
Timer/Counter
Channels	3 independent
Resolution	16-bit
Compatibility	5 V/TTL
Input Frequency	10 MHz max.
Reference Clock	Internal: 2 MHz
General
Bus Type	ISA
I/O Connector	Female DB37 x 1 20-pin box header x 2
Dimensions (L x W x D)	163 mm x 124 mm x 22 mm
Power Consumption	960 mA @ +5 V
Operating Temperature	0 ~ 60 °C
Storage Temperature	-20 ~ 70 °C
Humidity	5 ~ 85% RH, non-condensing

Analog Input Range
Model	A-822PGL (Low-Gain)
Gain	0.5	1	2	4	8
Unipolar (V)		0 ~ 10	0 ~ 5	0 ~ 2.5	0 ~ 1.25
Bipolar (V)	+/- 10	+/- 5	+/- 2.5	+/- 1.25	+/- 0.625
Sampling Rate Max.	125 kS/s	125 kS/s	125 kS/s	125 kS/s	125 kS/s

Model	A-822PGH (High-Gain)
Gain	0.5	1	5	10	50	100	500	1000
Unipolar (V)		0 ~ 10		0 ~ 1		0 ~ 0.1		0 ~ 0.01
Bipolar (V)	+/- 10	+/- 5	+/- 1	+/- 0.5	+/- 0.1	+/- 0.05	+/- 0.01	+/- 0.005
Sampling Rate Max.	125 kS/s	125 kS/s	80 kS/s	80 kS/s	10 kS/s	10 kS/s	1 kS/s	1 kS/s
